A Guide to Fuel Injector Replacement for the 1994-2001 Dodge Caravan
Diagnose common fuel injector problems and learn how to choose the right replacement part for your minivan.
- Before replacing injectors, inspect the wiring harness near the exhaust for melting, as this is a very common failure point.
- A safety recall (00V268) was issued for leaking fuel rail O-rings on 3.3L/3.8L engines; always use new O-rings during replacement.
- For best results and to avoid performance issues, it is strongly recommended to replace all six fuel injectors as a matched set.
- Consider using high-quality OE-style brands like Bosch to ensure correct fuel flow rates and prevent potential compatibility issues with the van's computer.
Is Your Caravan's Fuel Injector Failing?
A bad fuel injector can cause problems that range from annoying to serious. Because they are so important for your engine's performance, catching the symptoms early can save you from bigger headaches. Look out for these common signs of failure.
Symptoms of a Bad Fuel Injector:
- Rough Engine Idle: The engine may shake or vibrate more than usual when stopped.
- Engine Misfires: You might feel a stumbling or hesitation from the engine while driving. This often triggers a flashing Check Engine Light.
- Poor Acceleration: The van may feel sluggish or lack power when you press the gas pedal.
- Worse Fuel Economy: If you're filling up the gas tank more often than you used to, a faulty injector could be leaking fuel into the engine.
- Check Engine Light: Specific codes like P0201 through P0206 point to an issue in an injector's electrical circuit. Misfire codes like P0300 or P0301-P0306 are also common.
- Gasoline Smell: A strong smell of raw fuel around the vehicle could mean an injector is leaking externally, which is a serious fire hazard.
- White Smoke from Exhaust: An injector stuck open can dump too much fuel into a cylinder, resulting in white smoke from the tailpipe that smells like gasoline.
Known Issue: Melted Fuel Injector Wiring Harness
A very common failure point on 1994-2001 Caravans (and other Chrysler minivans of this era) is the fuel injector wiring harness. The section of the harness that runs near the hot exhaust crossover pipe can melt over time. This causes the wires inside to short-circuit, which can lead to persistent injector error codes (like P0205), misfires, and injectors getting stuck open. Before replacing any injectors, always inspect this harness carefully. Sometimes, repairing the wiring is the real fix.
🎬 Watch this guide on how to repair the injector harness.NHTSA Recall for Fuel Leaks
There is a notable safety recall (NHTSA ID: 00V268) for some 1994-2001 Dodge Caravans equipped with the 3.3L and 3.8L engines. The recall addresses fuel injector rail O-rings that can degrade, causing fuel to leak. A fuel leak in the engine bay is a significant fire risk. While this is an old recall, it highlights a known weak point in the fuel system. When replacing your injectors, it is critical to use new, high-quality O-rings and lubricate them with clean engine oil before installation to ensure a proper seal.
Choosing the Right Aftermarket Fuel Injector
When it comes to aftermarket parts, not all brands are created equal. For a critical component like a fuel injector, quality matters for performance and longevity.
A Note on OEM Mopar vs. Aftermarket
Some mechanics and owners have found that certain Chrysler vehicles are very sensitive to fuel injector flow rates. Using aftermarket injectors that don't perfectly match the original Mopar specifications can sometimes cause the engine to run too rich, leading to error codes (like P0172/P0175), poor fuel economy, and a persistent Check Engine Light. While this issue is more documented on newer models, it's a risk to consider. 🎬 See why some aftermarket injectors cause rich fuel codes. If you want the highest chance of a trouble-free repair, using a premium brand known for OE-matching specs, like Bosch, is your safest bet.
Brand Quality Tiers

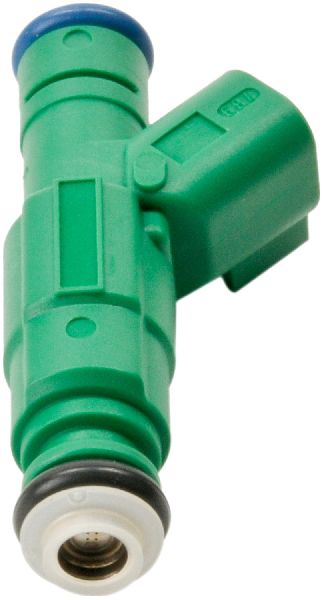

- Premium Aftermarket (e.g., Bosch): Bosch is an original equipment (OE) supplier for many car manufacturers and is known for its high-quality engineering and durability. Choosing a Bosch injector is the closest you can get to dealer quality, ensuring proper fit, flow rate, and long-term reliability.
- Reputable Aftermarket (e.g., Standard Ignition, Walker Products): Brands like Standard Motor Products (Standard Ignition) and Walker have a long history of producing reliable aftermarket parts. They aim to meet or exceed OEM specifications and are a solid choice for a balance of quality and cost.
- Value Brands (e.g., Replacement): These are often re-boxed or white-label products that offer the lowest price. While they can be a budget-friendly solution, their quality and manufacturing consistency can be uncertain. They may be a reasonable choice for an older, high-mileage vehicle, but be aware of the potential risks regarding flow rate and longevity.
| Part or Service | Estimated Cost |
|---|---|
| Shop Labor | $200 - $470 |
| New Aftermarket Injector (Single) | $40 - $150 |
| New Aftermarket Injector (Set of 6) | $150 - $430 |
| New OEM (Mopar) Injector (Single) | $120 - $180 (estimate) |
Frequently Asked Questions
Do I need to replace all fuel injectors at once?
It is highly recommended. Fuel injectors wear out over time, and their flow rates can change. If one has failed, others are likely not far behind. Replacing them all as a set ensures that each cylinder gets the same amount of fuel, leading to a balanced, smooth-running engine.
How difficult is it to replace the fuel injectors on a 1994-2001 Caravan?
It is a moderately difficult job for a DIYer. The main challenge is that you must remove the upper intake manifold (plenum) to get to the fuel rail and injectors. This involves disconnecting several electrical connectors, vacuum lines, and brackets. If you are comfortable with this level of disassembly, it is a manageable project.
🎬 Watch a step-by-step walkthrough of the injector replacement process.What is the difference between a clogged and a leaking injector?
A clogged injector won't spray enough fuel, leading to a lean condition, misfires, and lack of power. A leaking injector can either drip fuel when the engine is off (causing hard starts) or get stuck open, dumping too much fuel into the cylinder. A stuck-open injector is more dangerous, as it can wash oil off the cylinder walls and potentially damage the engine or catalytic converter.
Can I just clean my old fuel injectors?
While in-tank fuel injector cleaners can help with minor deposit buildup, they are not a fix for a failed injector. Professional off-car cleaning, where the injectors are removed and ultrasonically cleaned and tested, can be effective. However, given the labor to remove the injectors, and the potential for electrical failure, installing new aftermarket injectors is often a more reliable and time-effective solution.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4612402 4612179 04612402
The 1994-2001 Dodge Caravan uses Port Fuel Injection (PFI). The specific injector will vary depending on the engine (2.4L I4, 3.0L V6, 3.3L V6, or 3.8L V6). Always verify the correct part number for your specific engine before ordering.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
