Fixing the Exhaust Tick on Your 1994-2001 Dodge Ram 1500
That ticking noise from your engine bay is almost certainly a leaking exhaust manifold gasket, but there's more to the story.
- The root cause is usually a warped manifold and broken bolts, not just a bad gasket.
- A ticking noise when the engine is cold is the number one symptom of this failure.
- Be prepared for broken bolts. This is the hardest part of the job and can significantly increase repair time and cost.
- For a lasting repair, you should replace the gaskets, all manifold bolts, and inspect (or replace) the manifold itself.
The Real Reason Your Exhaust Gasket Is Leaking
If you own a 1994-2001 Dodge Ram, you've probably heard of the infamous 'Magnum tick'. This ticking sound, most noticeable when the engine is cold, is the classic sign of an exhaust leak. While the gasket is failing, it's usually not the root cause. The problem is that the original cast iron exhaust manifolds tend to warp over time due to thousands of heat cycles. As the manifold warps, it puts extreme stress on the steel exhaust manifold bolts, causing them to stretch and eventually snap, most often at the front and rear of the cylinder head. Once a bolt breaks, a gap is created, and the gasket can no longer seal properly, causing the leak.
Heads Up: This Job Is All About Broken Bolts
Replacing the exhaust manifold gasket on this truck is rarely a simple gasket swap. You should go into this job expecting to find broken manifold bolts. The most difficult part of the repair is not changing the parts, but safely extracting the broken bolts from the cylinder head without causing damage. This can require special tools like bolt extractors or even welding a nut onto the broken stud to back it out.
Choosing the Right Aftermarket Gasket Set
Since the gasket is only part of the solution, pairing a quality gasket with new hardware is key. When you're shopping, you'll see a few types of brands. It's almost always recommended to replace the manifold bolts at the same time, and seriously consider replacing the warped manifold as well.
Tier 1: Trusted, Well-Known Brands
These brands are consistently recommended in forums and by professional mechanics. They offer quality materials and engineering that you can rely on for a durable seal.
- Fel-Pro: A household name in gaskets, Fel-Pro is a go-to choice for many. They offer multi-layered steel (MLS) gaskets that are designed to handle the expansion and contraction of the different metals.
- Victor Reinz: Often considered an OEM-quality supplier, Victor Reinz gaskets are also highly regarded. Some users note their gaskets feel more pliable, which can help seal surfaces that aren't perfectly flat.
Tier 2: Standard Replacement Brands
These brands offer a cost-effective solution that meets standard specifications. They are a good choice for a budget-conscious repair.

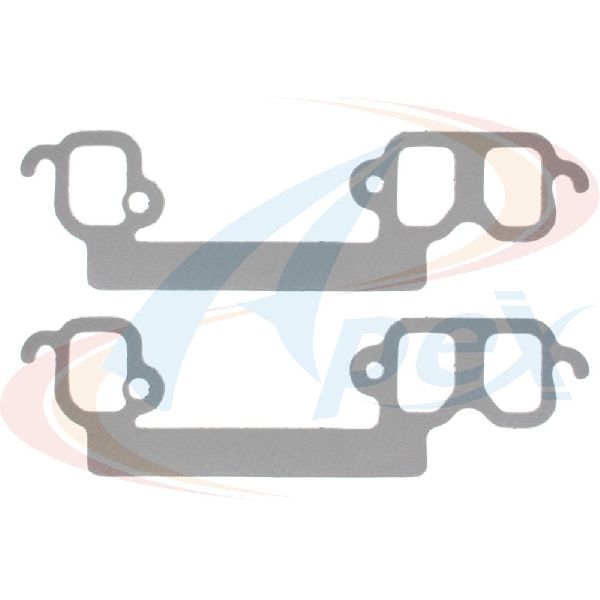

- Apex: A brand offering a range of gaskets that provide a functional, stock-level replacement.
Pro Tip: Don't reuse your old manifold bolts. They have been through countless heat cycles, which makes them brittle and weak. Always install new bolts with your new gasket to ensure proper clamping force and prevent a repeat failure.
Cost of Replacing the Exhaust Manifold Gasket Set
The cost can vary significantly based on the condition of your manifold bolts. A simple replacement is much cheaper than a job that requires hours of labor to extract broken bolts.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $16.56 - $42.04 |
| Shop Labor | $300 - $500+ |
| Total (Parts + Labor) | $320 - $550+ |
Note: Labor costs are an estimate and can increase significantly if multiple bolts are broken and difficult to remove. Some shops may quote closer to $950 to replace both manifolds, gaskets, and hardware.
Frequently Asked Questions (FAQ)
Why does the ticking noise go away when the engine warms up?
When the engine is cold, there is a small gap between the warped manifold and the cylinder head. As the engine heats up, the metal parts expand. This expansion can temporarily close the gap and seal the leak, causing the ticking noise to fade or disappear completely.
Is this a good DIY job?
It depends on your skill level and toolset. If no bolts break, it's a manageable job for an experienced DIYer. However, because broken bolts are so common on these trucks, you should be prepared for bolt extraction. If you are not comfortable with drilling and tapping, or potentially welding a nut to a broken stud, it's best to leave this job to a professional.
Do I need to use sealant on the gasket?
Most modern multi-layered steel (MLS) gaskets from brands like Fel-Pro and Victor Reinz are designed to be installed dry. They have special coatings that help them seal. Some mechanics apply a very thin layer of high-temperature copper sealant as extra insurance, but always follow the specific instructions included with your gasket set.
Should I replace the exhaust manifold too?
It is highly recommended. The original manifold is likely warped, which is what caused the gasket to fail in the first place. Installing a new gasket with a warped manifold is a temporary fix at best, and the leak will likely return. Many aftermarket kits come with a new manifold, gasket, and bolts for a complete solution.
Technical Specifications
Material: Multi-Layered Steel (MLS) is recommended. Set should include gaskets for both sides if doing a complete job.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
