Dodge Ram 1500 Ignition Switch Guide for 1994-2001 Models
Having trouble starting your truck or dealing with weird electrical issues? Your ignition switch might be the culprit.
- Symptoms like no-start, stalling, and electrical issues are common signs of a failing ignition switch on these trucks.
- The ignition switch is a separate electrical part; you will not need to change your keys.
- Check the wiring connectors for melting or damage when replacing the switch.
- Replacement requires a security Torx bit (T15 or T20 with a hole) and is a feasible DIY job for most owners.
Is Your Ignition Switch Failing? Common Symptoms in 2nd Gen Rams
A bad ignition switch in a 1994-2001 Dodge Ram can cause a range of frustrating electrical problems. Because these trucks are known for general electrical quirks, it's important to recognize symptoms specific to this part. You might be dealing with a failing switch if you experience the following:
🎬 Watch: 8 common symptoms of a failing ignition switch- No-Crank, No-Start: You turn the key, the dashboard lights up, but the engine doesn't crank at all. You may hear a single click or nothing.
- Engine Stalls While Driving: The engine may suddenly shut off, sometimes when turning or going over a bump. This is a serious safety issue caused by a momentary loss of electrical contact inside the switch.
- Electrical Gremlins: Accessories like the radio, power windows, or blower motor may not work, or they might stay on even after you've turned the truck off and removed the key. This can lead to a dead battery.
- Key Position Problems: The truck might start in the 'Run' position instead of the 'Start' position, or accessories may not power on in the correct key position.
Distinguish from Other Parts
It's easy to confuse a bad ignition switch with a faulty starter, neutral safety switch, or a dead battery. Also, a separate, common failure item on these trucks is the ignition switch actuator pin—a small metal piece that connects the lock cylinder to the ignition switch. If this pin breaks, the symptoms can be identical to a bad switch. 🎬 See how to inspect and repair the ignition actuator pin Inspecting the actuator pin during replacement is a good idea.
Choosing a New Aftermarket Ignition Switch
When replacing the ignition switch, you don't necessarily need to go to the dealer. Aftermarket brands offer quality parts that meet or exceed original equipment (OE) specifications. For this specific part on the 2nd Gen Ram, aftermarket options provide a good balance of quality and value.
Here's a look at the available brand tiers:
- Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand, Standard has a long reputation for making reliable ignition and engine management components. Mechanics often trust these parts for their consistent quality and fit, making them a solid choice for a critical component like an ignition switch.
- Rostra Powertrain: Rostra is a well-known manufacturer of various automotive electronic components. While perhaps more famous for cruise control and transmission parts, their electrical switches are generally considered a reliable mid-tier option.
- Replacement (Store Brands): This category typically includes house brands from various auto parts stores. While they are the most budget-friendly, quality can be inconsistent. They can be a viable option if the budget is tight, but for a part that can leave you stranded, investing in a more reputable brand is often worth the small price difference.
Pro Tip: Check Your Connectors
When you remove the old switch, inspect the wiring harness connectors carefully. Look for any signs of melting, discoloration, or corrosion on the plastic and metal pins. A loose connection or damaged wiring can cause the same symptoms as a bad switch and will cause a new switch to fail prematurely.
Estimated Replacement Costs
The cost to replace the ignition switch can vary, but it's a manageable repair for this vehicle. The part itself is affordable, and labor is not excessive.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Ignition Switch | $54.70 - $98.19 |
| Shop Labor | $92 - $135 |
| Total Professional Replacement | $146 - $233 (plus taxes & fees) |
Note: Costs are estimates. The total professional replacement cost is calculated using the provided aftermarket part price range and the estimated labor costs. Actual prices will vary by location and repair shop.
Frequently Asked Questions
Do I need any special tools to replace the ignition switch?
Yes, you will likely need a set of Torx drivers, specifically a T20 and a T15 security Torx bit (the kind with a hole in the center) to remove the steering column covers and the switch itself. You'll also need basic hand tools like a screwdriver and a 13mm wrench to disconnect the battery.
Are there any recalls for the 1994-2001 Ram ignition switch?
Searches for recalls on the NHTSA database did not show any specific ignition switch recalls for the 1994-2001 Dodge Ram 1500. There was a recall for a clutch ignition interlock switch on some 2006-2007 models with manual transmissions, but this does not apply to the 2nd generation Ram.
Can I replace just the ignition switch without changing my keys?
Yes. The ignition switch is a separate part from the ignition lock cylinder, which is the component your key fits into. You can replace the switch without needing to replace the lock cylinder or get new keys. The process involves removing the steering column covers to access and unbolt the switch.

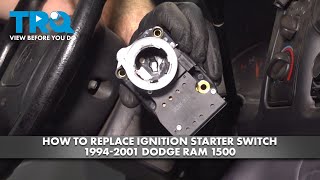

🎬 Follow this step-by-step guide to replace your ignition switchWhat is the difference between the ignition switch and the lock cylinder?
The ignition lock cylinder is the mechanical tumbler that you put your key into. The ignition switch is the electrical component that the lock cylinder turns. The switch has wiring connectors on the back and is responsible for sending power to different vehicle systems based on the key's position (Off, Accessory, Run, Start).
Helpful Videos
Technical Specifications
OEM Part Numbers: 56045879 56045879AA P56045879 P56045879AA
Located on the steering column, activated by the ignition lock cylinder. Features multiple electrical contacts to control accessory, run, and start circuits. Secured with tamper-proof Torx screws.
