Choosing the Right Transmission Filter Kit for Your 1994-2001 Dodge Ram 1500
Keep your Ram's automatic transmission shifting smoothly by selecting the correct filter and gasket.
- First, confirm if your Ram has the V6 (42RE) or V8 (46RH/46RE) transmission, as the pan shape and kit may differ.
- Choose a kit with a high-quality rubber gasket over a cork one for a better, more durable seal.
- Symptoms like whining noises, harsh shifts, or a burning smell strongly indicate it's time for a filter and fluid change.
- Always use ATF+4 specification transmission fluid to avoid causing damage to your transmission.
Understanding Your Ram's Transmission
Before buying a transmission filter kit for your 1994-2001 Dodge Ram 1500, you must know which automatic transmission your truck has. During this period, Dodge used a few different models, and the parts are not always interchangeable. Here’s a quick breakdown:
- 46RH (A518): Typically found in 1994-1995 V8 models. This is a hydraulically controlled 4-speed automatic.
- 46RE (A518): Found in 1996-2001 V8 models. This is an electronically controlled version of the 46RH.
- 42RH/42RE (A500): Typically found in V6 models throughout this period. The 42RH was used in earlier years (1994-1995) and the 42RE in later years (1996-2001).
The easiest way to tell the A500 (42RE) from the A518 (46RE) is by the shape of the transmission pan. The A500 pan is mostly rectangular, while the A518 pan has a more irregular shape with one straight edge. Always verify your specific model before purchasing a kit.
🎬 See a filter replacement on a 5.2L V8 Dodge Ram.Symptoms of a Clogged Transmission Filter
When a transmission filter gets clogged, it restricts fluid flow, leading to problems. If you notice any of these signs, it might be time for a transmission service.
- Delayed or Harsh Shifting: The truck may hesitate before going into gear or shift more roughly than usual. 🎬 Watch how to fix common shifting problems between 45-50 MPH.
- Unusual Noises: A whining or rattling sound from the transmission area can signal that the pump is struggling to pull fluid through a blocked filter.
- Sluggish Acceleration: If your truck feels less powerful or slow to respond, it could be due to poor fluid circulation.
- Transmission Overheating: A clogged filter can prevent proper cooling, causing the fluid to overheat and produce a burning smell.
- Check Engine Light: A warning light on your dashboard can be triggered by transmission performance issues related to low fluid pressure.
Choosing the Right Aftermarket Filter Kit
When shopping for an aftermarket kit, you'll find different brands and types. Quality can vary, so it's important to know what to look for.
Aftermarket Brand Tiers (General Perception)
| Tier | Brands | Quality & Notes |
|---|---|---|
| High Quality | Wix | Wix is a well-respected brand known for high-quality filter media and good construction. Many users prefer them for fit and reliability. |
| OEM Equivalent | ACDelco, ATP | ACDelco is a major OEM supplier, and their aftermarket parts are generally considered reliable. ATP is a long-standing aftermarket brand specializing in transmission parts, often considered a solid choice. |
| Standard/Value | Premium Guard, Pioneer Cable | These brands offer a more budget-friendly option. While they meet basic requirements, they may not have the same level of materials or construction as higher-priced brands. Always check reviews for fitment and gasket quality. |
Gasket Choice: Cork vs. Rubber
Many kits come with either a cork or a rubber pan gasket. While original gaskets were often cork, modern rubber or composite gaskets (like those made from NBR material) are generally superior. They are more forgiving, less likely to crack from over-tightening, and provide a better long-term seal against leaks. If you have a choice, a kit with a quality rubber gasket is recommended.
Estimated Replacement Costs
Replacing the transmission filter is a common maintenance item. The cost can vary depending on whether you do it yourself or take it to a shop.
| Service | Estimated Cost |
|---|---|
| New Aftermarket Filter Kit | $17 - $57 |
| Transmission Fluid (ATF+4) | $40 - $80 (5-8 quarts) |
| Shop Labor for Pan Drop Service | $100 - $250 |
| Total DIY Cost | $57 - $137 |
| Total Shop Cost | $157 - $387 |
Frequently Asked Questions (FAQ)
Are there any recalls for the 1994-2001 Ram 1500 transmission?
While there were numerous recalls and Technical Service Bulletins (TSBs) for this generation of Ram, none specifically target the transmission filter itself. However, some powertrain-related recalls existed, such as one for improperly tightened transfer case fasteners that could cause a fluid leak. It's always wise to check for any open recalls on your specific vehicle using its VIN.
How hard is it to change the transmission filter myself?
For a DIYer with basic tools, this is a manageable job. The main steps involve safely raising the vehicle, loosening the pan bolts to drain the fluid, dropping the pan, replacing the filter (held by two Torx bolts), cleaning the pan and magnet, and reinstalling everything with a new gasket. The most difficult part is managing the mess from the transmission fluid. The difficulty is about a 2 out of 5.
🎬 Watch this detailed walkthrough including band adjustments and torque specs.What kind of fluid do I need for my 1994-2001 Ram 1500?
You must use ATF+4 specification fluid. Using the wrong type of fluid can cause shifting problems and damage the transmission. A typical pan drop and filter change will require between 5 and 8 quarts of new fluid.
What is the magnet in the bottom of the pan for?
The magnet is there to collect fine metallic particles that wear off from gears and other steel parts. When you change the filter, you should clean the magnet thoroughly before reinstalling it in the clean pan. A small amount of fine, gray paste on the magnet is normal, but large metal chunks are a sign of serious internal problems.
Helpful Videos
Technical Specifications

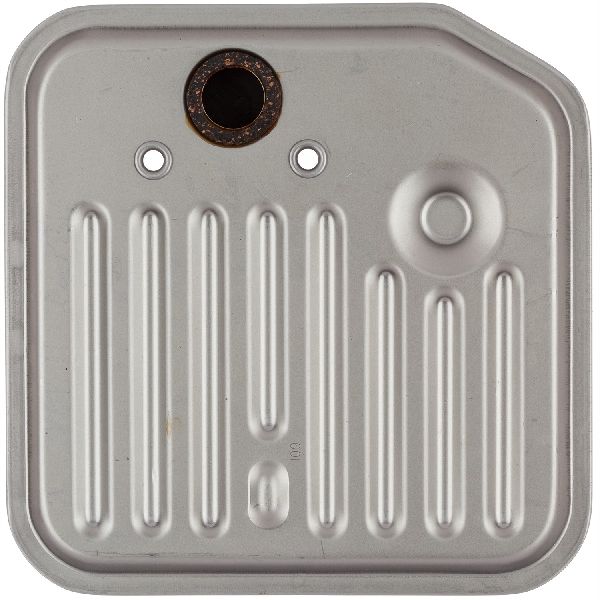

OEM Part Numbers: 52118789 3515996 4295875 2464324
The critical specification is matching the filter kit to your exact transmission model (42RE, 46RH, 46RE). The pan gasket shape is the primary identifier. The filter is typically held by two T20 or T25 Torx bolts.
