Diagnosing and Replacing the Vehicle Speed Sensor on a 1994-2001 Dodge Ram 1500
Fix your jumpy speedometer and erratic shifting by understanding this critical sensor.
- The main sensor causing speedometer and shifting issues is the ABS/speed sensor on the rear differential, not the one on the transmission.
- Symptoms include a faulty speedometer, harsh shifting, and ABS/Brake lights on the dash.
- This is an easy and inexpensive DIY repair that requires only basic hand tools and can be completed in under an hour.
- A quality aftermarket brand like Standard Ignition or Walker Products provides a reliable, cost-effective repair.
Understanding Speed Sensors on Your 2nd Gen Ram
If your 1994-2001 Dodge Ram's speedometer is acting up or the transmission is shifting hard, a bad speed sensor is a likely culprit. However, it's important to know that your truck has two main sensors that measure speed. The one that usually causes speedometer and shifting problems is the Rear Wheel Speed Sensor (often called the ABS sensor) located on the rear differential. There is also a Transmission Output Speed Sensor on the transmission itself, which primarily helps control transmission functions. Most of the time, when owners refer to the "Vehicle Speed Sensor" or VSS causing these issues, they are talking about the sensor on the rear differential.
Common Point of Confusion

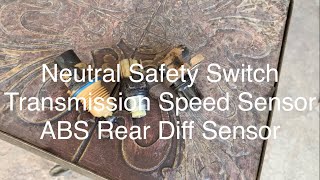

Many owners replace the sensor on the transmission when the actual problem is the sensor on the rear axle. Before buying a part, confirm which sensor is causing your symptoms. 🎬 Watch: How to locate and replace both transmission and ABS sensors. An OBD-II scanner can help pinpoint the issue with a code like P0500, but diagnosis may be needed to determine if the fault lies with the rear ABS sensor or the transmission output sensor.
Symptoms of a Failing Speed Sensor
A bad rear wheel speed sensor can cause a surprising number of problems. Because it provides data to multiple systems, a failure can show up in several ways:
- Erratic or Dead Speedometer: The needle may jump around, read incorrectly, or not move at all. This is one of the most common signs.
- Harsh or Incorrect Shifting: The automatic transmission may shift too early, too late, or very harshly because it doesn't know how fast the truck is moving.
- ABS and Brake Warning Lights: A faulty sensor will trigger the ABS and often the brake warning light on your dashboard.
- Cruise Control Won't Work: The cruise control system relies on a steady speed signal, so it will not engage if the sensor is bad.
- Check Engine Light: A failed sensor can trigger a Check Engine Light with code P0500 (Vehicle Speed Sensor "A" Malfunction). 🎬 See a breakdown of P0500 causes and how to fix them.
Choosing a New Aftermarket Speed Sensor
For a part like this, a quality aftermarket sensor is a reliable and cost-effective choice. The original OEM sensors are often discontinued or expensive, and the technology is straightforward, allowing aftermarket brands to produce dependable replacements. When choosing, consider the brand's reputation.
| Brand Tier | Brands | General Assessment |
|---|---|---|
| Premium Aftermarket | Standard Ignition (SMP) | Often considered a top-tier aftermarket brand with a long history. They manufacture a wide range of sensors and are known for quality that often meets or exceeds OE standards. |
| Standard Aftermarket | Walker Products, True Tech | These brands offer a good balance of price and quality. Walker Products has a long history in fuel and engine management parts and is a common choice for professional installers. Reviews indicate they are a solid value. |
| Economy Aftermarket | Holstein | Holstein positions itself as an OE-matching brand with a good warranty. However, owner feedback in forums is mixed, with some reporting success and others experiencing issues, suggesting potential quality control variability. It can be a budget-friendly option if a long warranty is important. |
Pro Tip: Check the Magnet
The sensor on the rear differential is magnetic. When you remove the old one, it will likely be covered in fine metal shavings. This is normal wear from the differential gears. Be sure to wipe the area clean before installing the new sensor to ensure an accurate reading.
Frequently Asked Questions (FAQ)
Can I replace the speed sensor myself?
Yes, this is a very DIY-friendly job. The rear sensor is held on by one bolt and has a single electrical connector. It's located on top of the rear differential. 🎬 Watch this step-by-step guide to replacing the rear differential sensor. Basic hand tools are all that's required, and the job can typically be done in under an hour.
Is there a recall for the speed sensor on my 1994-2001 Ram?
No, there are no specific recalls issued by the NHTSA for the vehicle speed sensor or ABS sensor on the 1994-2001 Dodge Ram 1500. While numerous TSBs (Technical Service Bulletins) exist for this generation of truck, none point to a widespread, free replacement program for this specific part.
What's the difference between the sensor on the transmission and the one on the rear axle?
The sensor on the rear axle (ABS sensor) reads wheel speed and is the primary input for your speedometer and ABS system. The sensor on the transmission (Output Speed Sensor) also reads speed but sends its signal primarily to the transmission control module to help manage shifting. The symptoms described in this article are almost always caused by the rear axle sensor.
Will a bad speed sensor damage my transmission?
While a bad sensor won't directly cause mechanical damage, it can cause the transmission to shift very harshly and at the wrong times. Over a long period, this added stress is not good for the transmission's clutches and internal components. It's best to replace a faulty sensor as soon as possible to restore normal operation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56027865 56027865AB 56028187AC
The primary sensor is a two-wire magnetic sensor located on the top of the rear differential housing, secured by a single bolt. It functions as both the Rear ABS Sensor and the Vehicle Speed Sensor.
