A/C Compressor Replacement Guide for 1994-2001 Dodge Ram 2500
Get your Ram's air conditioning blowing cold again by choosing the right replacement compressor.
- A catastrophic compressor failure ('Black Death') requires replacing the compressor, accumulator, orifice tube, and flushing the entire system to avoid damaging the new part.
- Always install a new compressor, not a remanufactured one, and replace the accumulator/drier and orifice tube at the same time to validate the warranty.
- Denso is a highly recommended aftermarket brand that offers quality similar to the original factory part.
- Due to the need for specialized equipment to handle refrigerant, professional installation is strongly recommended for most owners.
Is Your Ram's A/C Ready for a New Compressor?
If the air from your vents isn't cold anymore, or if you hear strange noises when you turn on the A/C, your compressor might be failing. For 1994-2001 Dodge Ram 2500 trucks, the A/C compressor works hard, and after years of service, it's common for it to wear out. This guide will help you understand the symptoms of failure and how to choose the best new aftermarket compressor for your truck.
Common Symptoms of a Failing A/C Compressor
🎬 Watch: How to diagnose and replace a failing Ram compressor
- No Cold Air: This is the most obvious sign. If the compressor can't pressurize the refrigerant, the system can't cool the air.
- Strange Noises: Grinding, squealing, or rattling sounds from the engine bay when the A/C is on usually point to failing internal bearings or a bad clutch.
- Compressor Clutch Not Engaging: The clutch on the front of the compressor should click and spin when you turn on the A/C. If it doesn't, it could be a failed clutch, an electrical problem, or low refrigerant pressure. One common issue on these trucks is a blown fuse; the 20-amp horn fuse under the hood is also tied to the A/C compressor clutch and is worth checking.
- Visible Leaks: The compressor has seals that can leak refrigerant and oil over time. You might see an oily residue on the compressor body.
Warning: The "Black Death"
A catastrophic compressor failure can contaminate the entire A/C system with metal shavings and burnt oil, a sludge known as "Black Death." 🎬 See how to properly flush a contaminated A/C system If this happens, just replacing the compressor isn't enough. The new compressor will fail quickly. You must also replace the receiver/drier (accumulator) and orifice tube, and thoroughly flush all A/C lines and the evaporator to remove the debris. Many mechanics also recommend replacing the condenser, as modern parallel-flow condensers are very difficult to flush completely.
🎬 Watch: Step-by-step guide to replacing your A/C condenserChoosing the Right Aftermarket A/C Compressor
For the 1994-2001 Dodge Ram 2500, you have several good aftermarket options. You don't always need to pay for an expensive OEM part from the dealer. Here's a breakdown of available brands:

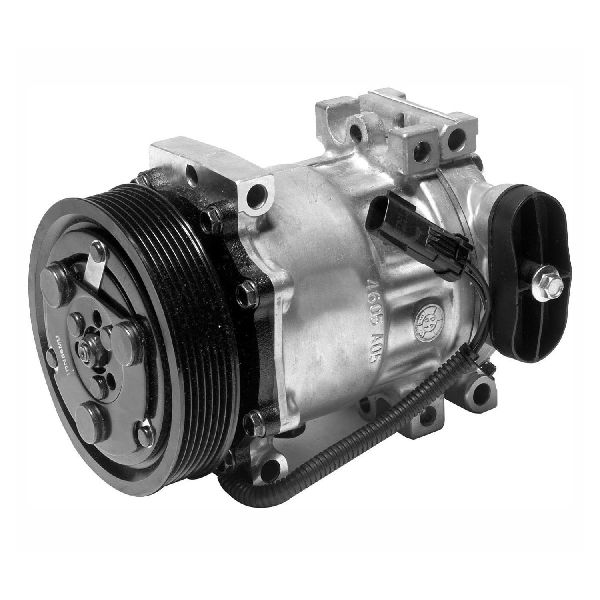

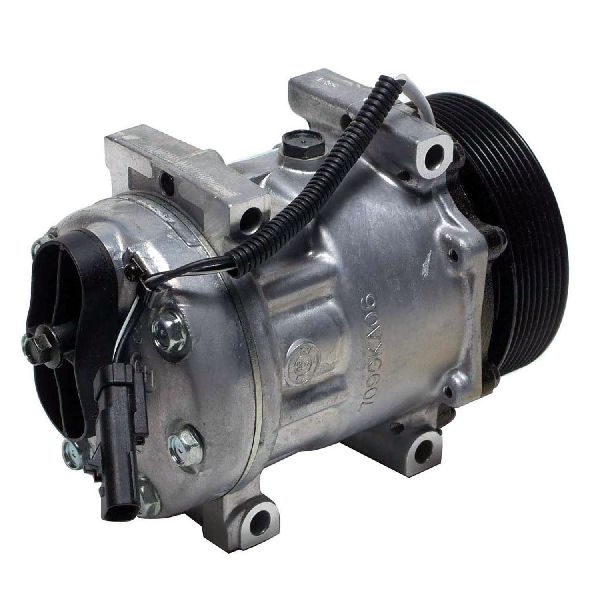

- Premium Aftermarket (Denso, Valeo): Denso is a well-respected original equipment (OE) supplier for many automakers, including Dodge. Choosing a new Denso compressor is often the closest you can get to OEM quality. Forum users and mechanics frequently recommend Denso for its reliability and performance. Valeo is another major OE supplier with a strong reputation for quality.
- Standard Aftermarket (Four Seasons): Four Seasons is a very common aftermarket brand. While some mechanics have good experiences with them, others have noted potential quality control issues compared to OE suppliers like Denso. They are generally considered a decent mid-range option.

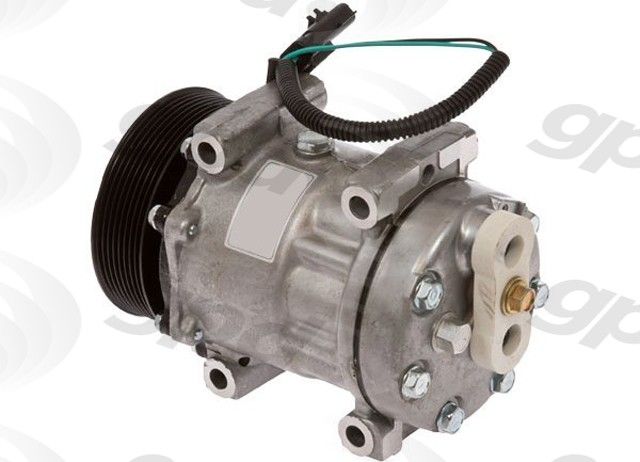

- Economy Aftermarket (Global Parts Distributors/GPD, UAC): Brands like GPD and UAC (Universal Air Conditioner) offer a more budget-friendly price point. These can be a good value, but it's critical to ensure you are buying a new unit, not a remanufactured one, as the quality of remanufactured parts can be inconsistent. When choosing an economy brand, it is especially important to follow all installation best practices, like replacing the accumulator and orifice tube.
Pro Tip: No matter which brand you choose, always buy a new compressor, not remanufactured. Also, purchase a kit that includes the A/C accumulator/drier and orifice tube, or buy those parts separately. Your warranty will likely be void if you don't replace these key components along with the compressor.
Cost of Replacing Your A/C Compressor
Here's what you can expect to pay for the parts and professional installation. Prices can vary by location and the specific parts chosen.
| Item | Estimated Cost |
|---|---|
| New Aftermarket A/C Compressor | $200 - $364 |
| New OEM A/C Compressor | $470 - $700 |
| Shop Labor (including system evacuation and recharge) | $400 - $650 |
| Total Professional Replacement Cost | $650 - $1,100+ |
Frequently Asked Questions (FAQ)
Can I replace the A/C compressor myself?
This is a job for an experienced DIYer. While the mechanical steps of unbolting the old compressor and installing the new one are straightforward, the A/C system is pressurized and contains refrigerant. It is illegal and unsafe to release refrigerant into the atmosphere. The system must be properly evacuated with a recovery machine before you start and then vacuumed and recharged with the correct amount of refrigerant and oil after the new parts are installed. You will need special tools like a vacuum pump and manifold gauges. For most owners, professional installation is recommended.
Do I need to replace anything else with the compressor?
Yes. At a minimum, you MUST replace the receiver/drier (also called an accumulator) and the orifice tube. The receiver/drier removes moisture from the system, and failing to replace it will cause the new compressor to fail. If your old compressor failed internally, you must also flush the entire system and consider replacing the condenser to remove all debris.
What kind of oil and refrigerant does my truck use?
The 1994-2001 Dodge Ram 2500 uses R-134a refrigerant. The system requires a specific type of oil, typically PAG 100 or PAG 46 depending on the compressor and engine. The new compressor should come with instructions or a tag indicating the correct oil type and amount. It is critical to use the right oil to prevent damage.
My A/C clutch is bad. Do I have to replace the whole compressor?
It is possible to replace only the A/C clutch, but it requires special tools and can be difficult. Often, the cost of a clutch assembly and the labor involved make it more practical to replace the entire compressor assembly, which typically includes a new clutch. If the compressor's pulley bearing has failed, the entire compressor should be replaced.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4849040 4849040AB 4849040AC 4849040AD 55035606 55035610 55036734 55055540 55055540AC 55055540AD 55055540AE 55055540AF 55055540AG 55055540AH 55055540AI 55055540AJ 55055540AL 55055540AM 55055540AO
Compressor Type: SD7H15, Pulley Grooves: 8, Refrigerant: R-134A, Oil Type: PAG 100 or PAG 46.
