Guide to the 1994-2001 Dodge Ram 2500 Automatic Transmission Mount
Clunks, bangs, or vibrations in your second-gen Ram could point to a worn-out transmission mount.
- A clunking noise when shifting is the most common sign of a failed mount on a 2nd Gen Ram.
- Replacement is a simple, one-hour job that is very feasible for a DIY mechanic with a jack and basic tools.
- Standard aftermarket brands like Anchor or Westar are affordable and adequate for most uses, but may not last as long as the original part under heavy-duty conditions.
- While you're replacing the transmission mount, it's a good time to inspect your engine mounts for wear.
Symptoms of a Failing Transmission Mount
The transmission mount on a second-generation Ram 2500 takes a lot of abuse, whether you have the gas V8 or the Cummins diesel. When the rubber inside wears out, cracks, or gets soaked with oil, it can no longer hold the transmission steady. In some cases, the rubber can completely separate from the metal, causing major issues. Look for these common signs:
- Clunking or Banging Noises: This is the most common symptom. You'll hear a loud clunk or thud when you shift from Park to Drive or Reverse. The noise can also happen when you accelerate hard or brake suddenly. This is the sound of the transmission moving too much and hitting the truck's frame.
- Excessive Vibrations: A worn mount can't absorb vibrations anymore. You'll feel a new or stronger vibration through the floor, your seat, or the gear shifter, especially when idling or accelerating.
- Drivetrain Movement: You might feel like the whole engine and transmission are moving around under you. On 4x4 models, you may even see the transfer case shifter handle move when you accelerate or shift gears.
Is it a Bad Mount or Something Else?
The symptoms of a bad transmission mount can sometimes feel like a problem inside the transmission itself, like shifting issues. While a bad mount can affect shift linkage, other issues like a failing transmission pressure control solenoid can also cause shifting problems between first and second gear on these trucks. It's important to inspect the mount first before assuming a more expensive transmission repair is needed.
Choosing the Right Aftermarket Mount
For a 1994-2001 Ram, the original Mopar mount is likely discontinued or very hard to find. Aftermarket is your main option. The brands available—Anchor, DEA, Pioneer, and Westar—are generally considered standard or economy-grade replacements. Here’s an honest breakdown:
- OEM Quality (Original): The original Chrysler mount used high-quality rubber that often lasted for over 20 years, but was still prone to getting soft and allowing too much movement.
- Standard Aftermarket (Anchor, DEA, Westar, Pioneer): These brands offer a cost-effective solution. Forum users and mechanics have mixed opinions; some say they are good enough for a daily driver, while others report they fail sooner than the original part, especially under heavy use like towing. Some reviews note that the metal thickness on brands like Westar can be less than OEM or Anchor. Fitment can also occasionally be an issue with economy brands, sometimes requiring slight modifications to install. However, for the price, they get the job done for most owners.
A Note for Cummins Owners
The massive torque of the 5.9L Cummins diesel puts extra strain on the transmission mount. While a standard aftermarket mount will work, it may wear out faster. Some owners choose to make their own heavy-duty polyurethane mounts for better durability, though this results in more vibration inside the cab. For most users, a standard replacement is sufficient and will restore stability.
Cost to Replace a 1994-2001 Dodge Ram 2500 Transmission Mount
Replacing the transmission mount is one of the more affordable repairs for this truck. The part itself is inexpensive, and the labor is straightforward.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Mount | $23 - $32 |
| Shop Labor | $100 - $200 |
| Total Estimated Cost | $123 - $232 |
Frequently Asked Questions (FAQ)
How do I check if my transmission mount is bad?
Safely park the truck on level ground with the parking brake set and wheels chocked. Have a helper sit in the driver's seat, hold the brakes firmly, and shift from Park to Reverse, and then to Drive, while you watch the transmission from a safe distance. If you see the transmission lift or move excessively, the mount is likely bad. You can also visually inspect the mount for large cracks, separated rubber, or oil contamination. Sometimes, the mount will be completely broken in two pieces.
🎬 Watch: How to check for bad engine or transmission mountsIs this a difficult job to do myself?
No, this is a very DIY-friendly job for someone with basic tools. You will need a good jack (a floor jack or bottle jack), jack stands, and a basic socket set (usually 15mm and 16mm sockets). The process involves supporting the transmission with the jack, unbolting the old mount from the crossmember and the transmission, and then bolting the new one in place. The entire job can usually be done in about an hour.
🎬 See this step-by-step transmission mount replacement walkthroughAre there any recalls for the transmission mount on this truck?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from NHTSA for the transmission mount itself on the 1994-2001 Dodge Ram 2500. Searches found recalls for later model years related to transmission fluid leaks or shifter interlock problems, but none apply to the mount on this generation.
Do I need to replace the engine mounts at the same time?
It's a good idea to inspect the engine mounts when you replace the transmission mount. All three mounts work together to hold the drivetrain. If the transmission mount has failed, there's a good chance the engine mounts are also worn. Replacing them all at once can save you from doing a similar job again soon and will ensure the entire drivetrain is properly stabilized.

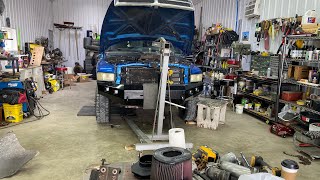

🎬 Watch: Replacing both motor and transmission mounts on a CumminsHelpful Videos
Technical Specifications
The mount consists of a steel frame and a rubber insulator block. It attaches to the transmission tail housing and the frame crossmember. The replacement procedure typically involves supporting the transmission, removing two nuts from the bottom studs and two bolts from the top. The bolts and nuts are commonly 15mm.
