Dodge Ram 2500 Windshield Washer Pump Replacement Guide (1994-2001)
A clear windshield is critical for safety; here’s how to fix your washer system when it fails on your 2nd Gen Ram.
- Failure is typically no spray, weak spray, or no pump noise.
- Before replacing, check the fuse, listen for the pump motor, and check for clogged hoses.
- Replacement is very easy, taking less than 30 minutes for a DIYer.
- A quality aftermarket pump like Trico is a cost-effective and reliable choice for this repair.
Is Your Windshield Washer Pump Failing?
A faulty windshield washer pump on a 1994-2001 Dodge Ram 2500 is a common issue, but it's usually simple to diagnose. Before you assume the pump is bad, do a few quick checks. First, make sure you have fluid in the reservoir. Next, check the system's fuse. If the fuse is good, have a friend listen near the driver's side front of the engine bay while you activate the washer switch.
- If you hear a whirring or buzzing sound: The pump is getting power. The problem might be the pump motor itself being too weak, or you could have clogged washer nozzles or pinched hoses. It's common for the washer fluid lines to get clogged with debris or get crushed under the hood over time.
- If you hear nothing: The pump is likely not getting power or has failed completely. This could be a bad pump, a faulty multifunction switch in the steering column, or a bad ground wire, which is a known issue on these trucks.
Choosing a New Aftermarket Pump
For a simple part like a washer pump on a 2nd Generation Ram, an aftermarket replacement is a smart and cost-effective choice. The original Mopar pumps can be expensive, while aftermarket options provide similar performance for a fraction of the price.
Trico is a well-known brand in windshield cleaning systems. Their aftermarket pumps are designed to be a direct fit, requiring no special adjustments for installation. Given the age of the vehicle and the simplicity of the repair, a quality aftermarket pump from a brand like Trico offers the best value for most owners.
Cost Comparison: 1994-2001 Ram 2500 Washer Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Trico) | $29.34 |
| New OEM (Mopar) | $47 - $107 |
| Shop Labor | $50 - $75 |
Known Issues for This Vehicle
While there are no specific recalls or Technical Service Bulletins (TSBs) for the windshield washer pump on the 1994-2001 Dodge Ram 2500, the electrical system that controls it can have issues. Forum discussions with owners point to two common culprits when a pump seems dead:

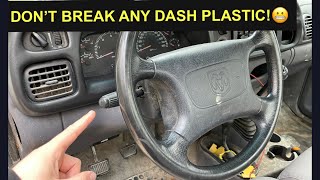

- The Multifunction Switch: The switch in the steering column that you use to activate the wipers and washers can fail internally. 🎬 Watch this video to learn how to repair the multifunction switch.
- Bad Ground Connection: A poor ground connection at the firewall on the driver's side can prevent the entire wiper and washer system from working. Cleaning this ground point often resolves mysterious electrical issues.
Pro Tip: Easy Installation

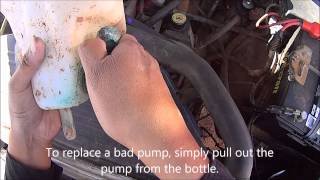

Replacing the washer pump is one of the easier jobs you can do on this truck. It is located on the washer fluid reservoir mounted to the fan shroud. The process involves simply disconnecting the electrical plug and hose, then pulling the old pump straight out of its rubber grommet on the tank. The new pump presses right back in. 🎬 Watch this step-by-step guide to replacing your washer pump. The entire job can be done in under 30 minutes with basic tools.
Frequently Asked Questions
Where is the windshield washer pump located on a 1994-2001 Ram 2500?
It is located in the front driver's side of the engine bay. The pump is press-fit into the bottom of the plastic windshield washer fluid reservoir.
Do I need to drain the washer fluid to replace the pump?
Yes, the fluid will drain out when you pull the old pump from the reservoir. Have a bucket ready to catch the old fluid before you start.
My pump makes noise but no fluid sprays. Is the pump bad?
Not necessarily. If the pump motor runs, the problem could be clogged nozzles on the hood, or a cracked, disconnected, or pinched fluid hose between the pump and the nozzles. 🎬 See how to fix a weak spray without replacing parts. Always check for blockages before replacing the pump.
Is an aftermarket pump reliable for my truck?
Yes. For this application, a quality aftermarket pump is a reliable and budget-friendly alternative to an expensive OEM part. Brands like Trico specialize in wiper and washer components and offer direct-fit replacements.
Helpful Videos
Technical Specifications
OEM Part Numbers: 55154758
Single nozzle output, 2-blade electrical connector.
