Electric Fuel Pump Guide for 1994-2001 Mazda B4000
Keep your Mazda B4000 running strong by understanding its fuel pump and choosing the right replacement.
- A failing fuel pump gives warnings like whining from the tank, hesitation, and trouble starting.
- Always check the inertia switch in the passenger footwell before assuming the pump is bad.
- Replacing the entire fuel pump assembly is better than just the pump motor for a more reliable, long-term repair.
- Lifting the truck bed is often an easier way to access the pump than dropping the fuel tank.
Is Your B4000's Fuel Pump Failing?
A failing fuel pump doesn't always quit suddenly. It often gives warning signs. If you notice your truck struggling to start, sputtering at high speeds, or losing power when going uphill, your fuel pump could be getting weak. A distinct whining noise from the fuel tank area is another classic symptom. Sometimes, a bad pump can cause the engine to stall and then restart after it has cooled down for a few minutes. Ignoring these signs can leave you stranded.
First, Check the Inertia Switch!
Your Mazda B4000 (and its Ford Ranger cousin) has a safety feature called an inertia switch. Its job is to shut off the fuel pump in a crash to prevent fires. However, a hard bump from off-roading or even hitting a large pothole can sometimes trip it, making you think the pump is dead. Before you suspect the pump, locate this switch in the passenger footwell area and press the reset button on top. If the truck starts, you've saved yourself a lot of work.
Choosing a New Aftermarket Fuel Pump
Since new OEM (Original Equipment Manufacturer) fuel pumps for this generation of B4000 are often hard to find or very expensive, the aftermarket is your best bet. Quality can vary, so it's important to choose wisely. The brands available fall into a few general tiers.
Brand Quality Tiers (General Reputation)

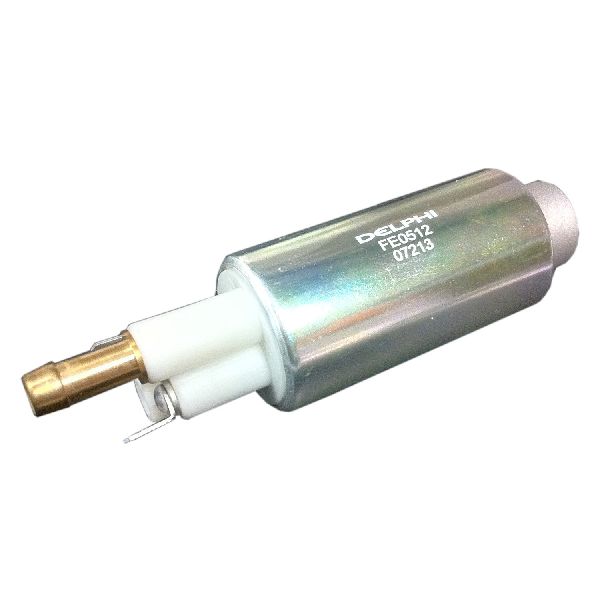

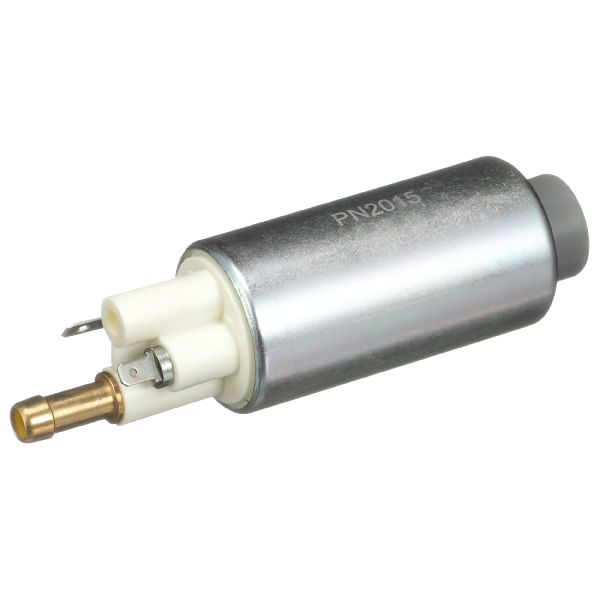

- Tier 1 (High-Quality Aftermarket): Delphi, Denso, Carter
These brands are well-regarded in the auto repair world. Delphi and Denso are often the original suppliers for many car manufacturers. Carter is a long-standing brand known for reliable fuel system components. Choosing from this tier gives you the best chance for a long-lasting, quiet, and reliable repair, similar to the original part. - Tier 2 (Standard Aftermarket): GMB, US Motor Works
These brands offer a good balance of price and performance. GMB is known for making a wide range of auto parts and their fuel pumps are generally seen as a solid replacement option. US Motor Works is also a popular choice that provides good value, though some reviews mention noise or occasional fitment issues with included parts like strainers. - Tier 3 (Economy): AutoBest
AutoBest pumps are typically the most budget-friendly. They can be a good option if the price is your main concern. While many users report they work well, especially for the price, the long-term durability may not match the higher-tier brands.
Pump Only vs. Full Assembly
You can buy just the small electric pump motor or the complete 'module' or 'assembly,' which includes the pump, sending unit (for the gas gauge), strainer, and float. For a vehicle of this age, it is highly recommended to replace the entire assembly. The plastic components and wiring on the original assembly can become brittle, and the fuel level sender is a common failure point. Doing the job once with a full assembly is easier and prevents you from having to take it all apart again if the old sender fails later.
Common Ordering Mistakes
Before you buy, double-check your truck's specifications. The Mazda B4000 is mechanically identical to the Ford Ranger, but there can be differences in fuel pumps based on:
- Cab and Bed Size: Different fuel tank sizes may require different pump assemblies.
- Year: There can be small changes in connectors or specifications between years. Always confirm the part fits your exact year.
- Flex Fuel vs. Gasoline: Ensure you are buying a pump compatible with the type of fuel your truck uses.
Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Assembly | $43 - $140 |
| Shop Labor | $250 - $450 |
| Total Estimated Cost | $293 - $590 |
Costs are estimates and can vary by location and repair shop.
Frequently Asked Questions (FAQ)
Do I have to drop the fuel tank to replace the pump?
Not necessarily. On pickup trucks like the B4000, it is often easier to unbolt the truck bed and tilt it or slide it back. This gives you clear access to the top of the fuel tank without having to drain the gas and lower the heavy tank. However, dropping the tank is also a valid method if you don't have the space or help to move the bed.
Should I replace the fuel filter at the same time?
Yes, absolutely. It is critical to replace your fuel filter when you install a new fuel pump. A clogged filter can make the new pump work too hard, leading to premature failure. Not replacing the filter may also void the warranty on your new pump.
What is the correct fuel pressure for a 1994-2001 B4000?
Fuel pressure specifications can vary slightly by year. Generally, for the 4.0L engine in this range, you should see around 35-45 PSI with the engine running. Some later models in this range may have slightly higher pressure. A weak pump will show a lower pressure, especially under acceleration.
My gas gauge stopped working. Is that related to the fuel pump?
Yes. The fuel level sending unit, which tells the gauge how much fuel is in the tank, is part of the fuel pump assembly. If your gauge is inaccurate or dead, but the truck still runs, the sender has failed. This is a key reason why replacing the entire assembly is recommended over just the pump motor.
Technical Specifications
OEM Part Numbers: F57Z9H307D F67Z9H307C F77Z9H307BC F87Z9H307DA YL5Z9H307AB
Fuel Pressure: Approx. 35-45 PSI. Location: In-tank. Drive Type: Electric.
