A Mechanic's Guide to the 1994-2001 Mazda B4000 Intake Manifold Gasket Set
Fixing common coolant and vacuum leaks in your B4000's 4.0L V6 starts with the right intake manifold gasket set.
- Verify if your B4000 has the 4.0L OHV (1994-2000) or 4.0L SOHC (2001) engine, as the gaskets are different.
- Symptoms include coolant loss, rough idle, and lean codes (P0171/P0174).
- This is a common failure point on these trucks due to age and material degradation.
- While doing the job, it is wise to also replace the thermostat, valve cover gaskets, and injector O-rings.
Is Your B4000 Running Rough or Losing Coolant?
A bad intake manifold gasket is a very common issue on the 1994-2001 Mazda B4000, which shares its 4.0L V6 engine with the Ford Ranger. Over many years and heat cycles, the original gaskets break down. This can cause two different types of problems. A vacuum leak introduces extra air into the engine, leading to a rough idle, poor performance, and Check Engine Light codes like P0171 and P0174. A coolant leak is more serious; it can be external (puddles under the truck) or internal (coolant mixing with engine oil), which can lead to overheating and major engine damage.
Engine Check: 1994-2000 OHV vs. 2001 SOHC
It is critical to know which 4.0L engine you have. For model years 1994-2000, the B4000 used the 4.0L OHV (Overhead Valve) engine. In 2001, Mazda began using the newer 4.0L SOHC (Single Overhead Cam) engine. These two engines use different intake manifold gasket sets. Always verify your truck's specific engine before ordering parts.
Symptoms of a Failing Intake Manifold Gasket
If your intake manifold gasket is failing, you will likely notice one or more of these signs:
- Coolant Loss with No Visible Leak: You may have to top off your coolant reservoir often. This can be a sign of a small external leak that burns off on the hot engine or a more serious internal leak into the oil.
- Rough Idle: The engine may shake or run unevenly when stopped, caused by a vacuum leak throwing off the air-fuel mixture.
- Check Engine Light: Lean codes (P0171, P0174) are a classic sign of a vacuum leak from a bad intake gasket. Misfire codes (e.g., P0300-P0306) can also occur.
- Engine Overheating: A significant coolant leak, either internal or external, will cause the engine to run hot and potentially overheat.
- Milky Engine Oil: A sludgy, light-brown substance on the oil dipstick or under the oil cap indicates coolant has mixed with the engine oil. This is a sign of a severe internal leak that requires immediate attention.
Choosing the Right Aftermarket Gasket Set
Since OEM gaskets from Mazda may be hard to find or expensive for a vehicle of this age, most owners choose aftermarket parts. The quality of aftermarket gaskets can vary, but some are known to be improvements over the original design. For this job, you'll be replacing both the lower intake manifold gasket (which seals against the cylinder heads and block) and the upper intake manifold gaskets (which seal the upper and lower manifold halves).
| Brand Tier | Brands | Description |
|---|---|---|
| Premium Aftermarket | Reinz, Victor Gaskets | Victor Reinz is a well-respected brand known for producing high-quality gaskets that often meet or exceed OEM specifications. They are a popular choice for mechanics who want a reliable, long-lasting seal. Many forum users recommend using OEM or high-quality aftermarket gaskets for this specific job to avoid having to do it twice. |
| Standard Aftermarket | Apex | Apex is a widely available aftermarket brand that offers a cost-effective solution. While some users have had good results with Apex for various applications, premium brands are often recommended for critical seals like the lower intake manifold to ensure longevity. |
Pro Tip: Get the Right Sealant
When installing the lower intake manifold gasket on the 4.0L OHV engine, it is critical to apply a small amount of RTV silicone sealant at the four corners where the cylinder heads meet the engine block. This helps seal any small imperfections and prevent leaks. Some experienced mechanics prefer using a high-quality RTV like 'Ultra Grey' even if the gasket kit comes with a small tube.
Frequently Asked Questions (FAQ)
Is this the same gasket set as a Ford Ranger?
Yes, the 1994-2001 Mazda B4000 is mechanically identical to the Ford Ranger with the 4.0L V6 engine. Gasket sets listed for the Ford Ranger of the same year and engine (OHV or SOHC) will fit your Mazda B4000 perfectly.
What causes the intake manifold gasket to fail?
The primary cause of failure is age and countless heat cycles. The original gasket materials can become hard and brittle, losing their ability to seal. On the 4.0L OHV, corrosion can also occur around the coolant passages due to old coolant, which eats away at the aluminum intake manifold and the gasket. This is why changing your coolant at recommended intervals is important.
What else should I replace while I'm doing this job?
Since you'll have the top of the engine apart, it's a great time to inspect and replace other items. Consider replacing the thermostat and thermostat housing gasket, valve cover gaskets, fuel injector O-rings, and any brittle vacuum lines. This can save you a lot of time and effort down the road.
Can I just tighten the bolts on the intake manifold to fix the leak?
Some owners have reported temporary success by re-torquing the lower intake manifold bolts, as they can loosen over time. However, this is usually not a permanent fix. If the gasket itself has degraded, cracked, or corroded, the leak will return. The only reliable, long-term solution is to replace the gaskets.
Technical Specifications
OEM Part Numbers: F7TZ-9E439-AA

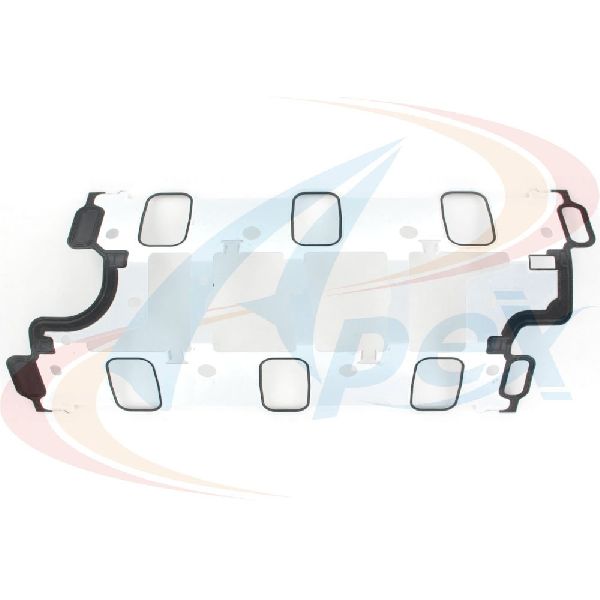

This is a set of gaskets for the upper and lower intake manifold on the 4.0L V6 engine. The lower gasket seals coolant and air passages between the manifold and cylinder heads. The upper gaskets seal the connection between the upper and lower intake plenums.
