Choosing the Right Spark Plugs for Your 1994-2001 Mazda B4000
Keep your B4000's 4.0L V6 engine running strong with the correct set of new aftermarket spark plugs.
- The 1994-2001 Mazda B4000 uses a Ford 4.0L V6 with a waste spark ignition system, so using double platinum or iridium plugs is highly recommended for longevity.
- The OEM brand is Motorcraft. High-quality aftermarket brands like NGK, Denso, and Autolite are also excellent choices.
- Always check the spark plug gap before installation; it should be set to approximately 0.054 inches.
- Accessing the passenger-side spark plugs can be difficult; many owners find it easier to work through the wheel well.
Signs of Failing Spark Plugs
When your spark plugs start to wear out, your truck will give you several warning signs. Ignoring them can lead to more expensive repairs down the road. One of the first things you might notice is a rough idle, where the engine shakes or sounds uneven when you're stopped. You may also experience difficulty starting the truck, sluggish acceleration, or a noticeable drop in gas mileage. If a plug is failing badly, it can cause an engine misfire, which feels like a stutter or hesitation during acceleration and will often trigger the Check Engine Light.
🎬 Watch how to diagnose and fix a common engine misfire.Known Issues & Installation Tips

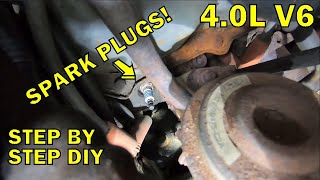

The 1994-2001 Mazda B4000 is mechanically identical to the Ford Ranger, sharing its 4.0L V6 engine. Owners and mechanics report that replacing the spark plugs on the passenger side of the engine can be difficult due to limited access. Components like the A/C evaporator can get in the way. Many find it easier to access these plugs by going through the passenger-side wheel well 🎬 See a step-by-step guide for replacing plugs on this engine. after removing the fender liner. Also, be aware that these engines use a "waste spark" ignition system. This means it's highly recommended to use double platinum or iridium spark plugs for even wear and longevity, as single platinum plugs can wear out prematurely on one side of the engine.
Choosing the Right Aftermarket Spark Plugs
Since your B4000 is a rebadged Ford, the original equipment (OEM) spark plugs were made by Motorcraft. When shopping for aftermarket replacements, you have several good options at different price points.
Tier 1: OEM Equivalents & Premium Aftermarket
- Motorcraft: Sticking with Motorcraft double platinum plugs is a safe bet for reliable, factory-spec performance. They are designed specifically for the 4.0L engine's waste spark system.
- NGK & Denso: These are top-tier Japanese brands known for excellent quality and performance. Their Iridium IX and Double Platinum plugs are often considered an upgrade over stock for longevity and consistent performance. Many owners report good results with these brands.
Tier 2: Quality Mid-Range Options
- Autolite: Often mentioned in the same breath as Motorcraft (and made by the same parent company for a time), Autolite Double Platinum plugs are a trusted and popular choice for the 4.0L engine. They provide a good balance of performance and value.
- Bosch: Bosch offers a range of plugs, including double platinum and iridium options that are compatible with the B4000. However, some Ford enthusiasts recommend avoiding multi-electrode plugs (like the +2 or +4) for the waste spark system, suggesting sticking to single-electrode double platinum or iridium designs.
Tier 3: Budget-Friendly Choices
- Champion: Champion offers basic copper and single platinum plugs that will work, but they may not last as long as double platinum or iridium plugs, especially with the waste spark system. They are a functional, budget-conscious option if you're prepared to change them more frequently.
Aftermarket Spark Plug Cost for 1994-2001 Mazda B4000
| Tier | Common Brands | Price Range (Per Plug) | Best For |
|---|---|---|---|
| Premium (Iridium / Double Platinum) | Motorcraft, NGK, Denso, Bosch | $8 - $21 | Longevity and optimal performance |
| Mid-Range (Double/Single Platinum) | Autolite, Champion | $5 - $10 | Good balance of price and quality |
| Economy (Copper) | Champion, Autolite | $3 - $6 | Budget-focused, shorter-term replacement |
Pro Tip: Check the Gap
The correct spark plug gap for the 4.0L V6 in your B4000 is typically 0.052 to 0.056 inches, with many setting it to 0.054 inches. While many modern plugs come "pre-gapped," they can be knocked out of spec during shipping. Always double-check the gap with a feeler gauge or gapping tool before installation to ensure optimal engine performance. An incorrect gap can cause misfires and poor fuel economy.
Frequently Asked Questions (FAQ)
How often should I replace the spark plugs on my Mazda B4000?
For a 1994-2001 B4000 with a 4.0L engine, if you use high-quality double platinum or iridium spark plugs, a replacement interval of every 50,000 to 100,000 miles is typical. If you use basic copper plugs, you should inspect or replace them more frequently, around every 30,000 miles.
Should I replace the spark plug wires at the same time?
Yes, it's highly recommended. Spark plug wires degrade over time and can become brittle or develop increased resistance. Worn wires can cause a weak spark, leading to misfires even with new plugs. Replacing the plugs and wires together as a set ensures the entire secondary ignition system is refreshed for reliable performance.
What is the difference between platinum and iridium plugs?
The main difference is the material of the center electrode, which affects durability and performance. Iridium is a harder, more durable metal than platinum and has a higher melting point. This means iridium plugs can last longer and maintain a precise gap for a longer period, providing a more consistent spark. Double platinum plugs are an excellent, long-lasting choice for the B4000's ignition system, while iridium is often seen as a premium upgrade.
Is there a recall for spark plugs on the 1994-2001 Mazda B4000?
No, there are no specific recalls issued by the NHTSA for spark plug failure on the 1994-2001 Mazda B4000. Recalls for this vehicle have primarily focused on other issues like airbags.
Helpful Videos
Technical Specifications
OEM Part Numbers: ZZN2-18-110D
Engine: 4.0L V6 (OHV or SOHC depending on year). Spark Plug Type: Double Platinum recommended due to waste spark ignition system. Spark Plug Gap: 0.052 - 0.056 inches (0.054" is common). Socket Size: 5/8 inch.
