Mercedes-Benz C280 (1994-2001) Engine Crankshaft Position Sensor Guide
Understanding why your C280 cranks but won't start and how to choose the right replacement crankshaft position sensor.
- A primary symptom of failure is the engine cranking but not starting, especially when hot.
- Verify your engine type: 1994-1997 models use the M104 engine, while 1998-2001 use the M112. They require different sensors.
- Due to the difficult replacement, it is highly recommended to use a high-quality OEM brand like Bosch to avoid premature failure and repeating the job.
- The sensor is located on the driver's side of the bell housing and requires special tools (E8 socket, extensions, swivel) for replacement.
Is Your C280 Cranking But Not Starting?
A common and frustrating issue for 1994-2001 Mercedes-Benz C280 owners is an engine that turns over but refuses to start, especially after it has been running and is warmed up. In many cases, the culprit is a failing engine crankshaft position sensor. This sensor is a known failure point on these vehicles, and its symptoms can appear suddenly, leaving you stranded. Understanding the signs of failure and how to choose a quality replacement part is crucial for a lasting repair.
A Critical Note on C280 Model Years (1994-1997 vs. 1998-2001)
Important: Two Different Engines, Two Different Sensors
The 1994-2001 C280 was built with two different engines, and they do not use the same crankshaft position sensor. Ordering the wrong part is a common mistake.
- 1994-1997 C280: These models are equipped with the M104 inline-6 engine.
- 1998-2001 C280: These models use the newer M112 V6 engine.
Always verify the part fits your exact year before purchasing. The electrical connectors and sensor design are different between the two engine types.
Choosing the Right Aftermarket Crankshaft Position Sensor
When it comes to this specific part for your C280, the quality of the replacement matters significantly. The replacement job is difficult due to the sensor's location, so you don't want to do it twice.
Brand Quality: OEM vs. Aftermarket
While budget-friendly aftermarket options are available, there is a strong consensus among Mercedes owners and mechanics to invest in a high-quality OEM (Original Equipment Manufacturer) or OEM-supplier part.
- Tier 1 (Recommended): Bosch
Bosch is the original equipment supplier for this part. Choosing a Bosch sensor is the closest you can get to buying the part from a Mercedes-Benz dealer. It is engineered for the correct tolerances and temperature ranges, which is critical for this application. Given the high-labor cost of replacement, a reliable Bosch part is a smart investment. - Tier 2 (Good Alternative): Hella, Vemo
Hella is another well-respected German brand that manufactures OEM parts for Mercedes-Benz. In the past, some Hella sensors were re-boxed OEM parts. Vemo is also a viable option. These brands can offer good quality, but Bosch remains the top recommendation for a guaranteed fit and long life. - Tier 3 (Use with Caution): Other Aftermarket Brands
Many other brands like Dorman, Spectra, and various private labels are available at lower prices. However, forums contain numerous reports of these cheaper sensors being dead-on-arrival, failing within a few weeks, or causing persistent performance issues. The risk of receiving a faulty part and having to repeat the difficult installation often outweighs the initial cost savings.
Pro Tip: Due to the sensor's location, a mechanic will charge 1.5 to 2.5 hours of labor for this job. To avoid paying for the same job twice, insist on using a Bosch or other top-tier German brand sensor for the repair.
Installation & Location
The crankshaft position sensor is located on the driver's side of the engine, at the very back where the engine meets the transmission (on the bell housing). It is notoriously difficult to see and reach. Access is from the top of the engine bay, and it typically requires removing the Mass Air Flow (MAF) sensor and air intake tubes to create enough room to work. The sensor is held in by a single E8 (external Torx) bolt, which is often removed by feel rather than by sight. A long extension, a universal swivel joint, and an E8 socket are required tools.
🎬 Watch this step-by-step DIY guide for replacing the sensor.Cost to Replace the Crankshaft Position Sensor
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $24 - $213 |
| Shop Labor | $180 - $300 |
| Total Professional Replacement | $204 - $513 |
Costs are estimates and can vary based on your location and the specific parts chosen. The labor estimate reflects the difficult location of the part.
Frequently Asked Questions (FAQ)
Can I still drive my C280 with a bad crankshaft position sensor?
It is not recommended. A failing sensor can cause the engine to stall unexpectedly while driving, which is a serious safety hazard as it results in the loss of power steering and power brakes. If the car won't start, you will need to have it towed.
What's the difference between a camshaft and a crankshaft position sensor?
They are similar sensors but monitor different rotating parts. The crankshaft sensor tracks the main engine crank, which turns twice for every one turn of the camshaft. The ECU uses both signals together to get a complete picture of the engine's cycle for precise timing. While they work together, a bad crankshaft sensor is more likely to cause a no-start condition than a bad camshaft sensor.
🎬 See the difference between camshaft and crankshaft sensors explained.Are there any recalls on this part?
No, there are no specific recalls or technical service bulletins (TSBs) from Mercedes-Benz or the NHTSA for crankshaft position sensor failure on the 1994-2001 C280. The issue is a well-documented common failure but not subject to a safety recall.
Could my no-start problem be something else?
Yes. While the crankshaft sensor is a very common culprit for a 'crank-no-start' issue on the W202 C-Class, other potential causes include a faulty fuel pump, a bad fuel pump relay, or a failed Over-Voltage Protection (OVP) relay. A proper diagnosis is always recommended, but if the car stalls when hot and restarts after cooling, the crankshaft sensor is the primary suspect.
🎬 Watch this diagnostic guide for a C-Class crank-no-start fix.Helpful Videos
Technical Specifications

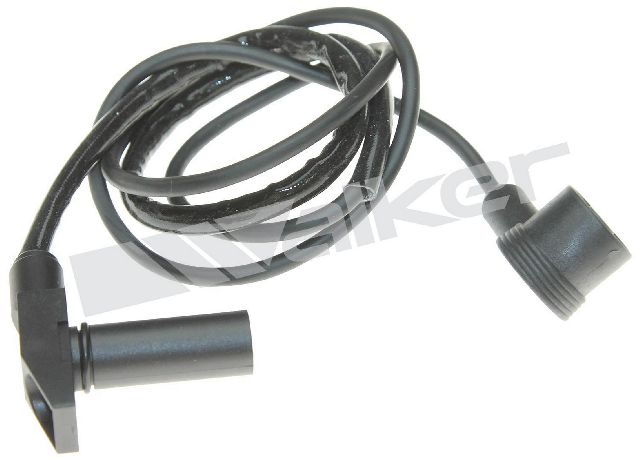

OEM Part Numbers: 0031534928 A0031534928 0031535028 A0031535028 0031539528 0031539628 0031532828 0261210141 0261210170
Location: Transmission bell housing, driver's side. Retaining Bolt: E8 External Torx. Type: Inductive Sensor.
