Diagnosing and Replacing the Brake Master Cylinder on a 1994-2002 Cadillac Eldorado
A soft brake pedal is a serious warning; here is what Eldorado owners need to know about the master cylinder.
- A spongy or sinking brake pedal is the number one symptom of a failing master cylinder and should be addressed immediately.
- Driving with a faulty master cylinder is not safe; the brakes can fail completely.
- New aftermarket brands like Raybestos and Dorman are reliable and cost-effective choices for the 1994-2002 Eldorado.
- You must bench bleed the new master cylinder before installation to ensure proper brake function.
Is Your Eldorado's Brake Master Cylinder Failing?
A failing brake master cylinder is a critical safety issue. The internal seals can wear out over time, allowing fluid to leak internally or externally. This prevents the system from building the necessary pressure to stop your vehicle effectively. If you notice any of the following symptoms, inspect the master cylinder immediately.
Key Failure Symptoms
- Spongy or Sinking Pedal: This is the most common sign. The brake pedal feels soft or mushy underfoot, or it slowly sinks to the floor when you hold it down. This happens because the internal seals are worn and can no longer hold pressure.
- Contaminated Brake Fluid: If you check the brake fluid reservoir and the fluid is dark brown or black, it's a sign of trouble. This discoloration is often caused by the rubber seals inside the master cylinder breaking down and contaminating the fluid.
- Brake Warning Light: Your dashboard may display a brake warning light. This can be triggered by a low fluid level, which could be caused by an external leak from a failing master cylinder.
- Visible Fluid Leaks: Check for brake fluid leaking from the rear of the master cylinder, where it meets the brake booster. Any leak in the brake system is a serious problem.
Can I Drive with a Bad Master Cylinder?
No. Driving with a suspected bad master cylinder is extremely dangerous. The component can fail completely without warning, leading to a total loss of braking ability. If you suspect a problem, do not drive the vehicle.
Choosing the Right Aftermarket Master Cylinder
For the 1994-2002 Eldorado, the original GM part is no longer easy to find new. Aftermarket manufacturers are the primary source for new replacements. Fortunately, several reputable brands offer quality parts that meet or exceed original specifications. OEM quality was good, but these are older vehicles, and a new aftermarket part is a more practical choice than a questionable used or expensive remanufactured OEM part.
Here’s a look at the available brands:
- Raybestos: Often considered a top-tier aftermarket brand, Raybestos has a long history in brake components. Their master cylinders are engineered to match OE performance and are a reliable choice for a complete and safe repair.
- Dorman: Dorman is well-known for re-engineering OEM parts to improve upon original weaknesses. They are a solid choice and often include small design improvements for better longevity.
- Centric: Centric parts are a popular and budget-friendly option. They provide good value and are widely used, though some mechanics have noted occasional quality inconsistencies compared to more premium brands.

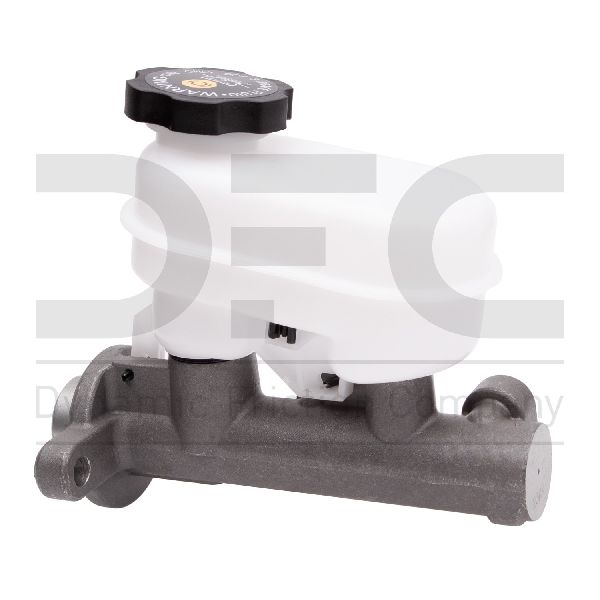

- Dynamic Friction: This brand focuses on providing quality components that meet OE form, fit, and function, making them a dependable option for daily driving needs.
Pro Tip: Always Bench Bleed the New Part
Before installing a new master cylinder, you MUST bench bleed it. This process removes air from inside the cylinder. Most new units come with a bleeding kit containing hoses and plastic fittings. Skipping this step will make it nearly impossible to bleed the brakes properly on the vehicle and will result in a spongy pedal.
Brake Master Cylinder Replacement Cost
The cost to replace the master cylinder on a 1994-2002 Eldorado involves the part itself and labor. While DIY replacement is possible for those with mechanical experience, it requires careful work and proper bleeding of the entire brake system.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Master Cylinder | $85 - $127 |
| Shop Labor | $98 - $145 |
| Total Professional Replacement | $183 - $272 (plus taxes and fees) |
Cost estimates are based on national averages and can vary by location and repair shop.
Frequently Asked Questions (FAQ)
Do I need to replace the brake booster at the same time?
Not usually. However, if the master cylinder has been leaking brake fluid into the booster, the fluid can destroy the booster's internal diaphragm. If you see fluid leaking from the seam between the two parts, inspect the booster for damage.
Does the new master cylinder come with a reservoir?
Yes, nearly all new aftermarket master cylinders for this Eldorado model are sold as a complete assembly with the fluid reservoir and sensor included.
What kind of brake fluid should I use?
Always use new, unopened DOT 3 brake fluid. Check your owner's manual to confirm the specification. Do not reuse old fluid, as it can absorb moisture and cause corrosion inside the new part.
Is replacement difficult? Do I need special tools?
The replacement is moderately difficult. You will need a set of flare nut wrenches to remove the brake lines without stripping them. You will also need a brake bleeding kit (either a vacuum pump or a helper) to bleed the system after installation. A forum post for a similar GM vehicle notes the mounting nuts are 15mm.
Technical Specifications
OEM Part Numbers: 18020057 18021862 18029759 18029856 18029946 18029972 18044394 18046507 18060164
Bore Diameter: 1 inch. Includes reservoir and fluid level sensor.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
