A Guide to Spark Plug Wire Sets for the 1994-2002 Dodge Ram 1500
Fix that rough idle and restore your Magnum V8's performance by choosing the right spark plug wire set.
- Always replace spark plug wires one at a time to avoid mixing up the firing order.
- Follow the wire routing guidelines in TSB 18-48-98 to prevent engine misfires, especially on 1994-1999 models.
- Use a small amount of dielectric grease inside each boot for a better seal and easier future removal.
- For most owners, a quality OEM-equivalent brand like NGK or Denso is sufficient; performance brands like MSD or Taylor are optional upgrades.
Is Your Ram's Engine Running Rough? It Could Be the Wires.
Over time, the spark plug wires on your Ram are exposed to extreme engine heat, vibration, and chemicals. This causes the insulation to break down, crack, or even melt. When the insulation fails, the electrical energy can leak out or "arc" to a metal engine part instead of reaching the spark plug. This leads to common symptoms like a shaky idle, engine misfires, poor acceleration, and reduced fuel economy. You might also notice the Check Engine Light comes on.
🎬 Watch this video to learn more about bad wire symptoms.Known Issues: The Misfire TSB for Magnum Engines
A well-known issue for 1994-1999 Dodge trucks with 5.2L and 5.9L Magnum engines is a misfire condition caused by "cross-fire" between spark plug wires. Chrysler issued Technical Service Bulletin (TSB) 18-48-98 to address this. The TSB provides a specific procedure for re-routing certain spark plug wires (especially for cylinders 4, 5, 7, and 8) to prevent them from running parallel and inducing a current in each other. When replacing your wires, following this updated routing is crucial to prevent misfires, even with brand new parts. The key is to ensure wires cross at a 90-degree angle if they must cross at all.
Choosing the Right Aftermarket Spark Plug Wires
For a stock or lightly modified 1994-2002 Ram, you don't necessarily need the most expensive performance wires. Many aftermarket brands offer excellent quality that meets or exceeds the original Mopar specifications. The most important factors are good insulation, proper fit, and correct resistance. Wires are often sold in different diameters, like 7mm (stock size) or 8mm-8.5mm, which offer thicker insulation.
Brand Tiers for Your Ram

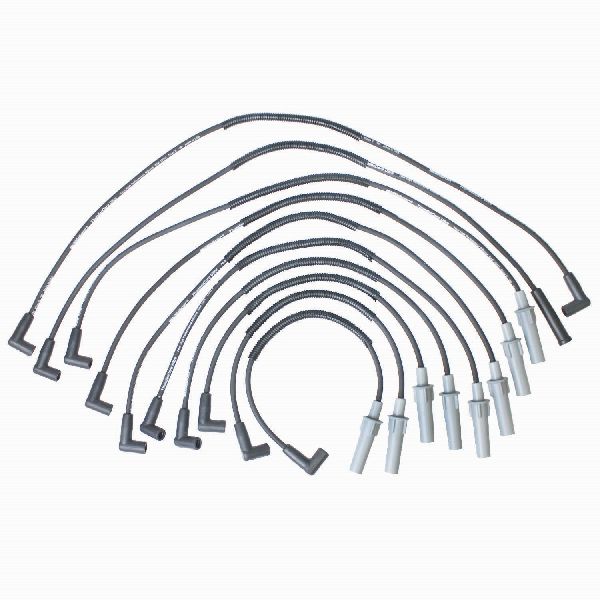

- OEM-Quality / Daily Driver: Brands like NGK, Denso, and ACDelco are known for making high-quality parts that are very similar to the original factory wires. They are a reliable choice for daily driving and general use. Standard Wires and Walker Products also offer dependable options.
- Performance & Heavy-Duty: Brands like MSD, Taylor Cable, and Accel are popular in the performance community. They often feature thicker 8.5mm silicone jackets and lower resistance for a slightly stronger spark. While forum users have noted occasional reliability issues with Accel coils, their wire sets are generally considered a solid upgrade. JBA Racing and Pertronix also offer performance-oriented wire sets.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $38 - $240 |
| New OEM (Mopar) | $60 - $120 |
| Shop Labor | $122 - $179 |
Pro Tip: When installing your new wires, replace them one at a time. This prevents mixing up the firing order, which would cause the engine to run very poorly or not at all. Also, apply a small amount of dielectric grease to the inside of each boot to seal out moisture and make future removal easier.
🎬 See a full tune-up and wire installation on a Magnum engine.Frequently Asked Questions
How often should I replace my spark plug wires?
A good rule of thumb is to inspect them with every spark plug change. Many mechanics recommend replacing them every 40,000 to 60,000 miles or if you see any visible damage like cracks, burns, or melting. Some wires can last much longer, but replacing them is good preventative maintenance.
What's the difference between 7mm, 8mm, and 8.5mm wires?
The measurement refers to the outer diameter of the wire. A larger diameter, like 8mm or 8.5mm, means the wire has thicker insulation. This provides better protection against heat and helps prevent voltage leaks, which can be beneficial on the hot-running Magnum engines.
Do I need special tools to change my spark plug wires?
No, the job can be done with basic hand tools. A spark plug boot puller can be helpful to safely remove stubborn boots without damaging them, and a flathead screwdriver can help open the wire clips. 🎬 Follow this step-by-step guide to replacing your spark plug wires. It's also a good idea to have a marker to label wires if you choose to remove more than one at a time.
What is the firing order for the 5.2L/5.9L V8?
The firing order for the Magnum V8 engines is 1-8-4-3-6-5-7-2. The distributor cap should be marked with the position for the #1 cylinder. From there, you follow the order clockwise around the cap.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56028186
The V8 engines (5.2L and 5.9L) use a set of 9 wires (8 for spark plugs, 1 for the coil). The V6 (3.9L) uses a 7-wire set. Stock wire diameter is typically 7mm, with 8mm and 8.5mm being common aftermarket upgrades. Wires are designed with a spiral core to suppress radio frequency interference (RFI).
