A Guide to Replacing the Steering Gear on a 1994-2002 Dodge Ram 1500
Tired of constant steering corrections and road wander? Here is what you need to know about choosing a new steering gear for your 2nd Gen Ram.
- The most common failure symptom is steering wander, which requires constant correction to drive straight.
- Simply replacing the gear with a standard part will fix the issue temporarily, but premium aftermarket options exist that re-engineer the internals for longer life.
- A steering box brace is a highly recommended, separate upgrade to prevent frame flex and further improve steering feel.
- Flushing the power steering system with fresh fluid is mandatory to protect your new steering gear.
Is Your Steering Gear Failing? Common Symptoms
The factory steering gear on the 1994-2002 Dodge Ram is a known weak point, with symptoms that can develop over time. The most common complaint is a feeling of looseness or excessive play in the steering. You may find yourself constantly making small corrections with the steering wheel just to keep the truck driving in a straight line.
- Steering Wander: The truck drifts or wanders from side to side, requiring continuous input from the driver to stay in its lane.
- Excessive Play: You can move the steering wheel more than a couple of inches in either direction before the front wheels begin to turn.
- Fluid Leaks: Puddles of red or brown power steering fluid under the front of the truck are a clear sign of failure. Leaks often occur from the seal where the pitman arm connects to the bottom of the gear (the sector shaft seal).
- Memory Steer: The steering wheel does not want to return to the center on its own after making a turn. This can be caused by internal wear or by someone incorrectly over-tightening the adjustment screw.
- Popping or Clunking Noises: Unusual noises while turning can indicate worn or broken internal gear teeth. 🎬 Watch this guide to help diagnose your steering issues.
A Note on "Death Wobble"
While a worn steering gear can contribute to it, the violent shaking known as "death wobble" is often caused by a combination of worn parts. If you experience this, you should also inspect your track bar, ball joints, tie rod ends, and steering stabilizer shock, as simply replacing the steering gear may not solve the entire problem.
Choosing the Right Aftermarket Steering Gear
When replacing the steering gear on a 2nd Gen Ram, you have several options. Because the original factory design is prone to premature wear, many owners look for an upgrade over a standard replacement.
OEM vs. Aftermarket Quality
A new OEM steering gear from the dealer will function like the original, but it will also have the same design limitations that lead to future steering wander. Aftermarket companies address these issues in different ways. Standard remanufactured parts are built to meet original specifications, while premium or heavy-duty aftermarket parts are often re-engineered with stronger internal components to provide a longer service life and a tighter steering feel.
Available Brand Tiers

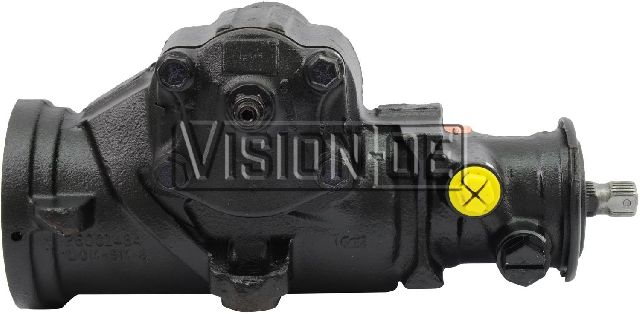

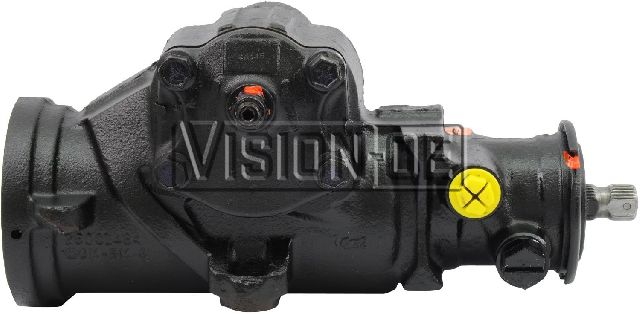

- Standard Remanufactured (BBB Industries, etc.): These are a direct, budget-friendly replacement for a failed unit. Companies like BBB Industries completely disassemble, clean, inspect, and replace all seals, O-rings, and recirculating balls with new parts that meet or exceed OE standards. This will restore the original steering feel and is a good option for a daily driver under normal conditions.
- New Aftermarket (PWR, etc.): Some brands offer completely new units. PWR is one such brand, though user reviews are not as widely available as for other remanufactured specialists. These are often priced higher than standard remanufactured parts.
- Premium / Heavy-Duty Remanufactured (Explains High Price Point): The higher end of the aftermarket price range ($600+) is typically occupied by specialized companies like Red-Head or Blue Top. These brands are well-regarded in owner forums for modifying the gear housing to include superior components like needle bearings, which drastically improves durability and reduces the play that plagues the stock design. For trucks with larger tires or those used for heavy towing, these are often considered a worthwhile investment.
Consider a Steering Box Brace

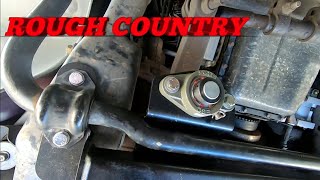

The frame on the 2nd Gen Ram can flex where the steering gear mounts. This flex contributes to steering wander and can eventually lead to frame cracks. An aftermarket steering box brace is a highly recommended upgrade that connects the sector shaft of the steering gear to the opposite frame rail, providing support and preventing this flex. Most owners find it significantly improves steering response, regardless of which steering gear is installed.

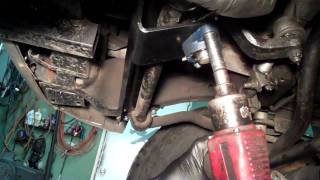

🎬 Watch: How to install a steering gear box stabilizer.Replacement Cost
The cost to replace your steering gear will depend on the part you choose and local labor rates.
🎬 See a full walkthrough on how to replace the gear.| Item | Estimated Cost |
|---|---|
| Shop Labor | $250 - $450 |
| New Aftermarket Steering Gear | $196.47 - $922.85 |
| New OEM Steering Gear | $450 - $700+ |
| Used OEM Steering Gear | $50 - $150 |
Frequently Asked Questions (FAQ)
Can't I just adjust my current steering box to fix the play?
There is an adjustment screw on top of the steering gear, but it is meant to set the gear lash during manufacturing, not to compensate for wear. While a very small adjustment might temporarily help, over-tightening it will cause the gears to bind, leading to "memory steer" where the wheel won't return to center. If your steering gear is worn out, adjustment is not the proper fix and can make driving more dangerous.
Do I need a special tool to replace the steering gear?
Yes. The most important special tool is a Pitman Arm Puller. The pitman arm connects to the steering gear's sector shaft with a splined, press-fit connection that is very tight. It is nearly impossible to remove without a proper puller. You will also need a good set of wrenches and sockets.
Do I have to flush the power steering fluid?
Yes, this is a critical step. Old, contaminated fluid can quickly damage the seals in your new steering gear. When you replace the gear, you should always flush the entire system, including the pump and lines, with fresh, manufacturer-approved power steering fluid.
What is the difference between a 3-turn and 4-turn steering box?
This refers to the number of turns the steering wheel makes from lock-to-lock. A 3-turn box has a "quicker" steering ratio, meaning a small turn of the steering wheel results in more wheel movement. A 4-turn box is slower. While some prefer the quicker ratio, premium brands often note that a 4-turn box may be more durable, especially on diesel trucks or those with large tires.
Helpful Videos
Technical Specifications
OEM Part Numbers: 52106034 5083894AA 5083894AB 52007323
Recirculating Ball Steering Gear
