Dodge Ram 2500 A/C Clutch Cycle Switch Guide (1994-2002)
If your Ram's A/C isn't blowing cold, a bad A/C clutch cycle switch is a common and easy-to-fix problem.
- A failed A/C clutch cycle switch is a common reason for A/C failure on a 1994-2002 Ram 2500.
- Symptoms include the A/C compressor not turning on at all or running constantly without stopping.
- This is an extremely easy part to replace yourself in under 15 minutes with basic tools, as it does not require opening the sealed refrigerant system.
- Aftermarket brands like Four Seasons and Global Parts are affordable and reliable options for this specific part.
Is Your Ram's A/C Acting Up?
When the air conditioning in your 1994-2002 Dodge Ram 2500 stops blowing cold, a faulty A/C clutch cycle switch is a frequent cause. This part is designed to protect your A/C compressor, but like any electrical component, its internal contacts can wear out over time. Understanding the symptoms can help you figure out if it's time for a replacement.
Common Symptoms of a Failing A/C Cycle Switch
- A/C compressor won't turn on: The most common symptom is that the A/C clutch never engages, resulting in no cold air.
- A/C compressor runs constantly: The switch can fail in the 'on' position, causing the compressor to run without cycling off. This can lead to the evaporator freezing up and potential compressor damage.
- Intermittent cooling: The A/C might work sometimes and not others, especially when hitting bumps, which can indicate a loose internal connection 🎬 Watch this guide for troubleshooting 2nd Gen Ram A/C issues in the switch.

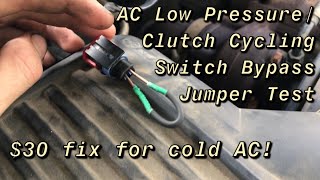

Pro Tip: The Paperclip Test
You can quickly test if the switch is the problem. Unplug the electrical connector from the switch. Use a small wire or paperclip to connect the two terminals inside the connector. With the engine running and A/C on, the compressor clutch should engage. If it does, it's a strong sign the switch is bad.
Warning: Do not run the system with the jumper wire for more than a few seconds. This bypasses the system's safety features and can cause damage if the refrigerant level is low.
🎬 See a demonstration of the low pressure switch testChoosing the Right Aftermarket A/C Cycle Switch
For the 1994-2002 Dodge Ram 2500, you don't need to pay dealership prices for a quality A/C switch. Aftermarket brands offer a reliable and affordable alternative. The OEM switch is a simple pressure sensor, and aftermarket versions from reputable brands are built to meet or exceed the original fit and function.

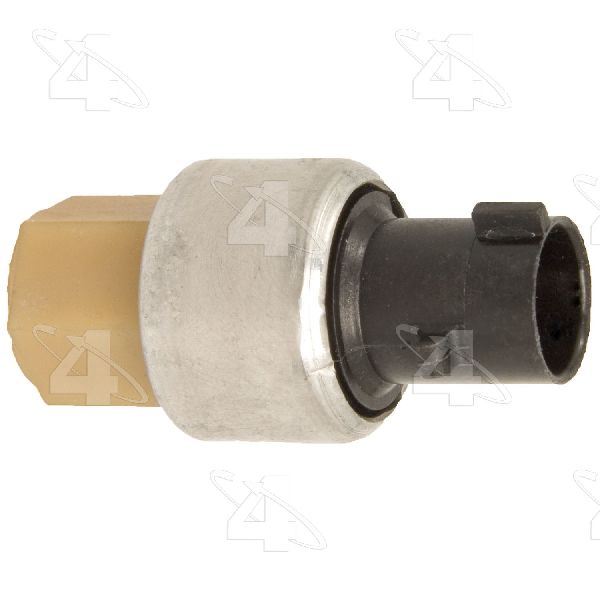

- Four Seasons: A widely available brand in the A/C parts world. While some of their broader product lines get mixed reviews, their switches and sensors are generally considered a reliable, budget-friendly choice for a direct replacement.
- Global Parts (GPD): Another major player in aftermarket A/C components. GPD parts are designed to match the original equipment (OE) fit and function and are a solid option for this repair.
For a simple part like a cycling switch, both Four Seasons and Global Parts are good choices that provide significant savings over OEM without a noticeable difference in performance or longevity for this specific application.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Four Seasons, Global Parts) | $17.16 - $50.51 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the A/C clutch cycle switch located on my Ram 2500?
It is located on the A/C accumulator, which is a large silver or black aluminum canister. You'll usually find it mounted to the firewall on the passenger side of the engine bay. The switch is a small sensor with a two-wire electrical connector plugged into it.
Can I replace the A/C cycle switch myself?
Yes, this is a very easy DIY repair. The switch is mounted on a Schrader valve, like a tire's air valve. This allows you to unscrew the old switch and install the new one without losing the system's refrigerant. The job requires a basic wrench and takes less than 15 minutes.

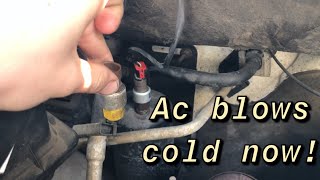

🎬 Watch: How to test and replace your A/C cycling switchDo I need to empty the A/C system to replace the switch?
No. Because it's mounted on a Schrader valve, you can replace the switch without evacuating the refrigerant. Just be ready to screw the new one on quickly after you remove the old one to minimize any tiny puff of refrigerant that might escape.
Are there any recalls for the A/C clutch cycle switch on my truck?
No, searches of NHTSA data did not find any specific recalls for the A/C clutch cycling switch for the 1994-2002 Dodge Ram 2500. Any recalls found were for different components or model years outside this range.
What is the difference between the cycling switch and the high-pressure switch?
The cycling switch (a low-pressure switch) is what this article is about. It controls the normal on/off cycling of the compressor. Your truck also has a high-pressure cutout switch. Its job is to shut down the compressor if pressure gets dangerously high, protecting the system from damage. A failure in either switch can cause the A/C to stop working.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4897615AA 5018449AA 5015872AC 5072200AA
System mounted, low-pressure cycling switch with a 2-pin connector. Thread size is typically M12-1.50.
