Diagnosing and Replacing the ABS Sensor on a 1994-2002 Dodge Ram 2500
Your ABS light is on and the speedometer is acting up. Here's what to know about the wheel speed sensors on your second-gen Ram.
- The rear ABS sensor on the differential is the most common failure point and also controls the speedometer and affects transmission shifting.
- Symptoms often include an ABS light, a non-working speedometer, and harsh shifting.
- Before replacing the sensor, always inspect the wiring harness and connector for damage, as this can cause the same symptoms.
- Replacing the rear sensor is a simple DIY job, but the mounting bolt can be prone to rust and breaking.
Is Your Ram's ABS Light On?
For owners of the 1994-2002 Dodge Ram 2500, an illuminated ABS warning light is a common sight. While this could point to several issues within the anti-lock brake system, the most frequent culprit is a failed wheel speed sensor. These trucks typically have a single ABS sensor mounted on the rear differential that serves multiple functions, making its failure noticeable in several ways. Some trucks equipped with four-wheel ABS will also have sensors at the front wheels, which are integrated into the wheel hub assemblies.
Why the Rear Sensor is So Important
On this generation of Ram trucks, the rear ABS sensor does more than just control the anti-lock brakes. It is often the primary source for your vehicle's speed reading. When it fails, you'll likely experience more than just an ABS light. Common symptoms include:
- The speedometer stops working or behaves erratically.
- The transmission may shift harshly or at the wrong times because it isn't receiving an accurate speed signal.
- The "BRAKE" warning light may also illuminate on the dashboard.
Because of these widespread symptoms, correctly diagnosing a bad rear speed sensor can save you from unnecessary and expensive transmission repairs.
Check the Wiring First!

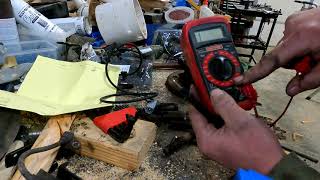

Before you replace the sensor, inspect the wiring harness leading to it. The wires can become brittle, corroded, or damaged from road debris, especially at the connector. A wiring issue can mimic the symptoms of a failed sensor. 🎬 See how to test your ABS sensors before buying parts. Sometimes, simply cleaning the connector or repairing a damaged wire can solve the problem.
Choosing the Right Aftermarket ABS Sensor
When replacing your ABS sensor, you have several aftermarket brands to choose from. While an OEM Mopar part is an option, quality aftermarket brands offer a reliable and more affordable alternative.
Premium Brands ($60 - $120):
- SKF: Known for their expertise in bearings and hub assemblies, SKF sensors are built to high standards and are a top-tier choice.
- Delphi: As a major OEM supplier for many car manufacturers, Delphi parts are known for their quality and reliability, making them a safe bet.
- Standard Ignition (SMP) / NGK (NTK): Both are highly respected names in the sensor and electronics field. They produce OE-quality replacements that are trusted by mechanics.
Standard/Value Brands ($26 - $60):
- Dorman: Dorman offers a vast catalog of replacement parts and is widely available. While their quality can sometimes be inconsistent according to user reviews, they are a popular budget-friendly choice.
- Holstein / Walker Products: These brands provide cost-effective solutions that meet basic requirements. They are a good option for those on a tight budget, but may not offer the same longevity as premium brands.
Installation Tip for the Rear Sensor
The rear sensor is held in the differential housing by a single bolt. This bolt is notorious for rusting and seizing. Apply a good penetrating oil before attempting to remove it. When installing the new sensor, clean the mounting surface thoroughly to ensure it sits correctly and gets an accurate reading. A light coat of clean motor oil on the new sensor's O-ring will help it slide into place without damage.
🎬 Watch this step-by-step walkthrough for replacing the rear differential sensor.Cost to Replace an ABS Wheel Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) | $150 - $250 |
| New Aftermarket | $26 - $121 |
| Shop Labor (Rear Sensor) | $75 - $150 |
Frequently Asked Questions
Where is the ABS sensor located on my 1994-2002 Ram 2500?
The most commonly replaced sensor is the rear ABS sensor, which is located on the top of the rear differential housing. If your truck has four-wheel ABS, you will also have sensors on the front wheels, which are part of the wheel hub and bearing assembly.
Can I replace just the front sensor, or do I need the whole hub?
The front ABS sensors are integrated into the wheel hub assembly. While some sensors can be unbolted and replaced separately, it is often easier and a better long-term repair to replace the entire hub assembly, especially on a high-mileage truck. This also replaces the wheel bearing at the same time.

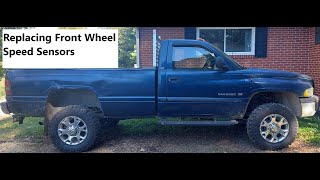

🎬 Watch a guide on replacing front wheel speed sensors.What if a new sensor doesn't fix the problem?
If a new sensor doesn't solve the issue, the problem likely lies elsewhere. Check the wiring and connector again for any damage or corrosion. You should also inspect the tone ring on the axle (for front sensors) or inside the differential (for the rear sensor) for damage or debris. In some cases, the problem could be the ABS control module itself, though this is less common.
Was there a recall for the ABS sensor on these trucks?
Searches for NHTSA recalls specifically for the ABS wheel speed sensor on the 1994-2002 Dodge Ram 2500 did not show a widespread campaign. While later model year Ram trucks have had recalls related to the ABS hydraulic unit, this specific part and year range does not appear to be covered by a major recall. Always check for any open recalls on your specific vehicle using its VIN on the NHTSA website.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56027905 5016133AA 56028187AD
The primary sensor for this application is the rear, differential-mounted sensor. It is a two-pin magnetic pickup sensor that reads a tone ring inside the differential. Front sensors, on models equipped with 4-wheel ABS, are integrated into the wheel hub assemblies.
