1994-2002 Dodge Ram 2500 Engine Oil Pressure Switch and Sensor Guide
Don't let a faulty oil pressure sensor leave you guessing about your engine's health.
- The factory oil gauge on many of these trucks is notoriously unreliable; consider an aftermarket mechanical gauge for true readings.
- Symptoms include a gauge that reads zero or is erratic, a 'Check Gauges' light, and oil leaking from the sensor itself.
- Replacement is difficult due to the sensor's location at the back of the engine (gas) or side of the block (diesel), requiring a special socket.
- For Cummins engines, verify if you need a 3-wire or single-wire sensor before purchasing, especially for the 2002 model year.
Understanding the Oil Pressure Gauge in Your Ram
If you own a 2nd Generation Ram, especially one with a Cummins diesel engine, you need to know that the factory oil pressure gauge can be misleading. Due to common failures of the original sensors, many of these trucks had a factory 'fix' that turned the gauge into a simple on/off indicator. This means the gauge may show a normal reading as long as there's minimal oil pressure, but it won't show you the actual, real-time pressure. Because of this, many owners choose to install a separate, more accurate mechanical oil pressure gauge.
Symptoms of a Failing Oil Pressure Switch
When the oil pressure sensor fails, it can cause a lot of confusion. Here are the most common signs that your sensor needs to be replaced:
- Gauge Reads Zero or Maxed Out: The most obvious sign is the oil pressure gauge dropping to zero or getting stuck at its highest reading.
- Erratic Gauge Behavior: The needle may flicker, jump around randomly, or give different readings every time you drive.
- 'Check Gauges' Light: A bad sensor can trigger the dashboard warning light, often accompanied by a chime.
- Oil Leaks: The sensor itself can fail and leak oil. Look for drips or oily residue on the sensor, which is located on the engine block.
Is It the Sensor or the Engine?

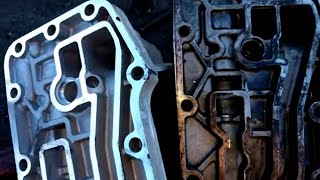

🎬 See a step-by-step walkthrough for diagnosing low pressure on a Cummins.Never assume a low oil pressure reading is just a bad sensor. Before driving, always check your oil level. If you hear any new engine noises like ticking, knocking, or grinding, shut the engine off immediately. Driving with low oil pressure can destroy your engine in minutes.
Choosing the Right Aftermarket Part
The original equipment (OEM) sensors on these trucks were known to fail, so choosing a quality aftermarket part is a very reasonable option. Aftermarket brands offer a range of quality and price points. They are generally categorized into tiers:
- Premium Aftermarket (e.g., Standard Ignition, Walker Products): These brands are well-known and produce parts designed to meet or exceed OEM specifications. They often feature better materials and undergo more rigorous testing, providing more reliability.
- Standard Replacement (e.g., Crown Automotive, Global Parts): These parts offer a good balance of price and quality. Crown, for example, specializes in parts for Chrysler vehicles and provides a direct-fit replacement. They are a solid choice for a daily driver on a budget.
- Economy Brands (e.g., store brands): While the lowest in price, quality can be inconsistent. Given the critical role of this sensor and the difficulty of replacement, it is often worth spending a little more for a part from a more reputable brand.
A Note on Cummins Engines
If you have a 5.9L Cummins, especially a 2002 model, you must verify your connector type 🎬 Watch this video to locate the sensor on a 2002 model. before ordering. Some trucks use a 3-wire connector while others use a single-wire. Check the existing sensor to ensure you buy the correct replacement.
Installation and Cost
Replacing the oil pressure sensor on the 1994-2002 Ram 2500 is a known challenge due to its location.
- On gas engines (5.2L & 5.9L V8): The sensor is located at the back of the engine block, near the distributor. Access is very tight, and you will likely be working by feel. 🎬 Watch this beginner-friendly guide for replacing the sensor on gas engines.
- On diesel engines (5.9L Cummins): The sensor is on the driver's side of the engine block, below the fuel filter and ECM on later models. Access is still tight.
You will need a special deep-well oil pressure switch socket to remove and install the sensor. Because of the difficult access, what looks like a simple job can be frustrating. A professional mechanic will typically charge for 1 to 1.5 hours of labor.
| Item | Cost Range |
|---|---|
| New Aftermarket Part | $23.47 - $99.80 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $125 - $300 |
Frequently Asked Questions
Can I still drive with a bad oil pressure sensor?
It is not recommended. If the sensor is bad, you have no way of knowing if your engine has safe oil pressure. If the gauge reads low, you risk severe engine damage if the problem is real and not just the sensor.
Why is my new sensor reading differently?
Different sensors can have slightly different calibrations. However, if your gauge used to be a 'dummy' gauge that never moved, a new, functioning sensor will show pressure fluctuations with engine RPM and temperature. This is normal. If the readings are erratic, the new sensor could be faulty or there could be a wiring issue.
Do I need a special tool for this job?
Yes, you will need an oil pressure sensor socket. This is a deep socket with a cutout for the wiring connector. A standard deep socket will not work. They are inexpensive and available at any auto parts store.
Is there a recall for the oil pressure sensor on these trucks?
No, there are no specific NHTSA recalls for the engine oil pressure sensor on the 1994-2002 Dodge Ram 2500. The common issue with the gauge was addressed by dealers on a complaint basis, not through a formal recall campaign.
Helpful Videos
Technical Specifications

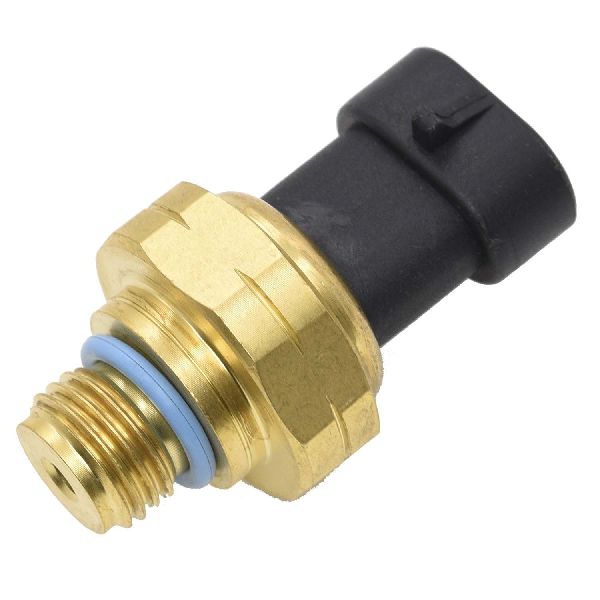

OEM Part Numbers: 56031005AB 4326849
Location varies by engine. Gas V8 models: rear of engine block near distributor. Cummins Diesel models: driver's side of engine block. A special oil pressure switch socket is required for removal and installation. Connector type (single vs. 3-wire) must be verified on Cummins models.
