Ford E-150 Econoline 1994-2002 Engine Valve Cover Gasket Replacement Guide
Stop that burning oil smell and keep your Econoline's engine leak-free with the right valve cover gasket set.
- You must correctly identify your engine (I6, V6, or V8) before ordering, as the gaskets are different for 1994-1996 and 1997-2002 models.
- Choose a top-tier aftermarket brand like Fel-Pro or Victor Reinz for a reliable, long-lasting seal; the extra cost is worth it given the difficult labor.
- This job is much harder on a van than a truck; V8 models are particularly difficult and may require removing the intake manifold for passenger-side access.
- Always replace the bolt grommets and consider replacing the PCV valve while you have everything apart to ensure a complete repair.
Is Your E-150 Leaking Oil? Signs of a Bad Valve Cover Gasket
When a valve cover gasket fails on your 1994-2002 Econoline, the signs are hard to ignore. These gaskets are made of rubber and live in a very hot environment. Over many years and miles, they become hard, brittle, and shrink, which stops them from sealing properly. Look for these telltale symptoms:
🎬 Watch: 6 common signs of a bad valve cover gasket- Burning Oil Smell: This is the most common sign. Oil leaks from the gasket and drips onto the hot exhaust manifold, creating a distinct burning smell you'll notice inside the van.
- Visible Oil Leaks: You will see dark, oily patches and grime collecting on the sides of the engine, right below the edge of the valve covers.
- Low Engine Oil: If you have to top off your oil more often than usual but don't see a puddle under the van, a slow leak from the valve cover gasket could be the cause.
- Oil in Spark Plug Wells (V8s): For the 4.6L and 5.4L V8 engines (1997-2002), the gasket set includes seals for the spark plug tubes. When these fail, oil fills up the wells, which can cause the engine to misfire, run rough, or hesitate on acceleration.
Engine Identification is Critical
The 1994-2002 E-150 used several different engines, and the gaskets are not interchangeable. Before ordering, you must know your engine:

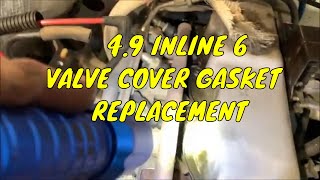

- 1994-1996: 4.9L Inline-6, 5.0L V8, 5.8L V8 🎬 Watch: Step-by-step gasket replacement for the 4.9L Ford engine
- 1997-2002: 4.2L V6, 4.6L V8, 5.4L V8
Always verify your van's model year and engine size to ensure you purchase the correct gasket set.
Choosing the Right Aftermarket Gasket Set
For a vehicle of this age, a quality aftermarket gasket is a smart choice and often meets or exceeds the original quality. The key is to choose a reputable brand that uses modern materials.
Brand Quality Tiers
Not all aftermarket brands are created equal. Here’s a breakdown of the brands available for your Econoline:
- Top Tier (OEM Quality or Better): Brands like Fel-Pro and Victor Reinz are the top choice for professionals and experienced DIYers. They are known for high-quality molded rubber that fits perfectly and provides a long-lasting seal. Fel-Pro, in particular, is often praised for being more forgiving on older engines with less-than-perfect sealing surfaces. These kits almost always include the necessary bolt grommets and spark plug tube seals.
- Performance Tier: Brands like Edelbrock and Cometic Gasket are geared more towards high-performance or rebuilt engines. Cometic's multi-layer steel gaskets require extremely clean and smooth surfaces to seal properly, making them less ideal for a standard replacement. Edelbrock offers quality gaskets, but they are often unnecessary for a stock repair.
- Standard/Economy Tier: Brands like Apex and Trans-dapt offer a more budget-friendly option. They claim to meet OEM specifications, but may not have the same longevity or precise fit as the top-tier brands. For a critical, labor-intensive job like this on a van, spending a little more for a top-tier gasket is highly recommended to avoid doing the job twice.
Pro Tip: Always Replace the Grommets
The small rubber grommets that seal the valve cover bolts are essential for a leak-free job. Old grommets become hard and crushed, preventing the bolts from applying even pressure on the new gasket. Quality gasket sets from brands like Fel-Pro include new grommets—make sure you use them.
Cost to Replace the Engine Valve Cover Gasket Set
The cost can vary significantly based on your engine type, as the V8 models require much more labor.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $17 - $95 |
| New OEM Gasket Set | $35 - $60 per side |
| Shop Labor | $200 - $500+ |
| Total Professional Replacement | $250 - $600+ |
Cost estimates are approximate and can vary by location and engine type. Labor for V8 models will be at the higher end of the range.
Frequently Asked Questions (FAQ)
How difficult is it to replace the valve cover gaskets on an E-150 van?
This job is significantly harder on a van than a truck. Access to the engine is through the interior "doghouse" cover. For V6 and I6 engines, it is moderately difficult. For V8 engines, it is a difficult job for a DIYer. The passenger side valve cover is especially challenging, often requiring removal of the upper intake manifold to gain access. This is not a job for a beginner.
🎬 See this walkthrough for replacing gaskets on V8 enginesAre there any recalls for leaking valve cover gaskets on this van?
No. There are no NHTSA or Ford recalls for this issue. Gasket leaks are considered a normal maintenance item due to the age and mileage of the vehicle.
What else should I replace at the same time?
Since getting to the valve covers is so much work, it's smart to replace other nearby items. Inspect and likely replace the PCV valve and its grommet, as a clogged PCV system can cause pressure buildup that leads to leaks. If you have a V8 and found oil in the spark plug wells, you should replace the spark plugs and check the ignition coil boots for oil damage.
Do I need to use RTV sealant with the new gasket?
In most cases, modern molded rubber gaskets are designed to be installed dry. However, a small dab of oil-resistant RTV sealant is often required at the sharp corners where the timing cover meets the cylinder head to prevent small leaks in those specific spots. Always follow the instructions included with your specific gasket set.
Helpful Videos
Technical Specifications
OEM Part Numbers: F7LZ-6584-AA 1L2Z-6584-AA 4C3Z-6584-CA 4L2Z-6584-BA
Material: Molded Rubber. Set should include main gaskets, spark plug tube seals (for V8 models), and bolt grommets.
