1994-2002 GMC Jimmy Neutral Safety Switch: A Complete Guide
If your Jimmy won't start or starts in the wrong gear, this critical sensor is the likely cause.
- If your Jimmy starts in Neutral but not Park, the neutral safety switch is the most likely problem.
- A complete no-start or non-working reverse lights also point directly to this switch.
- For this vehicle's age, a quality aftermarket brand like Standard Ignition or Dorman provides excellent value compared to OEM.
- When replacing, gently file the transmission shaft to ensure the new switch slides on without being damaged.
Is Your GMC Jimmy Having Starting Problems?
A faulty neutral safety switch is a common issue on the 1994-2002 GMC Jimmy and its siblings, the Chevy Blazer and Oldsmobile Bravada. Because this switch wears out over time, it can leave you stranded or create dangerous situations. Understanding the symptoms is the first step to getting your truck starting reliably again.
Common Failure Symptoms
When the neutral safety switch begins to fail, it will give you clear warning signs. Paying attention to these can save you from a tow truck.
- Starts in Neutral, But Not Park: This is the most common symptom. If you have to shift to Neutral to start your Jimmy, the switch is failing or out of alignment.
- No Crank, No Start: The engine does nothing when you turn the key in Park or Neutral. All the lights on the dash may come on, but the starter never engages. This can often be misdiagnosed as a bad starter or battery. 🎬 Watch: How to test your neutral safety and ignition switches.
- No Reverse Lights: Since the switch also controls the backup lights, check if they come on when you shift into Reverse. If they don't work, and you also have starting issues, the switch is almost certainly the problem.
- Starts in Any Gear: This is a serious safety hazard. If the switch shorts internally, it might allow the engine to start in Drive or Reverse, causing the vehicle to move unexpectedly. This requires immediate attention.
- Erratic Shifting: In some cases, a failing switch can send bad information to the transmission, causing it to shift poorly or get stuck in one gear.
Choosing the Right Aftermarket Switch
For a vehicle like the '94-'02 Jimmy, a new aftermarket neutral safety switch offers the best combination of quality and value. OEM parts can be expensive and may not offer a significant advantage on a 20+ year-old truck. Aftermarket brands provide reliable options at a much lower cost.
Aftermarket Brand Tiers
- Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Ignition (SMP) are known for producing high-quality components that meet or exceed original specifications. They often use better materials, like copper alloy conductors, and perform extensive testing. For owners who want the most reliable, long-lasting part, a premium brand is a strong choice.

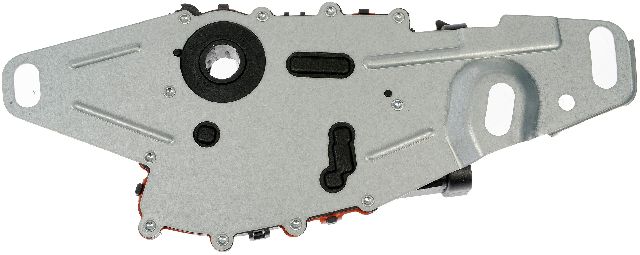

- OE-Equivalent (e.g., Dorman): Dorman is a well-known brand that specializes in creating direct replacements for factory parts. Their switches are designed to match the fit and function of the original, providing a reliable, cost-effective repair. They are a popular choice for DIY and professional repairs.
- Value-Priced (e.g., 'Replacement' or Store Brands): These are the most budget-friendly options. While they meet basic functional requirements, they may not have the same long-term durability or precise construction as premium brands. For a budget-conscious repair, they get the job done, but quality can vary.
Pro Tip: Prepare the Transmission Shaft
A common issue when replacing this switch is difficulty sliding the new part onto the transmission's shifter shaft. Over time, the shaft can develop burrs or corrosion. Forcing the new switch on can damage its plastic internal components. Before installation, inspect the shaft and use a small file to gently smooth any rough spots to ensure the new switch slides on easily.
Estimated Replacement Costs
The cost to replace the neutral safety switch depends on whether you do it yourself or take it to a shop.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $47 - $91 |
| Shop Labor | $100 - $225 |
| Estimated Total (Shop) | $147 - $316 |
Frequently Asked Questions
Can I replace the neutral safety switch myself?

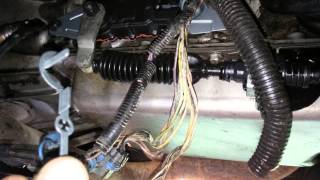

Yes, this is a very manageable DIY job for someone with basic mechanical skills and tools. The switch is located on the driver's side of the transmission. The process involves safely raising the vehicle, disconnecting the battery, removing two electrical connectors, 🎬 See how to unplug the connectors without breaking them. unbolting the shift linkage arm (15mm nut), and then removing the two bolts holding the switch. The key is proper alignment of the new switch, which often comes with a small tool or is pre-set for installation in the Neutral position.
🎬 Watch this easy walkthrough for replacing the switch yourself.Are there any recalls for the GMC Jimmy neutral safety switch?
No, there are no specific recalls from GMC or the NHTSA for the neutral safety switch on the 1994-2002 GMC Jimmy. While GM has had major recalls for ignition switches on other models, they do not apply to this part or vehicle.
Why does my Jimmy only start when I wiggle the shifter?
If wiggling the gear shifter allows the engine to start, it's a classic sign of a worn or misaligned neutral safety switch. The movement temporarily makes the correct electrical contact inside the switch. This is a clear indication that the switch needs to be replaced soon.
Could my no-start problem be something else?
Yes. While the neutral safety switch is a common culprit, a no-start condition can also be caused by a dead battery, poor battery connections, a bad starter motor, or a faulty ignition switch. However, if the vehicle starts in Neutral but not Park, the neutral safety switch is the most likely cause.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15705308 24229422 88996477
Located on the driver's side of the 4L60E automatic transmission. The switch has two separate electrical connectors.
