Engine Timing Set Replacement for 1994-2002 Jeep Cherokee XJ
Keep your legendary 4.0L engine running strong by knowing when and how to replace your timing set.
- The timing chain on the 4.0L engine is durable but typically needs replacement after 150,000 miles due to stretching.
- Symptoms include engine rattle, sluggish performance, and potentially a check engine light.
- Quality aftermarket brands like Melling and Cloyes are reliable choices for this repair.
- It is highly recommended to also replace the water pump, timing cover gasket, and front crank seal during the job.
Is It Time for a New Timing Set?
The 4.0L inline-six engine in your 1994-2002 Jeep Cherokee XJ is known for its durability, and its timing chain is no exception. These chains often last well over 150,000 miles. However, they don't last forever. The most common issue is the chain stretching over time. A stretched chain can cause slack, leading to a variety of engine problems. Unlike many other vehicles, the 4.0L is a non-interference engine, which means a broken timing chain is unlikely 🎬 Watch this overview of common timing chain failure signs. to cause catastrophic internal damage to the valves and pistons. Still, a failing chain will cause poor performance and should be replaced.
Symptoms of a Failing Timing Set
Spotting the signs of a worn timing set early can save you from a breakdown. Here’s what to look and listen for:
- Engine Rattle: A loose timing chain may rattle or slap against the inside of the timing cover, especially on startup or at idle.
- Sluggish Performance: If the chain has stretched, the camshaft and crankshaft timing will be slightly off. This can make your Jeep feel sluggish and unresponsive, especially when trying to accelerate at highway speeds.
- Rough Idle: Incorrect timing can lead to a rough or unstable idle.
- Check Engine Light: A stretched chain can cause camshaft and crankshaft position correlation codes, such as P0016, to be stored in the computer, triggering the check engine light.
- Metal Shavings in Oil: In severe cases, the chain may make contact with other metal parts. You might find small metal flakes in your engine oil during an oil change, which could be a sign of the chain hitting the cover. 🎬 See a detailed breakdown of these five major symptoms.
Pro Tip: Checking for Slack
A simple way to check for timing chain slack is to remove the distributor cap and turn the engine over by hand using a socket on the crankshaft bolt. Watch the distributor rotor and see how much you can turn the crank before the rotor begins to move. Any significant play indicates a stretched chain.
Choosing the Right Aftermarket Timing Set
When it comes to replacing the timing set on the robust 4.0L engine, a quality aftermarket kit is often a smart and cost-effective choice. Many aftermarket brands meet or exceed OEM specifications. Here’s a breakdown of some popular brands:
- Premium Aftermarket (OEM Quality): Brands like Melling and Cloyes are highly regarded in the industry for timing components. They are known for their durability and are often made in the USA. These are excellent choices for a stock or mildly modified engine and are considered a reliable upgrade from the factory parts.
- Jeep-Specific Aftermarket: Brands like Crown Automotive and Omix-Ada specialize in Jeep parts. Their quality can be very good, and they often provide complete kits that include gaskets and hardware. They are a solid choice for owners looking for a direct-fit replacement.
- Budget-Friendly Options: Brands like DNJ Engine Components and DJ Rock offer more affordable solutions. While they can be a good value, it's important to ensure they meet quality standards for such a critical component. For a long-lasting repair, sticking with a more established brand is often recommended.
A Note on Double Roller Chains
Some performance-oriented kits from brands like COMP Cams offer a "double roller" chain. These are stronger and reduce stretch, making them a great upgrade for high-mileage rebuilds or performance applications. However, for a daily-driven Cherokee, a quality standard replacement set is usually more than sufficient.
Estimated Cost for Timing Set Replacement
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $72 - $185 |
| Shop Labor | $500 - $800 |
| Total Estimated Cost | $572 - $985 |
Note: Costs are estimates and can vary based on your location and the specific parts chosen. This job is labor-intensive, so labor costs make up a significant portion of the total price.
Frequently Asked Questions (FAQ)
Do I really need to replace my timing chain?
If your Jeep has over 150,000-200,000 miles and you're experiencing symptoms like engine rattle, sluggish performance, or a rough idle, it's very likely the original timing chain has stretched. While the 4.0L is a non-interference engine, a worn chain will negatively impact performance and could eventually fail.
Should I replace the water pump and other parts at the same time?
Yes, this is highly recommended. The replacement job requires removing the water pump, harmonic balancer, and timing cover. Since you're already paying for the labor to access this area, it's smart to replace these wear-and-tear items at the same time to avoid future problems. Consider a new water pump, timing cover gasket, and front crankshaft seal.
Is this a DIY-friendly job?
For the experienced home mechanic, yes. However, it is a labor-intensive job that requires specific tools, like a harmonic balancer puller. It involves draining the coolant, removing the radiator (for better access), and disassembling the front of the engine. If you are not comfortable with this level of work, professional installation is recommended. 🎬 Follow this step-by-step guide to replace your 4.0L timing chain. The job can take a skilled mechanic 5-8 hours.
What's the difference between a timing chain and a timing belt?
Your Jeep Cherokee 4.0L uses a metal timing chain, which is located inside the engine and lubricated by oil. Other vehicles use a rubber timing belt, which is outside the engine and needs to be replaced more frequently. Chains are designed to last much longer than belts.
Helpful Videos
![Top 5 Symptoms of a BAD TIMING CHAIN [What to Look Out For]](https://img.youtube.com/vi/7beQX8cE-18/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 53020444KE 53020444K-L

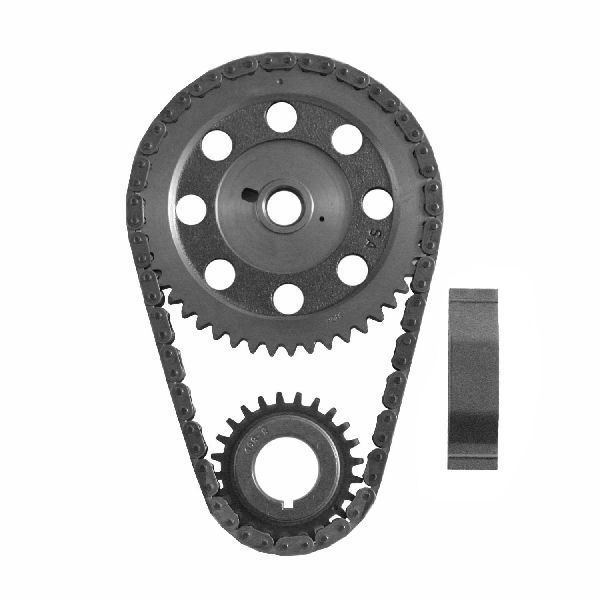

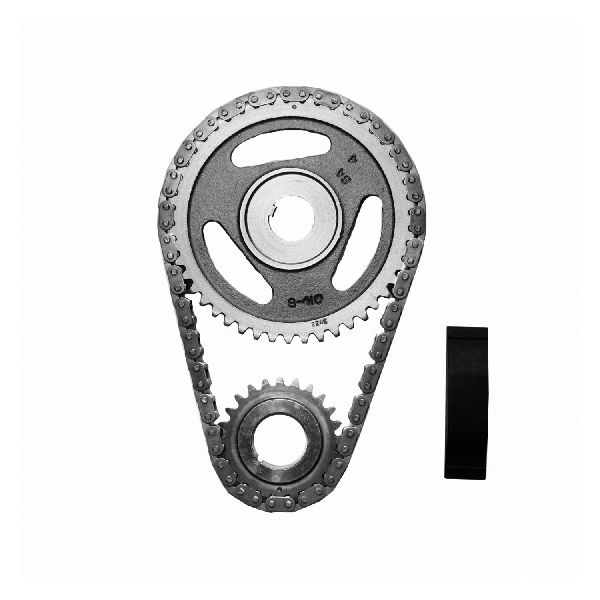

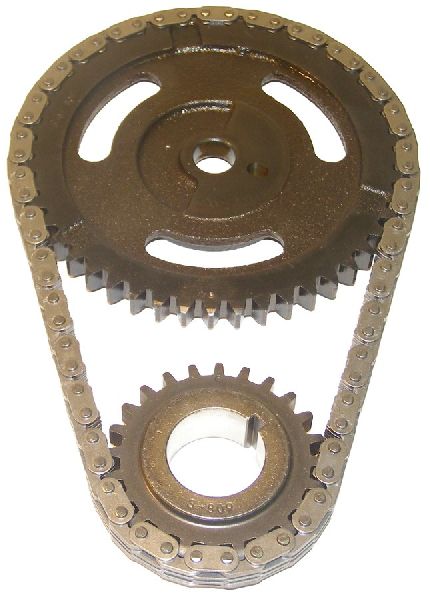

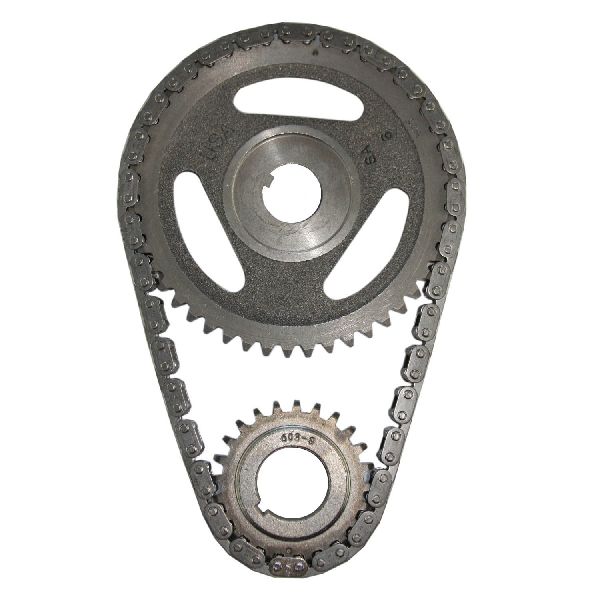

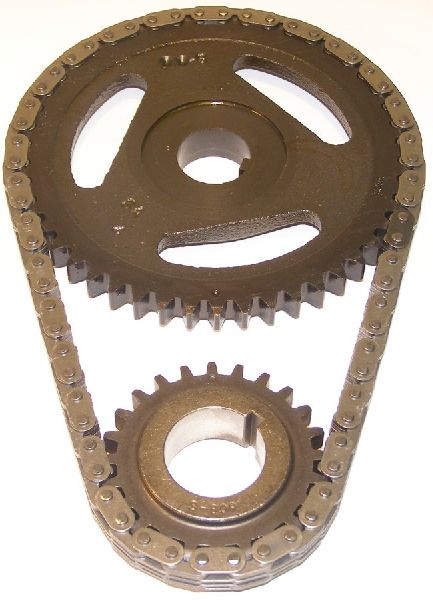

The timing set for the 4.0L engine consists of a single link-belt style chain, a camshaft sprocket (48 teeth), and a crankshaft sprocket (24 teeth). Some kits also include a chain guide/damper.
