1994-2002 Mercury Cougar Automatic Transmission Output Shaft Speed Sensor Guide
Solve erratic shifting and speedometer problems by understanding and replacing your Cougar's output shaft speed sensor.
- A failing output speed sensor is a common issue that causes harsh shifting, speedometer failure, and an illuminated Check Engine Light with code P0720.
- The part is different for 1994-1997 (RWD) and 1999-2002 (FWD) Cougars; verify your vehicle's specific generation before buying.
- Replacement is a simple DIY job for most owners, requiring basic tools and access to the side of the transmission.
- High-quality aftermarket brands like NGK or Standard Ignition offer a reliable and affordable alternative to OEM parts.
Understanding Your Cougar's Generations
It's important to know that the 1994-2002 Mercury Cougar spans two very different vehicle platforms, which use different transmissions and sensors. Always verify the part fits your specific year and engine before ordering.
- 1994-1997 Cougar: This rear-wheel-drive (RWD) generation uses the 4R70W automatic transmission. The output speed sensor is typically located on the driver's side rear of the transmission case.
- 1999-2002 Cougar: This front-wheel-drive (FWD) generation uses the CD4E automatic transaxle. The output speed sensor is located externally on the transmission housing, often accessible from under the car or in the engine bay.
Symptoms of a Failing Output Speed Sensor
When the OSS begins to fail, it can cause a number of noticeable problems. Because the computer receives incorrect or no speed data, the transmission can behave unpredictably. You might experience one or more of the following issues:
- Erratic or Harsh Shifting: The transmission may shift at the wrong times, slam into gear, or feel like it's slipping.
- Check Engine Light: A failing sensor will often trigger a Check Engine Light and store diagnostic trouble codes like P0720, P0721, or P0722.
- Inoperative Speedometer: The speedometer may stop working entirely, or the needle might jump around randomly.
- Cruise Control Not Working: The cruise control system relies on speed data from the OSS, so it will likely stop working if the sensor fails.
- Flashing Overdrive (O/D) Light: On older models, a flashing O/D light is a common indicator of a transmission-related fault, including a bad speed sensor.
Known Issues and TSBs
While no specific recalls or Technical Service Bulletins (TSBs) were found for the 1994-2002 Cougar's output speed sensor during our search, Ford has issued TSBs for similar models with related transmissions (like the 6F35 and 6R80) for DTCs P0720 and P0722. These issues were sometimes caused by the sensor itself or related wiring. Forum discussions among owners of cars with the 4R70W and CD4E transmissions confirm that OSS failure is a known problem that causes the symptoms listed above.
Choosing the Right Aftermarket Sensor
For a vehicle like the 1994-2002 Cougar, a quality aftermarket sensor is a perfectly reliable and cost-effective choice compared to finding a New Old Stock (NOS) OEM part. The key is to choose a brand with a good reputation for electronic components.

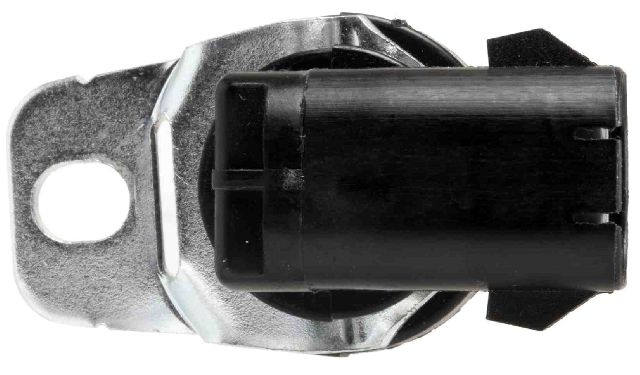

- Premium Aftermarket (NGK, Standard Ignition): Brands like NGK (also known as NTK for sensors) and Standard Motor Products (SMP) are well-regarded for producing sensors that meet or exceed original equipment (OE) specifications. They are often a top choice for reliability and a direct fit.

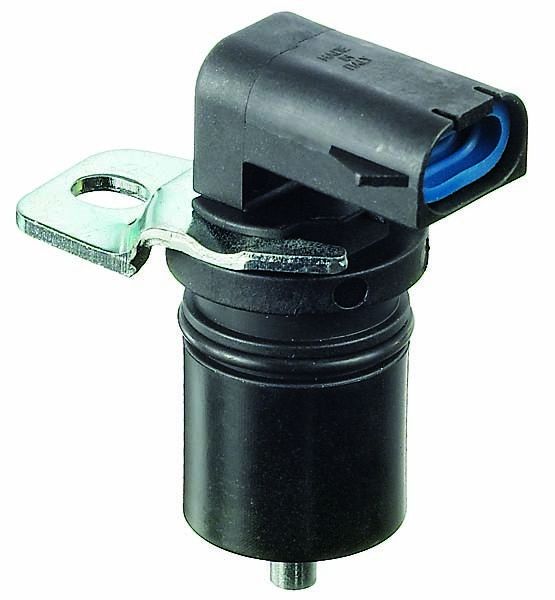

- Standard Aftermarket (Facet, True Tech): These brands offer a solid balance of quality and value. They are a good option for budget-conscious repairs and are widely available.
Ultimately, any of the available aftermarket brands will restore function. The main difference often comes down to warranty, brand reputation, and price point.
Pro Tip: Check the Connector
Before ordering, it's a good idea to visually inspect the sensor on your vehicle. Pay close attention to the shape of the electrical connector and the number of pins. This simple check can prevent the headache of ordering the wrong part, especially given the two different Cougar generations covered.
Cost of Replacing the Output Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $28.91 - $56.37 |
| Shop Labor | $80 - $150 |
| Total Estimated Cost | $108.91 - $206.37 |
Cost estimates are based on national averages and may vary by location and vehicle specifics. The price range reflects the available aftermarket brands.
Frequently Asked Questions (FAQ)
Can I replace the output speed sensor myself?
Yes, this is a DIY-friendly job for most home mechanics. The sensor is externally mounted on the transmission and is usually held in by a single bolt. The main steps involve safely lifting the vehicle, disconnecting the electrical connector, removing the bolt, and swapping the sensor. On some older models, the sensor can be stuck in the transmission case and may require some gentle persuasion to remove.
Where is the output speed sensor located on my Cougar?
For 1994-1997 RWD models with the 4R70W transmission, the sensor is on the left-hand (driver's side) of the transmission, toward the rear. For 1999-2002 FWD models with the CD4E transaxle, it is also on the outside of the transmission case, but its exact position can vary. You may need to remove the air filter box to get a clear view.
What is the difference between an input and output speed sensor?
The transmission uses two main speed sensors. The Input Shaft Speed (ISS) sensor measures how fast the input shaft is spinning (engine speed after the torque converter). The Output Shaft Speed (OSS) sensor measures how fast the output shaft is spinning (wheel speed before the differential). The computer compares both signals to verify the transmission is in the correct gear.
Will a bad sensor damage my transmission?
While the bad sensor itself won't cause direct mechanical damage, the symptoms it causes can. Harsh, slamming shifts put extra stress on internal transmission components like clutches and gears. Driving for an extended period with a faulty sensor can lead to premature transmission wear. It's best to replace the sensor as soon as you notice a problem.
Technical Specifications
OEM Part Numbers: F4AP-7H103-AA
The sensor is an externally mounted, magnetic pickup sensor that generates a signal based on the rotation of a toothed wheel on the transmission's output shaft. It typically features a 2-pin or 3-pin electrical connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
