A Guide to Replacing Your 1994-2002 Pontiac Firebird Brake Calipers
Solve common brake problems like pulling, dragging, and seizing by choosing the right calipers for your Firebird.
- Crucially, 1998-2002 LS1 models have different and better front and rear calipers than 1994-1997 LT1/V6 models; parts are not directly interchangeable.
- Always replace calipers in pairs (both fronts or both rears) to ensure safe, balanced braking.
- A sticking caliper is the most common failure; symptoms include pulling, a hot wheel, and a burning smell.
- Before replacing a caliper, check the flexible rubber brake hose, as an internal collapse can cause identical symptoms.
Is Your Firebird's Caliper Failing?
Brake calipers live a hard life, exposed to extreme heat and road grime. On a car like the 1994-2002 Firebird, they are a common wear item. A failing caliper isn't just an inconvenience; it's a major safety issue. The most common failure is a seized or sticking caliper piston or slide pins. This can cause the brake on one wheel to be constantly applied, even when you're not on the pedal.
Symptoms of a Bad Brake Caliper:
- Vehicle Pulling: The car pulls to the left or right when you brake, or even while driving straight.
- Brake Drag: You feel a lack of power or poor fuel economy because a brake is constantly dragging.
- Hot Wheel & Burning Smell: After a drive, one wheel is significantly hotter than the others, often with a strong burning smell.
- Brake Fluid Leaks: You see puddles of fluid, which looks like light oil, near your wheel.
- Uneven Brake Pad Wear: The inner and outer brake pads on one caliper, or the pads on one side of the car, wear out much faster than the others.
- Squealing or Grinding Noises: Persistent noise that doesn't go away could point to a stuck caliper.
Pro Tip: Check Your Brake Hoses!
Before you replace a caliper for sticking, inspect the flexible rubber brake hose that connects to it. Over time, these hoses can collapse internally. This creates a one-way valve that traps brake fluid in the caliper, mimicking a seized caliper. If you install a new caliper with a bad hose, the problem will return. It's often wise to replace these inexpensive hoses at the same time as the caliper, especially on an older vehicle.
Choosing the Right Aftermarket Caliper
You have two main choices: a fully new caliper or a remanufactured one. New calipers are made from 100% new materials, while remanufactured calipers use the original factory housing (core) that has been cleaned, inspected, and rebuilt with new seals, pistons, and hardware. For a daily driver, a quality remanufactured caliper is usually a perfectly reliable and cost-effective choice.
Brand Quality Tiers
Not all brands are created equal. Here’s a breakdown based on owner experiences and general reputation for your Firebird.
- Performance Upgrade (Mild): Brands like Powerstop offer complete kits, often with powder-coated calipers (usually red), upgraded pads, and drilled/slotted rotors. The calipers are typically quality remanufactured units. This is a good option if you want improved aesthetics and a modest performance gain for street driving.
- Premium OE-Style Replacement: ACDelco (GM's official parts brand) and Raybestos are top choices here. They offer both new and remanufactured calipers that meet or exceed original specifications. Choosing a new caliper from these brands provides the highest confidence in quality and longevity.
- Standard Replacement: Centric and the standard remanufactured lines from Raybestos and ACDelco are excellent, reliable choices for daily driving. They offer a great balance of quality and price.
- Economy Brands: Brands like Cardone and various store-brand calipers are available at a lower price point. While functional, forum discussions indicate that quality control can be inconsistent, with a higher chance of premature failure. For a critical safety component like a caliper, it's often worth spending a little more for a more reputable brand.
Common Ordering Mistake: LT1 vs. LS1 Brakes
The single most important factor when ordering calipers for your Firebird is knowing which brake system you have. This is based on the model year and engine.
- 1994-1997 Models (LT1 V8 & V6): These cars have single-piston cast iron front calipers and a rear caliper with an integrated parking brake mechanism.

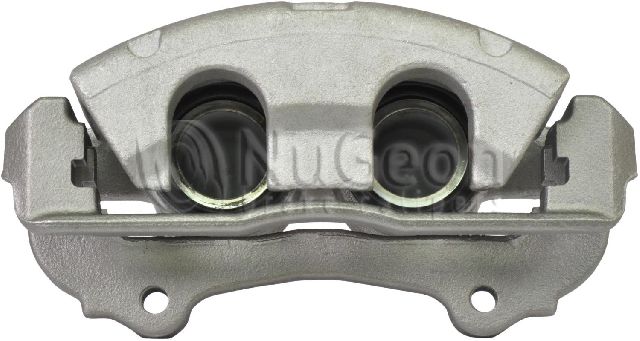

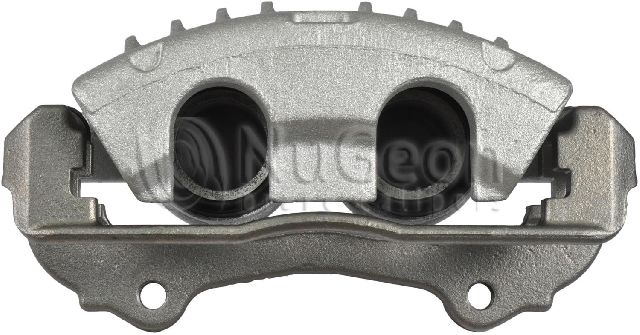

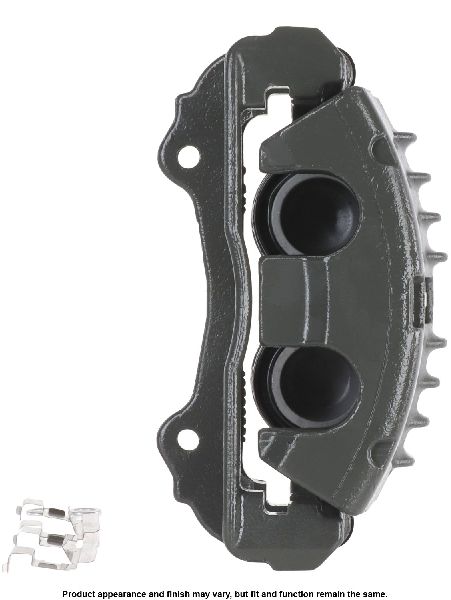

- 1998-2002 Models (LS1 V8): These cars received a significant brake upgrade. They feature lighter, stiffer, dual-piston aluminum front calipers and a different rear caliper design, as the parking brake is a separate drum system inside the rotor hat.
These parts are not interchangeable without swapping other components like spindles and backing plates. Always confirm your year and model before ordering.
Cost of New Aftermarket Calipers for a 1994-2002 Pontiac Firebird
| Part | Price Range |
|---|---|
| New Aftermarket Disc Brake Caliper (Each) | $41.91 - $186.80 |
| Shop Labor for Installation (Per Pair) | $150 - $300 |
Prices are estimates and can vary based on brand, location, and whether the caliper is new or remanufactured. Most remanufactured calipers require a "core charge" until you return your old part.
Frequently Asked Questions
Should I replace brake calipers in pairs?
Yes, absolutely. You should always replace calipers in pairs (both front or both rear) to ensure even braking performance. A new caliper will apply pressure differently than an old, worn one, which can cause dangerous pulling and instability.
What's the difference between a new and a remanufactured caliper?
A new caliper is built from all-new components. A remanufactured caliper uses the original OEM housing, which is stripped, cleaned, and rebuilt with new seals, boots, and often a new piston. For most applications, a quality remanufactured caliper from a good brand like Centric, Raybestos, or ACDelco is a reliable and cost-effective option.
Do I need to bleed the brakes after replacing a caliper?
Yes. Any time you open the hydraulic system, you introduce air. You must bleed the brake system to remove all air bubbles, or the brake pedal will feel spongy and unsafe. It's best to bleed all four wheels, starting with the one furthest from the master cylinder.
What are phenolic vs. steel pistons?
You may see options for calipers with phenolic (a type of composite resin) or steel pistons. Phenolic pistons don't corrode and transfer less heat to the brake fluid, which is good for street use. Steel pistons are stronger and more durable, making them better for high-performance or track applications. For a stock or daily-driven Firebird, either type is acceptable, and you should choose the one that matches the original equipment.
Technical Specifications
Front Calipers (1994-1997): Single-piston, cast iron body. Front Calipers (1998-2002): Dual-piston, aluminum body. Rear Calipers (1994-1997): Single-piston with integrated mechanical parking brake mechanism. Rear Calipers (1998-2002): Single-piston, designed for use with a separate drum-in-hat parking brake system.
