Pontiac Firebird Engine Water Pump Guide (1994-2002)
Keep your Firebird's LT1 or LS1 engine cool by understanding its specific water pump needs before you buy.
- Identify your engine first: 1994-1997 models have the gear-driven LT1 pump, while 1998-2002 models have the belt-driven LS1 pump. They are not interchangeable.
- For LT1 owners, a leaking water pump is urgent. Coolant can leak onto the Optispark distributor below, causing costly ignition failure.
- For most owners, a quality aftermarket brand like ACDelco, Gates, or Dayco offers the best balance of price and reliability.
- Always replace the thermostat at the same time as the water pump and use the correct type of coolant to protect your new parts.
Engine Generation Matters
When shopping for a new water pump for your 1994-2002 Pontiac Firebird, the single most important factor is your engine. This generation of Firebird used two different V8 engines, and their water pumps are completely different.

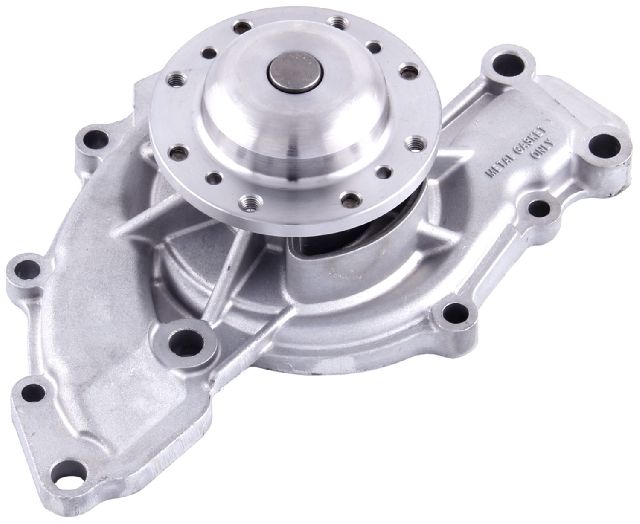

- 1994-1997 Firebird (LT1 Engine): These models use a unique gear-driven water pump. It is mounted to the front of the engine block and driven internally by the camshaft timing gear. A common failure point is the seal, which can leak coolant directly onto the Optispark distributor located below it, causing ignition problems.

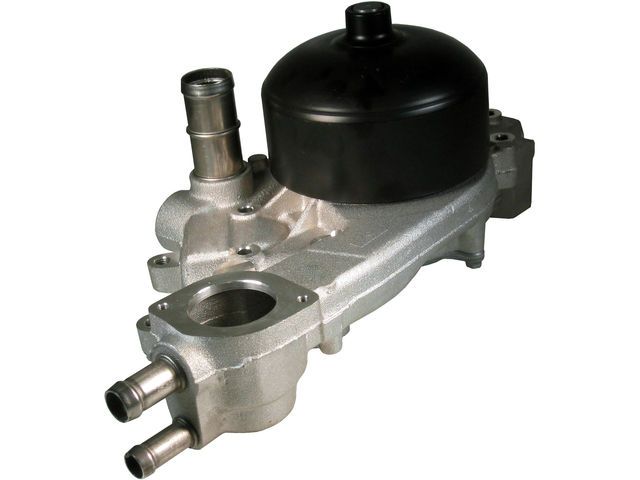

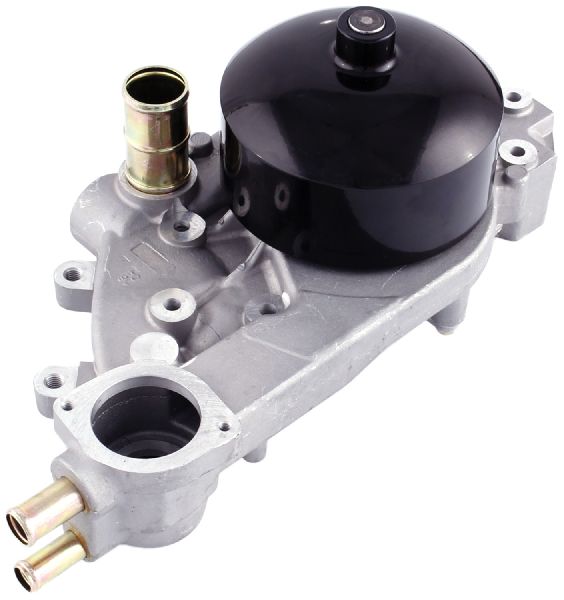

- 1998-2002 Firebird (LS1 Engine): These models use a more conventional belt-driven water pump. It is mounted to the front of the engine and the pulley is spun by the main serpentine belt. While more straightforward, they are still a critical wear item. 🎬 Watch this step-by-step LS1 water pump replacement guide.
Signs of a Failing Water Pump
A bad water pump will give you a few warning signs before it fails completely. Ignoring them can lead to your engine overheating, which can cause catastrophic damage like a warped cylinder head or blown head gasket.
Key Symptoms
- Coolant Leaks: Puddles of green or orange coolant under the front-center of your car are a major red flag. On LT1 engines, the leak often comes from the pump's "weep hole," which is designed to leak when the internal seal fails. This weep hole is unfortunately located directly above the distributor.
- Engine Overheating: If your temperature gauge is climbing higher than normal, especially in traffic, the pump may not be circulating coolant effectively.
- Grinding or Whining Noise: A high-pitched whine or a rough grinding sound from the front of the engine can indicate a failing bearing inside the water pump. This sound will usually change with engine RPM. 🎬 Watch how to diagnose a failing water pump yourself.
- Steam from Engine Bay: If you see steam coming from under the hood, pull over immediately. This means coolant is hot enough to boil and is escaping the system.
Choosing the Right Aftermarket Water Pump
You don't need to go to a dealership to get a quality water pump. Aftermarket brands offer a wide range of options, from basic replacements to high-performance upgrades. Here's a breakdown of common brand tiers.
Brand Quality Tiers
- OEM & Premium Aftermarket (ACDelco, Gates, Dayco): ACDelco is the original GM parts brand, and their parts are often considered the benchmark for fit and quality. However, be aware of their different product lines; the "Professional" series may be made overseas, while the "OE" line is closer to the factory original. Gates and Dayco are also trusted names in cooling systems, with many mechanics considering them equivalent to OEM quality. These brands are a reliable choice for daily drivers.
- Performance (Edelbrock, PRW): Brands like Edelbrock offer high-flow water pumps designed for modified or high-performance engines. They claim to improve cooling efficiency with better impeller designs. These are often more expensive and may require other modifications, like different belt sizes, for a proper fit. They are a good option for enthusiasts looking to maximize cooling on a built engine.
- Standard/Economy (GMB, WJB, US Motor Works): These brands provide a budget-friendly alternative. GMB is a long-standing company that serves as an OE supplier for some carmakers. However, owner reviews for these economy brands are mixed. Some have experienced premature failures or fitment issues. These pumps can be a viable option if the budget is tight, but be aware of potential quality control differences.
Pro Tip: LT1-Specific Concerns
For 1994-1997 LT1 owners, a water pump failure is more critical due to the risk of damaging the Optispark distributor. When replacing the pump, it is highly recommended to also replace the water pump drive seal behind it to prevent future leaks. 🎬 See these essential tips for installing the LT1 pump seal. It is also a good time to inspect the Optispark for any signs of moisture contamination.
Replacement Cost
The cost to replace a water pump depends on your engine and whether you do the work yourself or hire a professional. The LT1 pump is more complex to replace due to its gear-driven design.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $40 - $360 |
| Shop Labor (LS1) | $200 - $350 |
| Shop Labor (LT1) | $300 - $500 |
Frequently Asked Questions
Is an electric water pump a good upgrade for my Firebird?
Electric water pumps are a popular modification, especially for LT1 engines, as they eliminate the complex gear drive and can free up a small amount of horsepower. They also allow the pump to run after the engine is shut off, helping to cool down a hot engine at the track. Brands like Meziere and PRW offer kits. However, they are more expensive and add electrical complexity. For a stock or daily-driven car, a quality mechanical pump is usually sufficient.
Do I need to replace my thermostat with the water pump?
It is highly recommended. The thermostat is a low-cost part, and you'll already have the cooling system drained and accessible. Replacing it at the same time as the water pump is cheap insurance against a future failure.
What kind of coolant should I use in my 1994-2002 Firebird?
Always check your owner's manual for the specific coolant type. Generally, these engines used traditional green Inorganic Acid Technology (IAT) coolant. Using the wrong type of coolant can cause corrosion and damage to cooling system components, including the new water pump.
Are there any recalls for the water pump on the 1994-2002 Firebird?
A search of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls for the water pump on this generation of Pontiac Firebird. However, coolant leaks from the pump are a well-documented common problem, especially on the LT1 models.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12700555 12685731
Engine-specific design. 1994-1997 models use a camshaft gear-driven pump. 1998-2002 models use a serpentine belt-driven pump.
