BMW 540i (E39) Front Suspension Strut Bellows and Bump Stops Explained
Don't let a simple, torn rubber boot lead to a costly strut replacement on your 1994-2003 540i.
- A torn strut bellow on your E39 540i guarantees the eventual failure of the entire strut assembly.
- The only symptom of a bad bellow is visible damage; inspect them for tears during tire rotations.
- Replacement requires strut disassembly and a spring compressor, a job best left to a professional mechanic.
- High-quality aftermarket brands like Febi and KYB offer excellent, cost-effective replacements.
Why a Simple Rubber Boot Matters on Your E39 540i
On a performance sedan like the BMW 540i, the suspension is critical to its driving dynamics. The strut bellows are a simple but essential part of that system. Think of them as inexpensive insurance for your expensive front struts. When a bellow fails, the strut is left exposed. It's not a question of if the strut will fail, but when. This guide covers the symptoms of a failed bellow and how to choose the right aftermarket replacement for your 1994-2003 540i, focusing primarily on the popular E39 generation (1995-2003).
Symptoms of a Failing Strut Bellow
Unlike a bad strut, a failed bellow won't immediately change how your car drives. The main symptom is one you have to look for during an inspection.
- Visible Damage: This is the most direct sign. Look behind your front wheels at the strut assembly. If you see the rubber cover is cracked, split, torn, or crumbling, it has failed and needs to be replaced. It's common for the original material to become brittle and compressed over time.
- Future Strut Failure: A torn boot will eventually lead to strut failure. Symptoms of a failed strut include a bouncy or floaty ride, clunking noises over bumps, the front of the car diving during braking, and uneven tire wear. If you see these symptoms, your strut has likely already failed due to the damaged bellow.
Pro Tip: Inspect Often
Make it a habit to inspect the strut bellows every time you have the wheels off for a tire rotation or brake work. Catching a tear early can save you hundreds of dollars.
Choosing the Right Aftermarket Strut Bellows
You don't need to buy a genuine BMW part for this component. High-quality aftermarket brands offer excellent durability and value, often from the same companies that supply BMW. The bellow is almost always sold as a kit with a new foam bump stop (or jounce bumper), which is the cushion that prevents the suspension from bottoming out. It's critical to replace both at the same time.
Brand Tiers for Your 540i

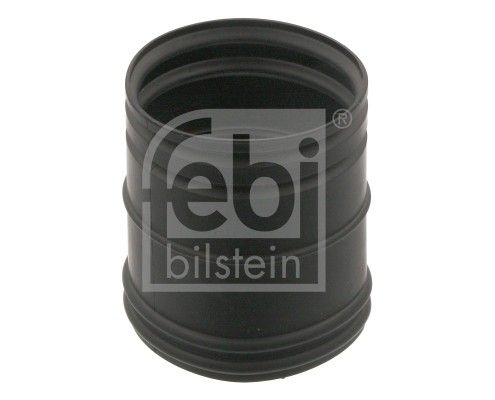

- OEM-Quality (Recommended): Brands like Febi and KYB are well-regarded for producing parts that meet or exceed original specifications. Febi is a trusted name for European vehicles, while KYB is a massive global OEM supplier known for quality suspension components. These are a reliable, cost-effective choice.
- Heavy-Duty / Performance: Moog is known for engineering durable parts, sometimes beefier than the original. While often a top choice for suspension components, for a simple bellow, the OEM-quality brands are typically sufficient and provide a better value.
- Budget-Friendly: Brands like Skyward fall into the economy category. While the price is low, the long-term durability of the rubber or plastic may not match the premier brands. For a critical protective part on a high-performance car, sticking with a known brand like Febi or KYB is a safer investment.
| Part Type | Cost (per pair) |
|---|---|
| New OEM (Dealer) | $80 - $150 |
| New Aftermarket (Febi, KYB, etc.) | $15 - $80 |
| Shop Labor | $300 - $500 |
Note: Costs are estimates. Labor is high because the entire strut assembly must be removed and disassembled to replace the bellow. An alignment ($100-$200) is also highly recommended after this service.
Warning: Spring Compressors are Dangerous
This job requires the use of a spring compressor tool to safely remove the coil spring from the strut. These tools are under extreme tension and can cause serious injury or death if they slip or fail. This repair should only be attempted by experienced mechanics with the proper equipment.
Frequently Asked Questions (FAQ)
Do I need to replace bellows in pairs?
Yes. The material on both sides of the car has aged and been exposed to the same conditions. If one has failed, the other is not far behind. It is standard practice to replace suspension components in pairs to ensure even wear and performance.
What is the difference between a bellow and a bump stop?
The bellow is the outer accordion-style dust cover. The bump stop is a foam or rubber cylinder that sits on the strut rod inside the bellow. Its job is to prevent damage by stopping the suspension from bottoming out on a hard impact. They should always be replaced together.
My bellow is torn but the car drives fine. Can I wait to replace it?
You can, but it's not recommended. A torn bellow guarantees the future failure of the much more expensive strut. Every mile you drive with a torn boot allows more dirt and moisture to destroy the strut's seal. Replacing the bellow is preventative maintenance that saves you money in the long run.
Does this part fit both E34 and E39 generation 540i models?
The 1994-2003 year range spans two different generations of the 540i: the E34 and the E39. While they both use front strut bellows, the parts are not interchangeable. This guide focuses on the E39 (1995-2003), but always verify the part fitment for your specific year and model before ordering.
Technical Specifications
OEM Part Numbers: 31331093343 31331091708 31352298912
Fits front strut assembly for BMW E39 platform vehicles. Typically includes one bellow (dust boot) and one internal bump stop (jounce bumper) per kit.
