Engine Water Pump Replacement Guide for 1994-2003 Chevrolet Camaro
Choosing the correct water pump for your V6, LT1, or LS1 engine is critical to prevent leaks and overheating.
- You MUST correctly identify your engine (3.4L V6, 3.8L V6, LT1 V8, or LS1 V8) before ordering, as the pumps are not interchangeable.
- For 1994-1997 LT1 models, protecting the Opti-Spark distributor below the water pump from coolant spills is critical to avoid a more costly repair.
- A coolant leak from the weep hole is the earliest and most common sign of water pump failure.
- While replacing the pump, it is highly recommended to also replace the thermostat, gaskets, and coolant for long-term reliability.
Is Your Camaro's Water Pump Failing?
A bad water pump gives clear warning signs. Ignoring them can lead to expensive engine repairs. If you notice any of these symptoms, it's time to inspect your water pump.
🎬 Watch: 5 common symptoms of a failing water pump- Coolant Leak: This is the most common sign. You may see a puddle of green or orange fluid under the front of your engine. The leak usually comes from the pump's 'weep hole,' a small opening that allows coolant to escape when the internal seals fail.
- Engine Overheating: If the pump can't circulate coolant, your engine's temperature will rise, especially during idle or in traffic. Continuing to drive an overheating car can cause severe damage like a warped cylinder head.
- Whining or Grinding Noise: A high-pitched whine or a grinding sound from the front of the engine that changes with RPM is often a sign of a failing bearing inside the water pump.
- Wobbly Pulley: If you can physically move the water pump pulley back and forth, the internal bearing is worn out and the pump needs immediate replacement.
Choosing the Right Aftermarket Water Pump
The most important step is to correctly identify your Camaro's engine. The water pumps for the V6, LT1 V8 (94-97), and LS1 V8 (98-02) are completely different and not interchangeable.
Critical for LT1 Owners (1994-1997)
The water pump is located directly above the Opti-Spark distributor. When replacing the pump, it is absolutely essential to protect the Opti-Spark from any dripping coolant. Coolant contamination is a primary cause of Opti-Spark failure, which is a much more difficult and expensive repair.
🎬 See this step-by-step LT1 water pump replacement guideBrand Quality Tiers
Aftermarket water pumps for the Camaro fall into several categories:
- OEM-Equivalent Brands (Good): Brands like ACDelco and Gates are trusted names that provide quality similar to the original factory part. They are a reliable choice for daily drivers. While ACDelco is a GM brand, some forum users note that their 'Professional' line may be manufactured in China. Gates is a strong alternative with a good reputation.
- Value Brands (Better): Brands like GMB, Dayco, and US Motor Works offer a balance of affordability and reliability. They are a popular choice for budget-conscious repairs and generally perform well, though many are manufactured overseas.
- Performance Brands (Best): For modified or high-performance Camaros, brands like Edelbrock and Melling offer high-flow designs. These pumps are built with heavy-duty components to provide improved cooling under demanding conditions. Be aware that performance pumps are more expensive and may sometimes require minor modifications to fit.
| Category | Price Range | Best For |
|---|---|---|
| Value (GMB, US Motor Works) | $45 - $90 | Daily drivers, budget repairs |
| OEM-Equivalent (ACDelco, Gates) | $80 - $150 | Stock vehicles, long-term reliability |
| Performance (Edelbrock, Melling) | $180 - $360+ | Modified engines, track use, heavy-duty cooling |
Pro Tip: Replace More Than Just the Pump
Since you'll have the cooling system drained and accessible, it's highly recommended to also replace the thermostat, water pump gaskets, and serpentine belt (if applicable). This is also a great time to flush the coolant and replace it with a fresh 50/50 mix to ensure the long life of your new components.
Frequently Asked Questions
What is the difference between an LT1 and LS1 water pump?
They are completely different. The 1994-1997 LT1 water pump is driven by a gear on the engine's camshaft and has a unique driveshaft that couples to it. The 1998-2002 LS1 water pump is more conventional and is driven by the external serpentine belt. They cannot be interchanged.
Can I replace the water pump myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skills and basic tools. The process involves draining the coolant, removing the air intake, releasing belt tension, removing hoses, and then unbolting the pump. Access can be tight, but many owners successfully perform this repair at home.
🎬 Watch: How to replace the water pump on LS1 enginesDo I need to use sealant on the new gaskets?
Most modern water pump gaskets are designed to be installed dry. However, some mechanics apply a very thin layer of RTV sealant to help hold the gaskets in place during installation. Always follow the instructions included with your new water pump. Overusing sealant can cause it to squeeze into the cooling passages and cause blockages.
Are there any recalls on the 1994-2003 Camaro water pump?
Based on searches of the NHTSA database, there are no specific safety recalls for the engine water pump on the 1994-2003 Chevrolet Camaro. Any recalls found are for much newer models or different vehicle systems.

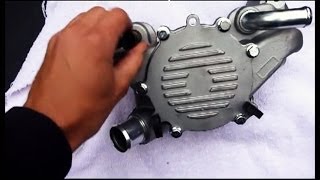

Helpful Videos
Technical Specifications
OEM Part Numbers: 89017456 12557710 88926215 252701
Fitment varies significantly by engine. 1994-1997 LT1 V8 pumps are gear-driven. 1998-2002 LS1 V8 and all V6 pumps are belt-driven. Housing material is typically aluminum. Gaskets are included with most new aftermarket units.
