Mazda B2300 Starter Solenoid Guide: Diagnosing and Replacing for 1994-2003 Models
If your Mazda B2300 clicks but won't start, your starter solenoid is the likely culprit.
- You must visually confirm if your solenoid is on the fender or attached to the starter before buying a part.
- A single, loud click when you turn the key is the classic symptom of a failed solenoid.
- Always test your battery and check for corroded cable connections before replacing parts.
- For this model year, a quality aftermarket brand like Standard Ignition is a reliable and practical choice.
Is Your 1994-2003 Mazda B2300 Starter Solenoid on the Fender or the Starter?
Before buying a replacement part for your B2300, you must check where your solenoid is located. Mazda, like its Ford Ranger counterpart, used two different designs during this period.

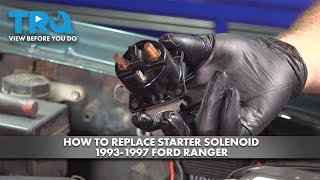

- Fender-Mounted Solenoid: Some earlier models in this generation may have the starter solenoid mounted separately on the inner fender wall of the engine compartment, usually near the battery. 🎬 Watch: Step-by-step guide to replacing a fender-mounted solenoid. This is a small, typically black or brown box with two large posts and one or two smaller ones.

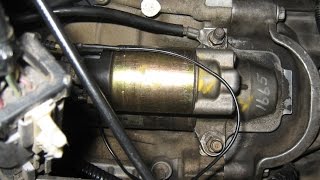

- Starter-Mounted Solenoid: Most models, especially in the later years of this generation, have the solenoid attached directly to the starter motor itself. This is often called a "piggyback" solenoid. In this case, you must remove the entire starter motor assembly from under the truck to replace the solenoid.
Pro Tip: Open your hood and look for a small electrical box near the battery with heavy-gauge red cables attached to it. If you see one, you have a fender-mounted solenoid. If not, your solenoid is attached to the starter motor, located where the engine meets the transmission.
Common Symptoms of a Failing Starter Solenoid
A bad starter solenoid has very distinct symptoms. Be aware that a weak or dead battery, or corroded battery cables, can cause similar issues. Always test your battery first.
- Single Loud Click, Then Nothing: 🎬 Watch: See why your starter clicks but won't crank. This is the most common sign. When you turn the key, you hear one solid "CLICK" from the engine bay, but the engine doesn't crank. This sound is the solenoid trying to engage but failing to send power to the starter motor.
- No Sound at All: You turn the key and get complete silence. This can happen if the solenoid's internal switch fails completely, not even making the initial clicking sound.
- Intermittent Starting: The truck starts fine one day but only clicks the next. This often points to worn internal contacts within the solenoid that only make a connection sometimes.
- Starter Keeps Running: In rare cases, the solenoid can get stuck in the "on" position, causing the starter motor to continue running even after the engine has started and you've released the key.
Choosing a New Aftermarket Solenoid
For a vehicle of this age, finding a brand-new Original Equipment (OEM) Motorcraft solenoid can be difficult, as many have been discontinued. This makes a quality aftermarket part the most practical choice.
Standard Ignition (Standard Motor Products):
Standard Ignition is a well-regarded aftermarket manufacturer. Their products are designed to meet or exceed original specifications. User reviews for Standard solenoids on similar Ford/Mazda trucks are generally positive, with many noting a good fit and reliable performance that is comparable to the original part. Given the availability and reputation, Standard Ignition is a solid choice for your B2300.
Estimated Part & Labor Costs
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Solenoid (Standard Ignition) | $45 - $57 |
| New OEM Starter Assembly (includes solenoid) | $130 - $210+ |
| Shop Labor (Fender-Mounted) | $50 - $100 |
| Shop Labor (Starter-Mounted) | $120 - $250 |
Known Issues, Recalls, and Service Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls or technical service bulletins (TSBs) for the starter solenoid on the 1994-2003 Mazda B2300. While recalls for Takata airbags did affect some B-Series trucks, there are no widespread, documented factory issues with the starting system itself. Most failures are due to age, wear, and corrosion.
Frequently Asked Questions (FAQ)
Can I replace just the solenoid if it's mounted on the starter?
Yes, in most cases, the piggyback solenoid can be unbolted from the starter motor and replaced individually. However, you must first remove the entire starter assembly from the vehicle. Given the labor involved, many mechanics and DIYers choose to replace the entire starter motor assembly at the same time, as the motor itself may be near the end of its service life.
Is it the solenoid, the battery, or the starter?
If you hear a single, loud click, the battery is likely strong enough to activate the solenoid, pointing to the solenoid or starter motor as the problem. If you hear rapid clicking, your battery is likely weak and doesn't have enough power to fully engage the solenoid. If you hear nothing, the problem could be the solenoid, the ignition switch, or a dead battery. Always start by cleaning your battery terminals and having your battery tested.
🎬 Watch: A simple way to test your starter solenoid.Do I need special tools for the replacement?
For a fender-mounted solenoid, you only need basic hand tools like a socket set and wrenches. For a starter-mounted solenoid, you will need a socket set with extensions and possibly a swivel adapter to reach the starter bolts. You will also need a jack and jack stands to safely work under the vehicle. No other highly specialized tools are typically required.
Is the Mazda B2300 starter solenoid the same as the Ford Ranger one?
Yes. The Mazda B-Series truck from this era is mechanically identical to the Ford Ranger. A starter solenoid listed for a 1994-2003 Ford Ranger with the same 2.3L engine will fit your Mazda B2300, provided you have matched the correct location (fender or starter-mounted).
Helpful Videos
Technical Specifications
OEM Part Numbers: ZZP1-18-400R-0A (Starter Assembly 94-01) 1F20-18-400R-0C (Starter Assembly 01-03) 3L5Z-11002-AA (Ford Equivalent Starter Assembly)
Varies by location. Fender-mounted is a 4-terminal relay. Starter-mounted is a direct-fit piggyback solenoid.
