Buick Regal Relay Guide for 1994-2004 Models
Understanding the simple but critical relays in your 1994-2004 Buick Regal and how to replace them.
- A bad relay can mimic the failure of a more expensive part like a fuel pump or starter.
- Symptoms often include a 'crank-no-start' or 'no-crank' condition.
- You can often diagnose a bad relay for free by swapping it with an identical one from a non-essential system (like the horn).
- Replacement is extremely easy, requiring no tools and taking only minutes.
Understanding Relays in Your Regal
Your 1994-2004 Buick Regal uses several small electrical boxes called relays to power its most important systems. Think of a relay as a remote-controlled switch. The car's computer or a dashboard switch sends a tiny electrical signal to the relay, which then closes a bigger, more powerful circuit to run something like the fuel pump or headlights. Because they are simple, moving parts, they can wear out over time. The most common reasons for failure are age, internal wear, or an electrical overload.
Aftermarket vs. OEM Relays
When a relay fails, you have the choice between an Original Equipment Manufacturer (OEM) part from the dealer or an aftermarket part. For a common component like a relay, a quality aftermarket part provides the same performance as an OEM part for less money. Aftermarket brands like Replacement offer a cost-effective solution that meets the original specifications. Since relays are generally simple, standardized components, the reliability of a new aftermarket part is often comparable to OEM for this type of repair.
Part Cost Comparison
| Part Type | Price Range |
|---|---|
| New Aftermarket | $17 - $19 |
| New OEM (ACDelco) | $22 - $35 |
| Shop Labor | $50 - $100 |
Common Relay Problems and Locations
The most critical relays in your Regal are for the fuel pump and the starter. A bad fuel pump relay is a very common cause of a "crank, no start" condition. A bad starter relay will result in a "no crank" condition, where you might only hear a click when turning the key. These relays are typically located in the main fuse box in the engine compartment, near the battery. Another fuse/relay panel can be found inside the car, on the side of the dashboard. 🎬 Watch: Locate your main fuse box and relay diagrams. Always check your owner's manual or the diagram on the fuse box lid to identify the correct relay.
Pro Tip: Easy Diagnosis
Many relays in your Regal's fuse box are identical. If you suspect a relay is bad (for example, the fuel pump relay), you can often swap it with a known good relay of the same type (like the horn or A/C relay) to see if the problem moves. If the car starts after swapping, you've confirmed the relay was the issue. This is a quick, no-cost diagnostic step.

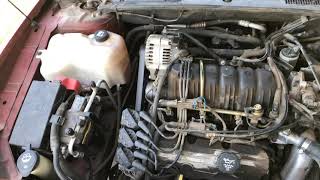

🎬 Watch: Troubleshooting a 3.8L engine that cranks but won't start.Frequently Asked Questions (FAQ)
Where are the relays located on my 1994-2004 Buick Regal?
Your Regal has two main fuse/relay centers. The primary one is under the hood, usually a black box near the battery. A secondary panel is located inside the car, on the right side of the instrument panel, accessible when you open the passenger door.
How do I know if my fuel pump relay is bad?
The most common symptom is an engine that cranks but refuses to start. You might also notice the engine stalling intermittently while driving. Usually, when you turn the key to the 'ON' position, you can hear the fuel pump buzz for a couple of seconds; if you no longer hear this sound, 🎬 See how to diagnose a failing fuel pump system. the relay could be the culprit.
Is replacing a relay a difficult job?
No, replacing a relay is one of the easiest repairs you can do. It requires no tools. Simply locate the old relay in the fuse box, pull it straight out, and push the new one firmly into its place. The entire process takes less than five minutes.
Are there any recalls for relays on the 1994-2004 Buick Regal?
There are no specific recalls issued by the NHTSA for relay failures on the 1994-2004 Buick Regal. However, there was a recall for some models within this year range related to engine oil leaking onto the exhaust manifold, which could pose a fire risk.
Helpful Videos
Technical Specifications
Most common relays for this vehicle are 4-pin, 12V DC, with a 30/40 Amp rating.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
