A Ford Mechanic's Guide to 1994-2005 Mustang Disc Brake Hardware
Solve brake noise and uneven wear on your SN95 or New Edge Mustang by replacing these small but critical parts.
- Always replace your disc brake hardware kit when changing brake pads to prevent noise and ensure proper function.
- Brake rattle on a 1994-2005 Mustang is almost always caused by worn or missing anti-rattle clips from the hardware kit.
- Verify your exact model (V6, GT, or Cobra) before ordering, as the hardware is not interchangeable.
- For longevity, especially in harsh climates, choose a kit with stainless steel components from a reputable brand like Centric, Raybestos, or Dynamic Friction.
Is Your Mustang's Brake Hardware Worn Out?
Brake hardware is often ignored during a brake job, but on the SN95 and New Edge Mustang platform, it's the key to a quiet, smooth stop. These parts are exposed to massive heat cycles and road grime, causing them to lose tension, rust, or seize. When this happens, you'll start to notice problems that a new set of pads alone won't fix. A common issue on these Mustangs is a sticking caliper, which can be caused by a seized guide pin that the hardware kit is meant to protect.
Symptoms of Bad or Missing Brake Hardware:
- Rattling or Clattering Noise: This is the most common sign. If you hear a metallic rattle from your wheels, especially over bumps, it's likely the brake pads are loose because of weak or missing anti-rattle clips.
- Squealing or Scraping When Not Braking: If a clip fails or a guide pin seizes, it can cause a pad to stay in contact with the rotor, creating a constant noise.
- Uneven Brake Pad Wear: If you inspect your pads and one is worn down much more than the other, it's a classic sign of sticking caliper guide pins. A new hardware kit with fresh lubricant is the fix.
- Spongy or Unresponsive Brake Pedal: While less common, a severely sticking caliper can affect pedal feel and overall braking performance.
No Major Recalls, But Known Issues Exist
Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or major technical service bulletins (TSBs) for the disc brake hardware on 1994-2005 Ford Mustangs. However, owner forums are filled with discussions about brake noise and sticking calipers, pointing to hardware as a common wear item that needs regular replacement.
Choosing the Right Aftermarket Hardware Kit
For a part like this, you don't necessarily need to pay extra for an OEM box from Ford. The quality of top-tier aftermarket brands is excellent and often meets or exceeds original specifications. Many kits now use stainless steel, which is an upgrade over the original plated steel, offering better corrosion resistance.
Aftermarket Brand Tiers for Your Mustang:
- Good - Standard Replacement (Dorman, Carlson): Dorman is a widely available brand you'll find in most local auto parts stores and is a perfectly fine standard replacement. Carlson is part of a large manufacturing group that includes other quality brands. These kits will get the job done reliably for a daily driver.
- Better - Trusted OE-Style (Centric, Raybestos): Centric and Raybestos are sister companies and are highly regarded in the brake industry for providing OE-quality fit and performance. They are a go-to choice for many mechanics and enthusiasts who want a dependable part without the high dealer cost.
- Best - Premium Features (Dynamic Friction): Brands like Dynamic Friction (DFC) often distinguish themselves by using better materials, such as including more stainless steel components compared to competitors' plated steel. If you live in an area with road salt or want the longest possible lifespan, a premium kit like this is a smart investment.
Pro Tip: It's Not Just About the Parts
When you install your new hardware kit, the job isn't done until you've cleaned the caliper bracket and lubricated the guide pins. Use a wire brush to scrub away all rust and old brake dust from the areas where the clips sit. Apply a thin layer of high-temperature brake grease to the guide pins and the contact points on the back of the brake pads. This ensures everything moves freely and prevents noise.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit (Per Axle) | $6.36 - $45.10 |
| New OEM Kit (Per Axle) | $30 - $70 |
Frequently Asked Questions
Do I really need to replace my brake hardware?
Yes. It is highly recommended to replace the disc brake hardware every time you replace your brake pads. The clips lose tension over time, and reusing them is the number one cause of noisy brakes after a brake job. For the low cost of a kit, it is cheap insurance against future problems.
What's the difference between V6/GT and Cobra hardware?
The brake systems are different. The 1994-2004 Cobra and 2001 Bullitt/2003-04 Mach 1 used different, larger calipers (often PBR brand) than the V6 and GT models. The hardware kits are not interchangeable. Always verify you are buying the kit specified for your exact Mustang model.
Are stainless steel hardware kits better?
Yes. Stainless steel offers superior rust and corrosion resistance compared to the standard plated steel clips found in some budget kits. For Mustangs driven in winter climates where road salt is used, a stainless steel kit is a worthwhile upgrade that will last longer and continue to perform correctly.
What are the rubber boots and guide pins for?
The guide pins allow the brake caliper to slide back and forth as you apply and release the brakes. The rubber boots in the hardware kit protect these pins from dirt, water, and salt. If a boot tears, the pin can rust and seize, causing the caliper to stick. This leads to rapid and uneven pad wear, and potentially a damaged rotor.
Technical Specifications

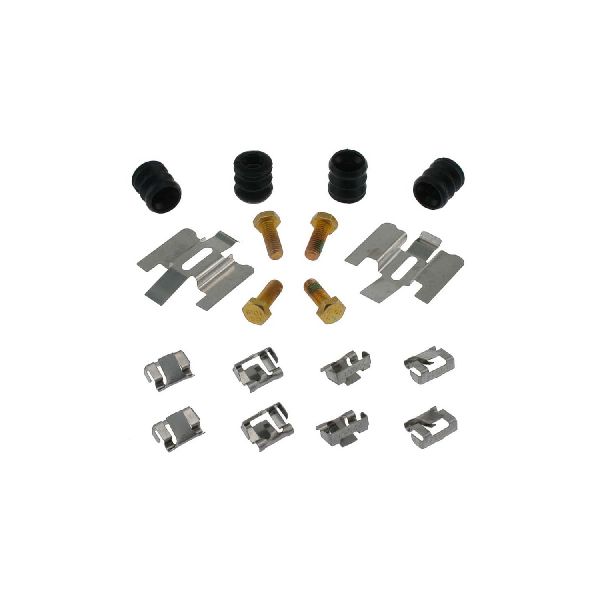

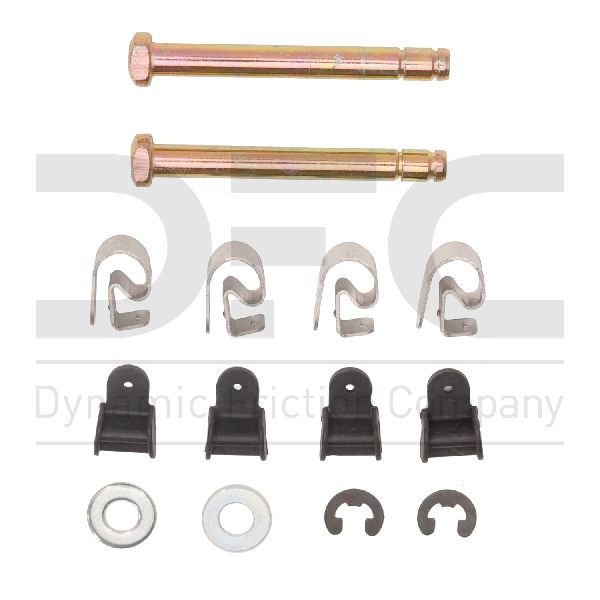

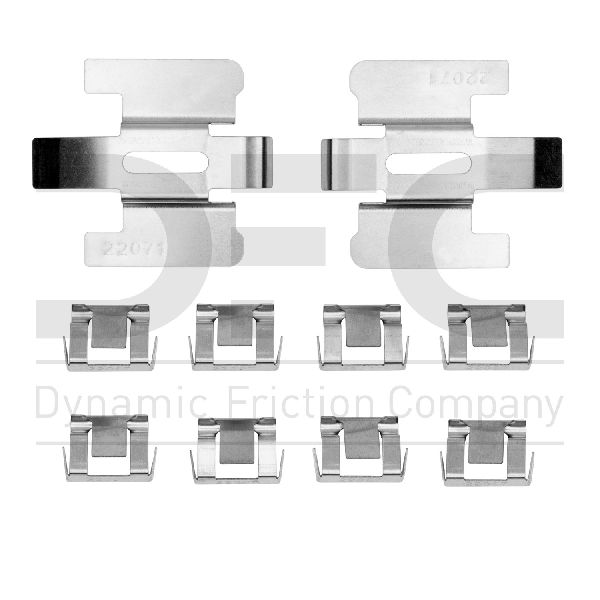

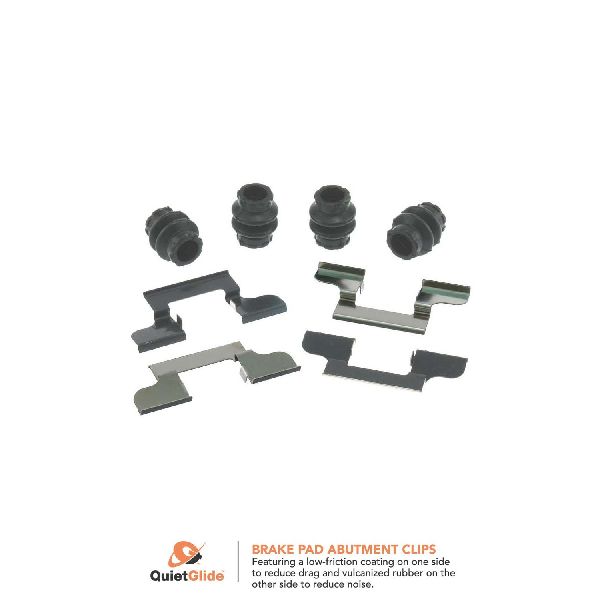

Kit typically includes anti-rattle clips, guide pin boots, and springs. Materials vary from plated steel to stainless steel. Kits are specific to front or rear axle and vehicle sub-model (V6/GT vs. Cobra/Mach 1).
