Throttle Position Sensor (TPS/APPS) Guide for 1994-2007 Dodge Ram 2500
Understanding the critical differences between the sensor on your gas or diesel Ram 2500 and how to choose the right replacement part.
- Verify if your truck has a gas engine (TPS) or a Cummins diesel (APPS) before buying; they are different parts.
- Dead pedal, erratic shifting, and engine surging are hallmark symptoms of a failing sensor on these trucks.
- For Cummins diesel engines, investing in a premium aftermarket brand (like Delphi, NGK, Standard) is highly recommended over budget options to ensure reliability.
- Always perform the sensor calibration procedure after installation to prevent error codes and drivability issues.
Gas vs. Diesel: A Critical Difference
Before buying a replacement part, you must know what engine your Ram 2500 has. They use different parts that are often confused.

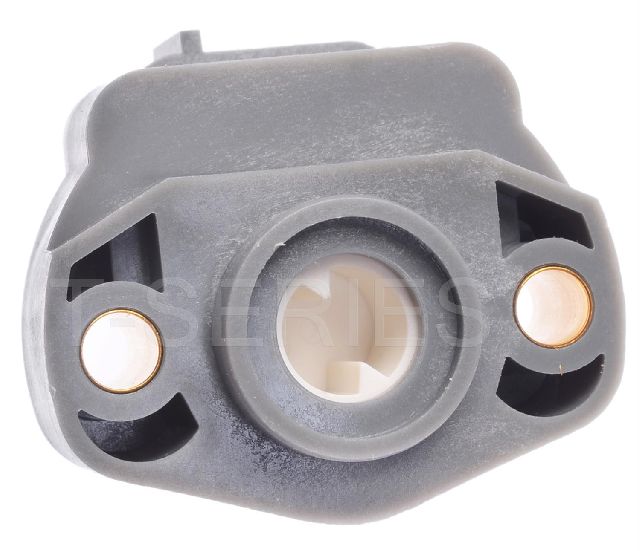

- Gas Engines (V8 & V10): Use a traditional Throttle Position Sensor (TPS). This is a small, relatively inexpensive sensor mounted directly to the side of the throttle body with two Torx screws.
- Cummins Diesel Engines: Use an Accelerator Pedal Position Sensor (APPS). This is a more complex and expensive assembly located on the driver's side of the engine, under a black plastic cover, and is connected to the throttle linkage. It is not attached to the pedal itself in this generation.
Don't Mix Them Up!
A TPS for a gas engine will not work on a Cummins diesel, and an APPS will not work on a gas engine. Searching for a "Throttle Position Sensor" for a Cummins will often show results for the APPS, but it's crucial to confirm you are buying the correct assembly.
Common Failure Symptoms
A failing TPS or APPS can make your truck feel unpredictable and unsafe. On Cummins diesel models, the most notorious symptom is the "dead pedal," where the truck suddenly loses all throttle response and drops to an idle. You might be driving normally, and then the accelerator does nothing for a few seconds before coming back. Other common symptoms for both gas and diesel engines include:
- Erratic Shifting: The transmission may shift harshly, hunt for gears, or the torque converter might lock and unlock frequently.
- Engine Surging and Bucking: The truck may surge, buck, or hesitate while driving as the computer receives inconsistent signals.
- High or Rough Idle: The engine may idle too high or run rough.
- Check Engine Light: A failing sensor will often trigger a Check Engine Light with codes like P0121, P0122, P0123, or P2121. 🎬 Watch this video to see common bad throttle sensor symptoms.
Choosing the Right Aftermarket Sensor
For this generation of Dodge Ram, the quality of the replacement sensor matters, especially for the Cummins APPS.
Brand Quality Tiers
- Premium Aftermarket (Delphi, NGK/NTK, Standard Motor Products): These brands are often considered OE-equivalent or better. Standard Motor Products, in particular, notes that some of their sensors are specifically engineered for high-mileage Chrysler vehicles. For the sensitive APPS on a Cummins, spending more on a reputable brand is highly recommended by owners in forums to avoid repeat failures.
- Standard Aftermarket (Dorman, Walker Products): Dorman is a well-known brand that often provides OE-fit parts and sometimes improves on the original design. These brands can be a good balance of price and quality for the TPS on gas engines. However, for the Cummins APPS, some owners report mixed results with budget-friendly options, sometimes making problems worse.
- Budget-Friendly (Replacement, True Tech, Global Parts): These brands offer the lowest price point. They might be a viable option for a gas engine TPS if the budget is the primary concern, but their long-term reliability can be a gamble. For a Cummins APPS, these are generally not recommended due to the sensor's critical role and the difficulty of replacement.
| Part Type | Cost Range |
|---|---|
| New Aftermarket (Gas Engine TPS) | $30 - $90 |
| New Aftermarket (Diesel Engine APPS) | $150 - $720 |
| Shop Labor Cost | $75 - $200 |
A Note on Cummins APPS Replacement
When replacing the APPS on a Cummins engine, it is strongly recommended to replace the entire assembly, not just the sensor module on the back of the bracket. The sensor is clocked or indexed to the bracket, and installing just the module can lead to incorrect calibration and persistent drivability issues.
🎬 See how to properly install a Cummins throttle position sensor.Frequently Asked Questions
Are there any recalls for this part?
No, there are no specific recalls from the NHTSA for the Throttle Position Sensor or Accelerator Pedal Position Sensor on 1994-2007 Dodge Ram 2500 models. Searches found recalls for other components on different model years.
Do I need to calibrate the new sensor?
Yes, performing a calibration or "reset" procedure is critical after installing a new sensor, especially on Cummins models. The typical procedure involves disconnecting the batteries for at least 30 minutes, reconnecting them, turning the ignition to the 'ON' position (without starting the engine), slowly pressing the accelerator pedal to the floor once, and then turning the key off. This allows the Engine Control Module (ECM) to learn the new sensor's voltage range for idle and wide-open throttle.
Could something else cause a "dead pedal" on my Cummins?
Yes. While the APPS is the most common cause, a failing VP44 injection pump (on 1998.5-2002 models) can also cause dead pedal, though it usually comes with different trouble codes (like P0216). Additionally, forum users report that excessive AC voltage noise from a failing alternator can interfere with the ECM and cause dead pedal symptoms.
How difficult is it to replace this sensor?
For gas engines, replacing the TPS is very easy. It involves removing two T25 Torx screws and a single electrical connector. 🎬 Follow this guide to replace the TPS on gas engines. For Cummins diesel engines, replacing the APPS assembly is more involved. It requires removing the plastic cover, disconnecting throttle linkages, and unbolting the entire bracket assembly (held by six bolts). It is still a DIY-feasible job for someone with basic mechanical skills.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5017479AA
Varies by engine type. Gas engines use a 3-pin sensor on the throttle body. Diesel engines use a larger, engine-mounted multi-pin APPS assembly.
