Mazda B3000 Vehicle Speed Sensor: A Guide for 1994-2007 Owners
If your speedometer is acting erratically or your transmission is shifting hard, your B3000's vehicle speed sensor may be the problem.
- A bad VSS on a B3000 most commonly causes an erratic speedometer and hard shifting.
- The sensor is usually located on the rear differential and is very easy to replace (a single bolt and connector).
- For this truck, a quality aftermarket sensor is a reliable and budget-friendly repair option.
- Symptoms of a bad VSS are very similar to a bad instrument cluster (PSOM); the sensor is the cheaper first part to replace.
Understanding the Vehicle Speed Sensor in Your Mazda B3000
The Mazda B3000, a reliable truck based on the Ford Ranger platform, uses a vehicle speed sensor (VSS) to translate drivetrain rotation into an electronic signal. This signal is the lifeblood for your speedometer, automatic transmission shifting, and cruise control. On many 1994-2007 models, especially rear-wheel-drive versions, this sensor is also the Rear ABS sensor, mounted on the rear differential. Other configurations may have the sensor on the transmission's tail housing. Because it serves multiple systems, a single faulty sensor can cause a variety of confusing problems.
Common Symptoms of a Failing VSS
When the VSS starts to fail, your truck will usually let you know through a few common symptoms. Recognizing them can help you diagnose the problem quickly.
- Erratic or Dead Speedometer: This is the most frequent sign. The needle might bounce around, drop to zero while driving, or not move at all.
- Harsh or Incorrect Automatic Shifting: The transmission uses speed data to shift gears at the right time. Without it, shifts can become hard, delayed, or unpredictable. The overdrive "O/D OFF" light may also flash.
- ABS Warning Light: If your B3000 uses the VSS for the anti-lock brakes, a sensor failure will likely turn on the ABS light on your dash. 🎬 See how to diagnose an ABS light caused by the sensor.
- Cruise Control Not Working: The cruise control system needs to know the vehicle's speed to function. If the signal is lost, cruise control will not engage.
- Check Engine Light: A faulty VSS can trigger a diagnostic trouble code (DTC), such as P0500, which will illuminate the check engine light.
Is It the Sensor or Something Else?
On these trucks, the symptoms of a bad VSS are nearly identical to a failure of the Programmable Speedometer/Odometer Module (PSOM) inside the instrument cluster. If a new sensor doesn't fix the issue, the problem may lie with the wiring or the PSOM itself.
🎬 Watch this guide on fixing broken sensor wiring issues.Choosing a New Aftermarket Speed Sensor
For a vehicle like the 1994-2007 B3000, a new aftermarket VSS is a smart and cost-effective choice. The original OEM parts can be expensive or hard to find. Aftermarket brands offer direct-fit replacements that meet or exceed original specifications.
Here's a look at the available brands:
- Premium Aftermarket (Standard Ignition, NGK): Brands like Standard Ignition (SMP) and NGK are often considered top-tier in the aftermarket. They have a long history of producing quality electronic components and are a trusted choice for professional mechanics.

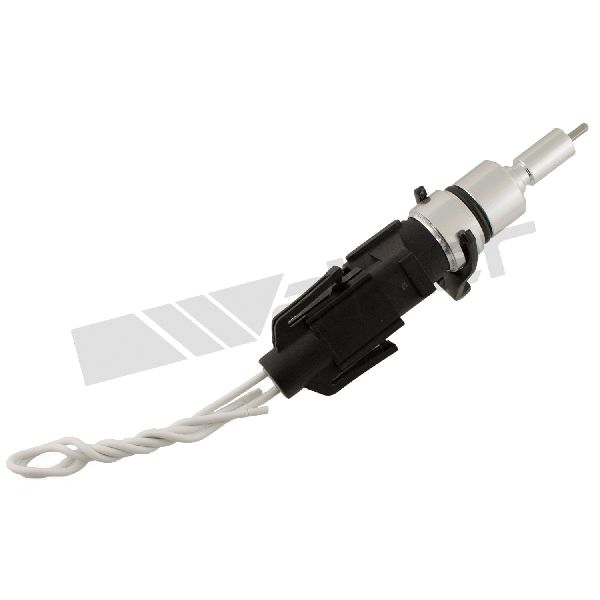

- Standard Aftermarket (Holstein, Walker Products, Global Parts, True Tech): These brands provide reliable, OE-equivalent parts that offer great value. They are a popular choice for DIY repairs and general-purpose use, often backed by warranties.
Check Your Location First!
Before ordering, confirm where the sensor is on your specific B3000. Most RWD models have it on the rear differential, held in by a single bolt. Some 4WD or different year models may have it on the transmission or transfer case. Checking first prevents ordering the wrong part.
Cost of Replacing the Vehicle Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $29.46 - $70.75 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost (DIY) | $29.46 - $70.75 |
| Total Estimated Cost (Shop) | $79.46 - $170.75 |
Frequently Asked Questions
Is the VSS the same as the ABS sensor on my B3000?
Often, yes. On many B3000 and Ford Ranger models, the sensor on the rear differential serves as both the VSS for the speedometer and the speed sensor for the rear anti-lock brakes (RABS).
How difficult is it to replace the VSS myself?
For sensors mounted on the rear differential, it's a very easy job (1/5 difficulty). It typically involves removing one bolt and a single electrical connector. The job can usually be done in under 30 minutes with basic hand tools.
🎬 Watch this quick walkthrough for replacing the rear differential sensor.Are there any recalls for the speed sensor on the Mazda B3000?
There are no direct recalls for the vehicle speed sensor itself on the 1994-2007 Mazda B3000. However, related recalls for the Ford Ranger platform have occurred for issues like unintended downshifts due to a faulty output shaft speed sensor, but these typically affect newer models. There were significant Takata airbag recalls affecting the B-Series. Always check for any open recalls on your specific vehicle using its VIN on the NHTSA website.
Will a bad VSS cause my truck to fail an inspection?
Yes, it can. If the check engine light is on due to a VSS-related trouble code, it will cause an automatic failure in areas with emissions testing. A non-functional speedometer can also be grounds for a safety inspection failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: F5TZ7M101A ZZM019271 ZZM019271A R510-17-400 M5AC17400
The key specification is the location. Most RWD models use a sensor on the rear differential that also functions as the ABS sensor. Other models may have a sensor on the transmission tail shaft. Verify the location on your vehicle before purchasing.
