Mazda B3000 Drum Brake Hardware Guide for 1994-2008 Models
Fix rear brake noise and that weak parking brake by choosing the right hardware kit for your truck.
- You must confirm if your truck has 9-inch or 10-inch rear drums before ordering.
- Always replace the hardware kit when replacing brake shoes to ensure proper function and prevent noise.
- If you own a 1994 model, be aware of the safety recall for the parking brake self-adjuster.
- When doing the job, carefully inspect the wheel cylinders for any signs of brake fluid leaks and replace them if any dampness is found.
The Most Important Step: 9-Inch vs. 10-Inch Drums
Before you order any parts, you MUST confirm your truck's rear brake drum size. The 1994-2008 Mazda B3000 (and its twin, the Ford Ranger) came with either 9-inch or 10-inch rear drums. The hardware kits are different for each size and are not interchangeable. The only way to be certain is to measure the inside diameter of your brake drum.
Symptoms of a Failing Drum Brake Hardware Kit
When the small springs and clips in your B3000's rear brakes get old, they cause noticeable problems. Weak springs can't pull the brake shoes back properly, leading to noise and premature wear. Here’s what to look and listen for:
- Scraping or Grinding Noises: A metallic scraping sound from the rear wheels when you brake is a common sign. If it's a loud grind, it could mean the shoes are completely worn and metal parts are destroying your drums.
- Clicking or Popping Sounds: A distinct click when you first press or release the brake can be caused by broken or weak springs allowing the brake shoes to shift improperly.
- Weak Parking Brake: If your parking brake handle pulls up easily or the truck won't hold securely on a hill, worn hardware is a likely cause. The parking brake relies on these same components to function.
- Spongy or Soft Brake Pedal: A pedal that feels soft or travels further to the floor can indicate that the self-adjusters, which are part of the hardware, are not working correctly.
- Brakes Feel Like They are Dragging: If the return springs are weak or broken, the brake shoes may not fully retract, causing constant friction, heat, and poor fuel economy.
Known Issues for the 1994-2008 Mazda B3000
Because the B3000 is a rebadged Ford Ranger, it shares some known issues. There are no recalls specifically for the hardware kits themselves, but there are related service bulletins and a critical recall for early models.
- NHTSA Recall 94V169001: This important safety recall affects 1994 Mazda B3000 models. The parking brake's self-adjuster mechanism could fail, preventing the brake from holding the truck. This could allow the vehicle to roll away. The fix involved installing a special wedge to secure the adjuster pawl.
- TSB for Grabbing Brakes: Some trucks may experience a condition where the rear brakes grab aggressively on the first few stops after being parked, especially in damp weather. This is caused by moisture getting inside the drum. A technical service bulletin (TSB) suggests sealing the edge of the brake backing plate with silicone to prevent this.
- Common Failure: Leaking Wheel Cylinders: It is very common for the wheel cylinders inside the drum to leak brake fluid. This fluid soaks the brake shoes and hardware, ruining them and causing a loss of braking power. It is highly recommended to replace your wheel cylinders whenever you replace your shoes and hardware.
Choosing the Right Aftermarket Hardware Kit
For a vehicle of this age, aftermarket hardware kits provide excellent value and quality. There is no significant benefit to searching for expensive and rare original OEM parts. The key is to choose a reputable brand. All the brands listed will work, but there are differences in reputation for quality and materials.
| Brand Tier | Brands | Assessment |
|---|---|---|

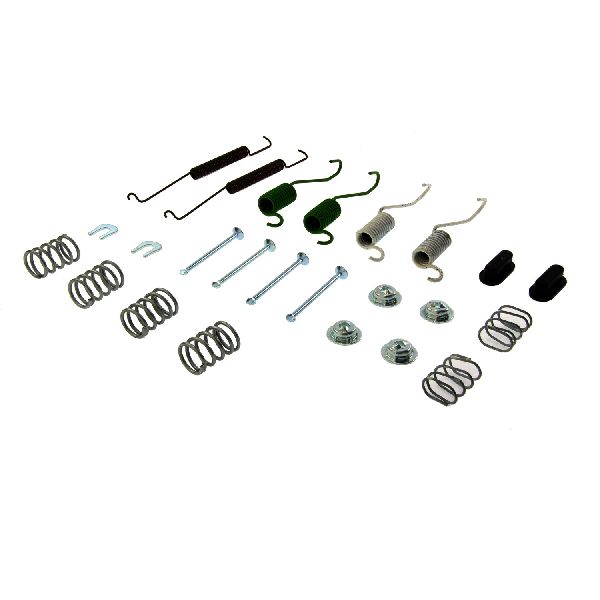

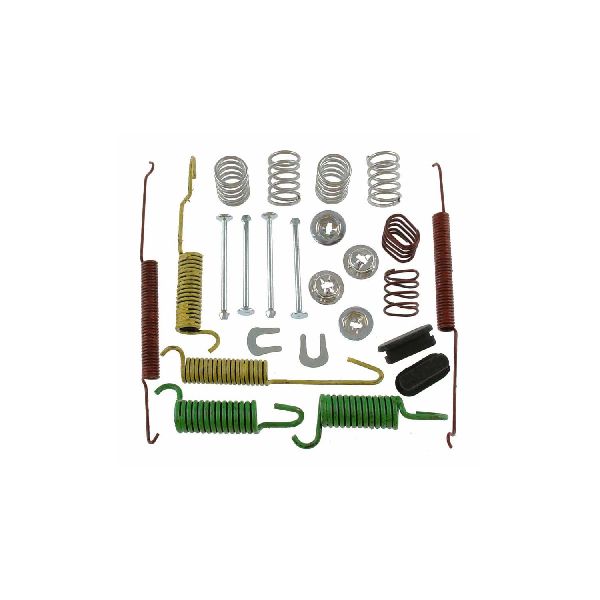

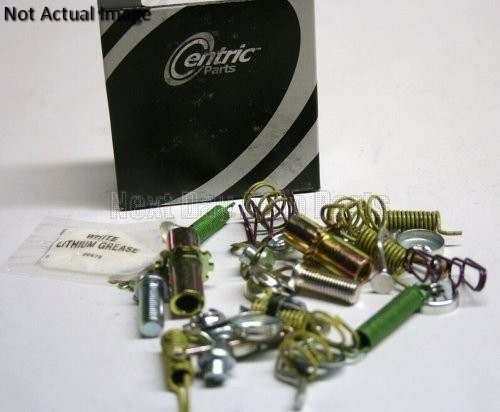

| Good (Standard Replacement) | Carlson, Raybestos, Centric | These brands are well-regarded in the industry for brake components. They offer quality that meets or exceeds original factory specs and are a reliable choice for daily driving. Carlson specializes in brake hardware, and Raybestos and Centric are trusted names. |

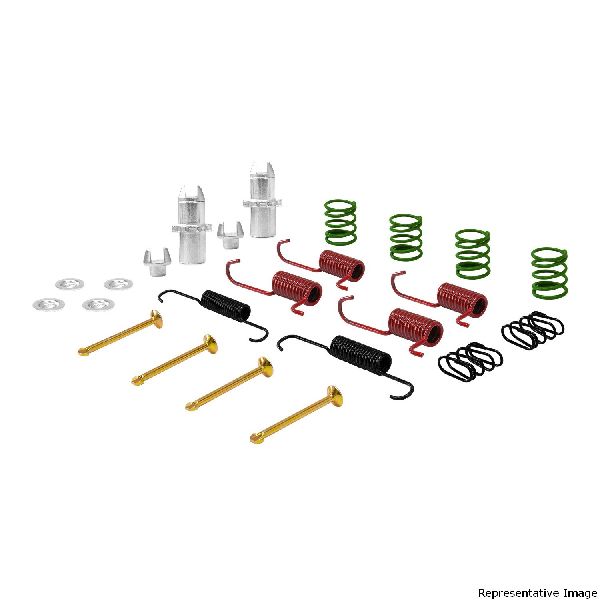

| Good (Alternate) | ACDelco, Dynamic Friction | ACDelco is a trusted OEM supplier for GM but makes quality parts for many other vehicles. Dynamic Friction (DFC) is known for using quality materials, sometimes including more stainless steel components than competitors. |
| Economy | Dorman | Dorman offers a massive catalog of parts, but their quality has a mixed reputation among mechanics. While some of their hard parts are fine, others can have fitment or longevity issues. It can be a budget-friendly option, but other brands in a similar price range may offer more consistent quality. |
Pro Tip: Always replace your drum brake hardware kit when you replace your brake shoes. The springs lose tension from heat and millions of cycles. A new kit costs very little and ensures your new shoes work correctly and quietly.
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with my brake shoes?
Yes, absolutely. The springs in the kit weaken over time with heat and use. Reusing old hardware with new shoes can cause noise, uneven wear, and poor brake performance. For the low cost of a kit, it is essential maintenance.
What else should I replace with my drum brake hardware?
You should always replace your brake shoes at the same time. It is also highly recommended to inspect and likely replace the wheel cylinders, as they are a common point of failure from leaks. If your drums are heavily grooved or have a large lip on the edge, they should be replaced as well.
What is the difference between a 9-inch and 10-inch kit?
The size refers to the inside diameter of the brake drum. A 10-inch drum is larger and uses different shoes and hardware than a 9-inch drum. You must verify which size your truck has before ordering parts.
Is an OEM Motorcraft hardware kit better than aftermarket?
For this truck, a quality aftermarket kit from a brand like Raybestos, Carlson, or Centric is just as good as OEM for normal use. OEM parts may be more expensive and harder to find and are not necessary to get the job done right.
Technical Specifications
OEM Part Numbers: F57Z-2A637-A F57Z-2A637-B E7TZ-2A637-A E7TZ-2A637-B
Kit contains all required return springs, hold-down springs, clips, and pins for two rear wheels. Available for 9-inch and 10-inch drum brake systems.
