1995-1998 Dodge B2500 HVAC Blower Motor Resistor Replacement Guide
If your van's fan only works on high, this guide is for you.
- The most common symptom of failure is the fan only working on high speed.
- This is a very easy DIY repair that takes less than 15 minutes with a Phillips screwdriver.
- If a replacement resistor fails quickly, your blower motor is likely the root cause and should be replaced.
- Always inspect the wiring connector for melting or corrosion and replace it if necessary.
Is Your B2500's Fan Acting Up?
If your Dodge B2500's climate control fan only works on the highest setting, you almost certainly have a failed blower motor resistor. This is the most common symptom by far. The high speed setting works because it sends power directly to the fan, bypassing the burnt-out resistor. Other signs of failure include some speeds not working while others do, or no fan at all. In some cases, you might notice a burning plastic smell from the vents, which could be the resistor or its wiring connector overheating. This is a serious sign and should be inspected immediately.
A Note on Repeat Failures
If you replace the resistor and it fails again quickly, the problem is likely your blower motor itself. As blower motors age, they draw more electrical current, which overloads and burns out the new resistor. If you're on your second resistor, you should plan to replace the blower motor as well to solve the problem for good.
🎬 Watch: Tips to diagnose high-speed only fans and prevent repeat failures.Known Issues for 1995-1998 Dodge B-Series Vans
There is a Technical Service Bulletin (TSB) for the 1997 model year, TSB #240597, specifically for the blower fan motor operating on high speed only, confirming this is a common, known issue. 🎬 See a 1996 B-Series van heater fan resistor being replaced. While searches for recalls on the 1995-1998 B2500 were performed, no specific recalls for the blower motor resistor in this year range were found. An older recall (91V-004) existed for different Chrysler models regarding resistor overheating due to water intrusion, but it does not apply to this van.
Choosing the Right Aftermarket Resistor
For an older workhorse like the B2500, an aftermarket resistor is a smart, cost-effective choice. The technology is simple, and aftermarket brands offer reliable quality for this part. There is no significant advantage to hunting down an expensive OEM part from a dealer.
Here's a breakdown of the available brands:
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, SMP is known for strict manufacturing standards that lead to reliable, long-lasting electrical parts. They are a solid choice for dependability.
- Dorman: A very popular and trusted aftermarket brand. Dorman parts are engineered to match original specifications and are known for their reliability and availability. Many of their kits include a new wiring harness, which is a huge plus if your original connector is melted or corroded.

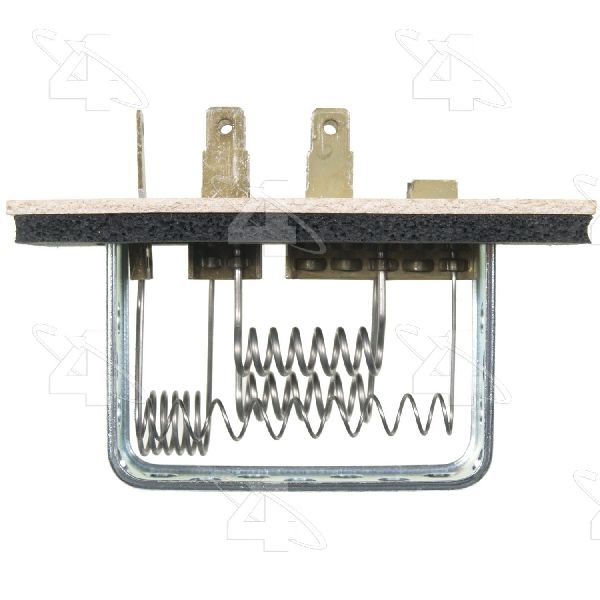

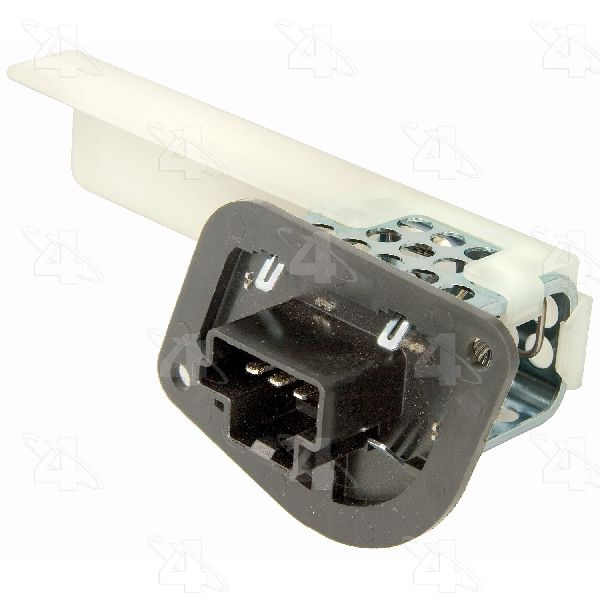

- Four Seasons: As a brand that specializes in climate control parts, Four Seasons is a very common and generally reliable option. Reviews are often positive, citing them as good-quality direct replacements.

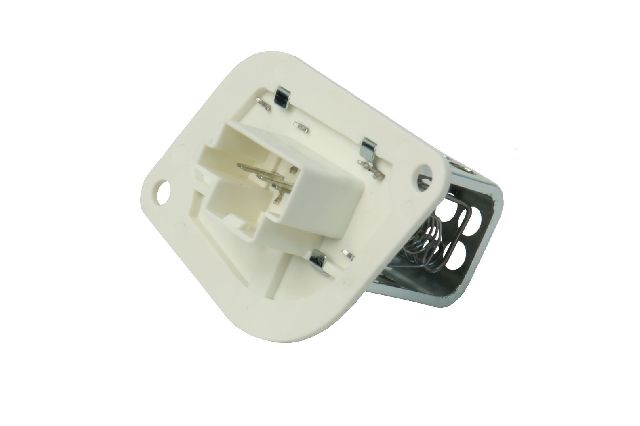

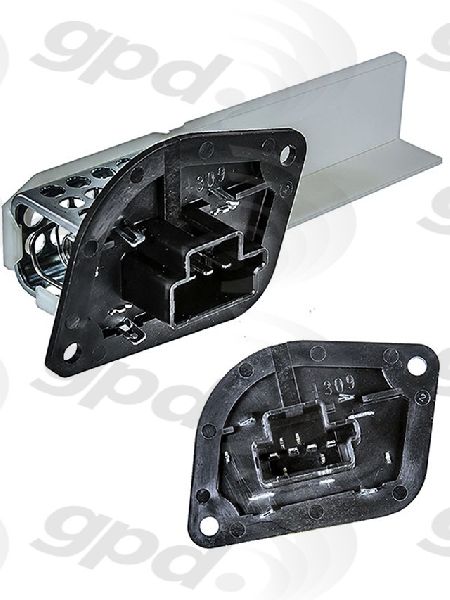

- Global Parts / URO Parts: These brands are typically more budget-focused. While they can offer significant savings, quality can sometimes be inconsistent compared to the more established brands. For a part that is easy to access and replace like this one, they can be a viable option if budget is the primary concern.
Pro Tip: Check the Connector!
Before ordering, inspect the electrical connector attached to your old resistor. If it looks melted, cracked, or corroded, it's best to buy a resistor that comes as a kit with a new connector pigtail. Brands like Dorman often offer these kits. Installing a new resistor into a damaged connector will cause the new part to fail quickly.
Typical Costs for a B2500 Blower Motor Resistor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $25 - $51 |
| Shop Labor | $50 - $75 |
| Total Professional Repair | $75 - $126 |
Cost estimates are based on the provided price range and national labor averages. Prices can vary by location and supplier.
Installation Guide
Replacing the blower motor resistor on a 1995-1998 Dodge B2500 is a very easy job that most owners can do themselves in under 15 minutes.
🎬 Watch this quick walkthrough of the B2500 resistor replacement process.- Location: The resistor is located on the passenger side, under the dashboard, mounted on the bottom of the main HVAC housing.
- Disconnect: Unplug the electrical connector from the resistor. There's a small tab you'll need to press.
- Remove: Remove the two Phillips head screws holding the resistor in place.
- Install: Install the new resistor, secure it with the two screws, and plug the electrical connector back in. Test all your fan speeds.
Frequently Asked Questions (FAQ)
Why does my fan only work on the high setting?
This is the classic symptom of a failed blower motor resistor. The high setting is wired to bypass the resistor and send full battery voltage directly to the fan motor. The lower speeds (1, 2, 3) require the resistor to be working. When it burns out, only the high setting functions.
Is it safe to drive with a bad blower motor resistor?
Yes, but with caution. The main issue is a lack of climate control. This can become a safety hazard in winter if you cannot defrost your windshield effectively.
Do I need to replace the blower motor at the same time?
Not usually. However, if the resistor has failed multiple times, it's a strong sign that the blower motor is old, drawing too much power, and causing the resistors to burn out. In that case, you should replace both the motor and the resistor.
What's the difference between a resistor for manual vs. automatic climate control?
Your 1995-1998 B2500 has manual controls. Resistors for manual and automatic systems are not interchangeable. You must use the correct part for your vehicle, which in this case is the simpler, more common manual-style resistor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4864957
4-pin connector, manual temperature control.
