Ford Club Wagon A/C O-Ring and Gasket Kit Guide for 1995-1998 Models
Leaking A/C in your Club Wagon? Here’s what you need to know about fixing it right with a new o-ring and gasket kit.
- A/C o-ring replacement requires special tools to evacuate and recharge the system; it is not a simple DIY job.
- Always inspect the evaporator air box seal under the hood for rot, as this is a very common cause of poor cooling on these vans.
- Anytime the A/C system is opened, you must also replace the accumulator/drier and orifice tube to ensure a lasting repair.
- Affordable aftermarket kits from brands like Four Seasons or Global Parts are a practical and effective choice for this repair.
Is Your Club Wagon's A/C Blowing Warm?
If the air conditioning in your Ford Club Wagon isn't blowing cold, the most common cause is a leak in the system that has allowed the refrigerant to escape. On a vehicle of this age, the original rubber o-rings at the hose and component connections are the most likely culprits. They degrade from age, heat, and vibration, eventually failing to hold a seal. Finding and fixing these leaks is key to restoring your A/C's performance.
A Very Common Problem on E-Series Vans
Before you spend a lot of money on A/C parts, check the foam seal around the evaporator air box under the hood on the passenger side. This seal is known to rot and fall apart on virtually all 1992-onward E-Series vans. When it fails, it allows hot air from the engine bay to be sucked directly into your ventilation system. This will make your A/C feel very weak or blow warm, even if the A/C system itself is fully charged and working perfectly. Replacing this rotted seal with new foam insulation can dramatically improve cooling performance.
Symptoms of Failing A/C O-Rings
- Warm Air From Vents: The most obvious symptom. As refrigerant leaks out, the system can no longer cool the air effectively.
- Visible Oily Residue: Refrigerant oil circulates with the refrigerant. When a leak occurs, this oil escapes and collects dirt, leaving a greasy patch on A/C lines, fittings, or components like the compressor and condenser.
- A/C System Shuts Down: A pressure switch will prevent the A/C compressor from turning on if the refrigerant level is too low, protecting it from damage.
Choosing the Right Aftermarket O-Ring Kit

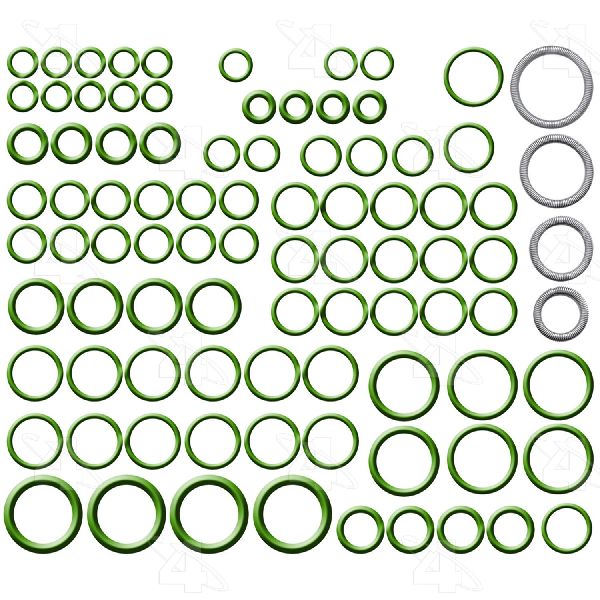

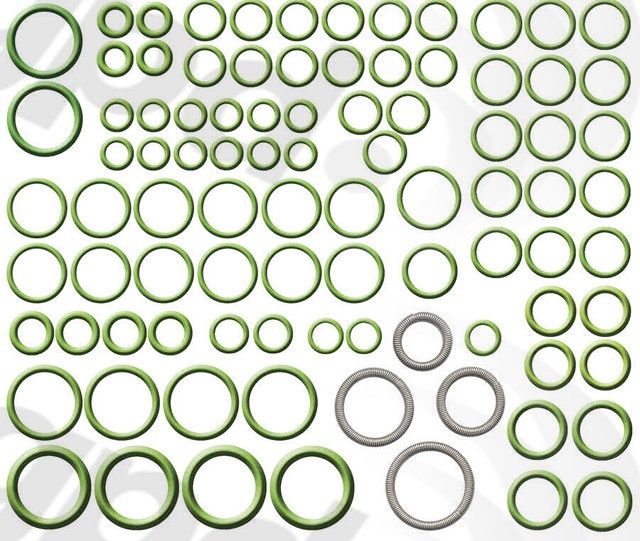

For a 1995-1998 Club Wagon, sourcing original Motorcraft o-rings can be difficult and expensive. Aftermarket kits from brands like Four Seasons and Global Parts (GPD) are a cost-effective and reliable solution.
- Brand Quality: For a simple part like an o-ring kit, both Four Seasons and GPD are considered acceptable quality. The most important factor is that the o-rings are made of the correct material (HNBR) for R-134a systems and that the kit is complete for your specific van (with or without rear A/C). Some mechanics have noted that aftermarket parts from brands like Four Seasons can be identical to the original Motorcraft parts, just in a different box.
- Completeness: The main advantage of a vehicle-specific kit over a generic assortment is that it contains the correct sizes and quantities of seals for all the connections in your van's A/C system. This is crucial for a vehicle like the Club Wagon, which can have extensive plumbing for a rear A/C unit.
| Brand | Price Range | Notes |
|---|---|---|
| Four Seasons / Global Parts | $22.51 - $23.74 | Cost-effective and readily available. A practical choice for this repair. |
| OEM (Motorcraft) | $40 - $70+ | May be difficult to source as a complete kit for a vehicle this old. |
Replace the Accumulator and Orifice Tube
Anytime the A/C system is opened for repair, you MUST replace the A/C accumulator (also called a receiver/drier) and the orifice tube. The accumulator contains a desiccant bag that absorbs moisture from the system. Once exposed to the atmosphere, this desiccant is saturated and can no longer protect your A/C system from corrosion. Failing to replace these components will cause your new compressor to fail quickly and will void the warranty on new parts.
Frequently Asked Questions (FAQ)
Can I replace the A/C o-rings myself?
This job is not recommended for the average DIYer. While physically swapping the o-rings is simple, the process requires specialized and expensive equipment. The A/C system must be legally evacuated of any remaining refrigerant before opening it, and then put under a deep vacuum to remove air and moisture before being precisely recharged. For safety, legal, and performance reasons, this job is best left to a qualified mechanic.
If I only found one leak, do I need to replace all the o-rings?
Yes. It is highly recommended to replace all the o-rings when the system is open. All the seals are the same age and have been exposed to the same conditions. If one has failed, others are likely to fail soon. Replacing them all at once saves you from having to repeat the expensive process of evacuating and recharging the system again in the near future.
What is the TSB for a water leak on the passenger floor?
Ford issued TSB 96-15-15 for 1994-1996 Econoline models regarding water (A/C condensate) leaking onto the passenger side floor. The cause is a blockage in the evaporator case drain. The fix requires removing the evaporator core to modify the case, making it the perfect time to replace all A/C o-rings and the accumulator, as the system will already be open.
Can I use a generic o-ring kit from a hardware store?
No. Automotive A/C systems using R-134a require specific green or black o-rings made from a material called HNBR (Hydrogenated Nitrile Butadiene Rubber). These are designed to withstand the specific pressures, temperatures, and chemicals (refrigerant and PAG oil) in the system. Using the wrong type of rubber will lead to a repeat failure.
Technical Specifications
Refrigerant Type: R-134a. O-Ring Material: HNBR (Hydrogenated Nitrile Butadiene Rubber).
