Chevrolet Blazer Vehicle Speed Sensor Guide (1995-2000)
Fix your Blazer's shifting problems and erratic speedometer by understanding and replacing the Vehicle Speed Sensor.
- A bad VSS is a very common cause of harsh shifting and speedometer problems on the 1995-2000 Blazer.
- The VSS is located on the transfer case (4WD) or transmission (2WD) and is an easy DIY replacement.
- For best results, choose an OEM-quality brand like ACDelco or Delphi to ensure reliability.
- This is an inexpensive fix; don't assume you have a major transmission problem without checking the VSS first.
Is Your Blazer Acting Up? It Could Be the Vehicle Speed Sensor
If you own a 1995-2000 Chevrolet Blazer, you have a tough, capable truck. But like any vehicle from this era, some parts wear out. The Vehicle Speed Sensor (VSS) is a common failure item that can cause some very confusing problems. Many owners first suspect a major transmission failure, but the fix is often this simple sensor. This article will help you understand the symptoms, choose the right replacement part, and get your Blazer running smoothly again.
Symptoms of a Failing VSS
A bad VSS sends wrong or no information to the truck's computer. This can cause several issues, some of which can seem serious.
- Harsh or Delayed Shifting: This is the biggest complaint. The 4L60E automatic transmission in your Blazer relies on the VSS to time its shifts. A bad sensor can make the transmission shift hard, late, or not at all, sometimes getting stuck in first gear. 🎬 Watch: How a bad VSS causes shifting issues and how to fix it.
- Erratic or Dead Speedometer: The VSS directly controls the speedometer. If the needle is jumping around or stuck at zero, the VSS is a likely culprit.
- ABS Light On: The VSS signal is also used by the Anti-lock Brake System (ABS). A faulty VSS can trigger the ABS warning light on your dash.
- Cruise Control Not Working: The cruise control system needs to know the vehicle's speed to function. If the VSS is bad, your cruise control won't engage.
- Check Engine Light: A failing VSS will often trigger a Check Engine Light and store a diagnostic trouble code, most commonly P0500, P0502, or P0503. 🎬 See this guide on diagnosing and fixing the P0500 trouble code.
VSS vs. Wheel Speed Sensors
It's important not to confuse the main Vehicle Speed Sensor with the individual ABS wheel speed sensors. The main VSS is located on the transmission or transfer case and measures overall vehicle speed for the drivetrain. The ABS sensors are at each wheel and are used primarily for the anti-lock brake system. While a bad VSS can cause an ABS light, the reverse is not always true. This guide focuses on the main VSS that controls the transmission and speedometer.
Choosing the Right Aftermarket VSS
When shopping for a new VSS, you'll find several brands. For a critical part like this that affects drivability, quality matters. Here’s a breakdown of the available brands, tiered by quality and reputation among GM truck owners.
Tier 1: OEM Quality
- ACDelco: As the original equipment manufacturer (OEM) for GM, ACDelco is the benchmark for quality, fit, and durability. If you want a part that you can install and not worry about, ACDelco is the top choice. There are different lines like "GM Original Equipment" and "Gold," with Original Equipment being the exact factory part.
- Delphi: Delphi was a major parts supplier for GM for many years. Their sensors are widely considered to be of OEM quality and are a reliable alternative to ACDelco.
Tier 2: Reputable Aftermarket
- Standard Ignition (SMP): Standard Motor Products is a well-respected aftermarket manufacturer that has been around for a long time. Their sensors are a solid choice if you're looking for a balance between quality and price.
- Walker Products: Walker is another established brand in the aftermarket, offering a dependable option.
Tier 3: Budget Options
- Dorman: Dorman is known for providing affordable and widely available parts. However, their quality can be inconsistent for electronic components. While a Dorman VSS might work fine, some mechanics and owners prefer to avoid them for critical sensors to prevent having to do the job twice.
- Other Brands (Holstein, Global Parts, etc.): These brands are typically budget-focused. While they offer the lowest price, there is less information available about their long-term reliability for this specific application. For a part that is relatively inexpensive and easy to replace, sticking with a Tier 1 or Tier 2 brand is often the wisest investment.
Pro Tip: On 4WD Blazers, the VSS is located on the rear output of the transfer case. On 2WD models, it's on the tail shaft of the transmission. It's a simple screw-in sensor that can be replaced with basic hand tools in your driveway.
Cost to Replace a Vehicle Speed Sensor
The cost is one of the best parts about this repair. It's very affordable, especially if you do it yourself.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket VSS | $21 - $158 |
| Shop Labor | $50 - $100 |
| DIY Total | $21 - $158 |
| Shop Total | $71 - $258 |
Frequently Asked Questions
Where is the VSS located on my 1995-2000 Blazer?

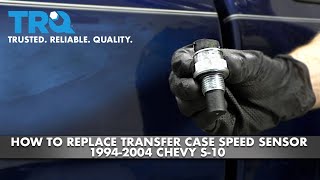

For 4-wheel drive models, the VSS is on the driver's side of the transfer case, 🎬 Watch: Step-by-step walkthrough for replacing the transfer case speed sensor. near where the rear driveshaft connects. For 2-wheel drive models, it is on the passenger side of the transmission's rear tail shaft. It is a screw-in sensor with an electrical connector.
Is this a difficult repair to do myself?
No, this is a great DIY job. It's typically held in by one bolt or is simply screwed into the housing. You'll need a wrench or socket to remove the old sensor, and then you just screw the new one in and plug in the connector. The most difficult part is safely getting under the truck. The job should take less than an hour.
Are there any recalls for the VSS on this Blazer?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database did not show any specific recalls for the Vehicle Speed Sensor on the 1995-2000 Chevrolet Blazer. Any recalls found for "Blazer" and "speed sensor" relate to much newer models or different sensor types.
What tools do I need to replace the VSS?
You will likely only need a wrench (often a 1-inch or adjustable wrench for metal body sensors, or a 3/4-inch for plastic body sensors) and possibly a pair of safety glasses. No special tools are required. It's also a good idea to disconnect the negative battery terminal before working on any electrical component.
My ABS light is on. Will replacing the VSS fix it?
It might. The main VSS provides a signal that the ABS module uses. If the VSS signal is bad, it can cause the ABS light to come on. If you are experiencing other VSS-related symptoms like shifting problems or a bad speedometer, replacing the VSS will likely fix the ABS light as well. However, if the ABS light is your only symptom, the problem could be one of the wheel-specific ABS sensors instead.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15547452 12382860
The sensor is typically a screw-in type with a 2-pin electrical connector. It is located on the rear output housing of the transfer case (4WD models) or transmission tail shaft (2WD models).
