Chevrolet Malibu Starter Motor Replacement Guide (1995-2000)
Is your Chevy Malibu clicking, grinding, or refusing to start? Here’s what you need to know about replacing your starter motor.
- The 1995-2000 Malibu generation actually began in 1997, but the starter is similar for these model years.
- A single loud 'click' with bright dash lights points to the starter, while rapid clicking usually means a weak battery.
- Replacement is a manageable DIY job for those with basic tools, taking about 1-2 hours.
- ACDelco is the OEM parts supplier; their 'Gold' line is a quality aftermarket option. Check for lifetime warranties on any brand you consider.
Is Your 1995-2000 Malibu Starter Failing?
A starter problem on your 1997-2000 Chevrolet Malibu (the fifth generation actually began in 1997) will usually leave you stranded. The symptoms can sometimes be confused with a dead battery, but there are a few key differences. Understanding these signs can help you correctly diagnose the issue and get your car running again.
Common Failure Symptoms
When a starter begins to fail, it gives clear warning signs. Ignoring them can lead to a no-start situation, often at the worst possible time.
- Single, Loud Click: You turn the key, and instead of the engine cranking, you hear one loud click. The dashboard lights come on, but the engine does nothing. This often points to a failed starter solenoid, which is part of the starter assembly.
- Engine Won't Crank: The most obvious sign is an engine that won't turn over at all. If the battery is good and the lights on the dash are bright, the starter is the likely culprit.
- Grinding Noise: A harsh grinding sound during or just after starting can mean the starter's gear is not meshing correctly with the engine's flywheel, or it's failing to retract properly. This can cause damage to both the starter and the flywheel if not addressed.
- Slow or Weak Crank: If the engine turns over much slower than usual, it can be a sign of a failing starter motor that is drawing too much current or is wearing out. However, this can also be caused by a weak battery or poor cable connections, so it's important to check those first.
- Intermittent Starting: The car starts fine one day but refuses to crank the next. This unpredictability is a classic sign of a starter on its way out, often due to a worn spot on the motor's internal components.
Don't Confuse a Bad Starter with a Bad Battery
A rapid-fire clicking sound when you turn the key is almost always a sign of a dead or weak battery, not a bad starter. The starter needs a huge amount of power to work, and a weak battery can't provide it, causing the solenoid to click on and off rapidly. Always test your battery and check for clean, tight cable connections before replacing the starter.
Choosing the Right Aftermarket Starter
For a 1995-2000 Malibu, you have several options for a new starter. While an OEM part from a dealer is an option, quality aftermarket parts offer a great balance of value and reliability.
OEM vs. Aftermarket Quality
Original Equipment Manufacturer (OEM) parts are what the car was built with. For this Malibu, the OEM brand is ACDelco, which is owned by General Motors. Aftermarket parts are made by other companies. The quality of aftermarket starters can vary widely. Some are built to meet or exceed OEM specifications, while others are cheaper and may not last as long. For a critical part like a starter, choosing a reputable aftermarket brand is important. A cheap, low-quality starter might fail prematurely, leaving you stranded again.
Available Brands: ACDelco and MPA
Two common brands you will find are ACDelco and MPA (Motorcar Parts of America).
- ACDelco: As the original GM parts provider, ACDelco is a safe bet. They offer different tiers of parts. Their "Gold" line (formerly called "Professional") is considered a high-quality alternative to the original dealer part, designed to meet GM's standards for fit and function. Reviews for ACDelco remanufactured starters are generally positive, often citing reliability.
- MPA (Motorcar Parts of America): MPA is a large aftermarket manufacturer that produces parts under brands like "Quality-Built". They state their parts are tested to meet or exceed OE specs and are designed for durability. While direct comparisons from Malibu owners are scarce, MPA is a well-established name in the aftermarket industry.
Pro Tip: Check the Warranty
When choosing between a new and a remanufactured starter, or between different brands, the warranty can be a deciding factor. Many quality aftermarket brands offer a Limited Lifetime Warranty. This provides peace of mind that if the part fails, you can get a replacement. Always check the warranty terms before you buy.
Starter Replacement Cost for 1995-2000 Chevrolet Malibu
The cost to replace the starter can be broken down into the price of the part and the cost of labor. The prices below are estimates and can vary by location and supplier.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $107 - $170 |
| Shop Labor | $127 - $186 |
| Total Estimated Cost (Parts + Labor) | $234 - $356 |
Frequently Asked Questions
Where is the starter located on a 1995-2000 Malibu?
The starter motor on the 1997-2000 Chevrolet Malibu with the 3.1L V6 engine is located at the front of the engine, where the engine block meets the transmission. You will need to safely raise the vehicle to access it from underneath.
Can I replace the starter myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill and the right tools. The process involves disconnecting the battery, raising the vehicle, removing a plastic flywheel cover, disconnecting the electrical wires from the starter, and unbolting the two main mounting bolts. It can be tight to work in, but it does not typically require removing other major components. The job usually takes 1-2 hours.
Were there any recalls for the starter on this Malibu?
No, there are no specific recalls or technical service bulletins (TSBs) from the NHTSA related to the starter motor for the 1995-2000 Chevrolet Malibu. Failures are generally due to age and normal wear and tear.
What tools are needed to replace the starter?
You will need a basic set of hand tools, including a ratchet, extensions, and sockets (typically 8mm, 10mm, 13mm, and 15mm). You will also need a floor jack and jack stands to safely lift and secure the vehicle. Always disconnect the negative battery terminal before beginning work.
Should I buy a new or remanufactured starter?
Both new and remanufactured starters from reputable brands can be reliable. A quality remanufactured starter from a brand like ACDelco has been disassembled, cleaned, and had all wear components (like bushings and contacts) replaced with new parts. Often, a high-quality remanufactured part is a better choice than a cheap, new part from an unknown brand. Check for a good warranty regardless of which you choose.

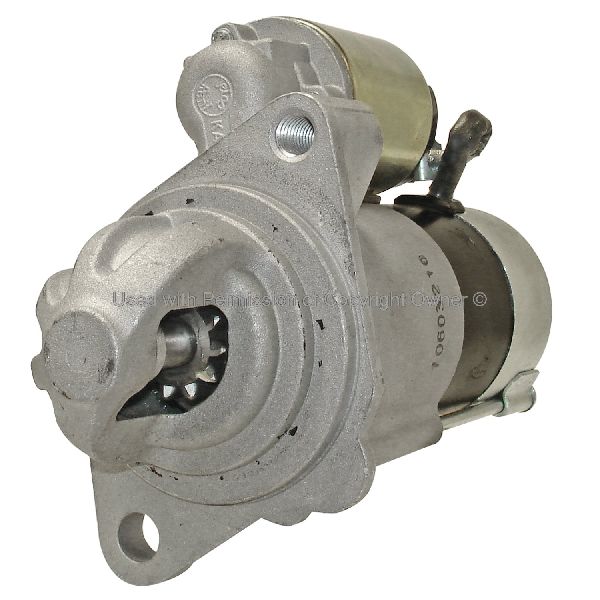

Technical Specifications
OEM Part Numbers: 10465459 12563881 19136230 9000833 9000847 ACDelco 336-1921A
Voltage: 12V, Power: 1.4 kW, Rotation: Clockwise, Pinion Teeth: 9, Design: Permanent Magnet Gear Reduction (PMGR)
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
