A Guide to the Engine Oil Pan Gasket for the 1995-2000 Chrysler Sebring
Tired of oil stains on your driveway? Here's what you need to know about replacing your Sebring's oil pan gasket.
- The replacement is a complex job on V6 models, often requiring the subframe to be lowered for access.
- To avoid repeating this difficult repair, choose a high-quality aftermarket brand like Victor Reinz.
- Thoroughly cleaning the mating surfaces of the block and pan is critical for a leak-free seal.
- There are no recalls for this specific issue; failure is due to the age and material of the original gasket.
Is Your Sebring's Oil Pan Gasket Failing?
The oil pan gasket on the first-generation Chrysler Sebring is made of a metal and rubber composite material. Over many years and thousands of heat cycles, this material can become hard, brittle, and shrink, losing its ability to create a tight seal. This is the most common reason for failure. Physical damage to the oil pan from road debris can also damage the gasket and cause a leak.
Symptoms of a Bad Oil Pan Gasket
- Oil Drips Under the Car: This is the most obvious sign. You will notice dark brown or black spots on your driveway or parking spot.
- Burning Oil Smell: If oil leaks onto the hot exhaust pipe that runs near or under the engine, it will burn off, creating a distinct and unpleasant smell.
- Smoke from the Engine Bay: In cases of a more significant leak, the oil burning on the exhaust can produce visible smoke. This can be a fire hazard and should be addressed immediately.
- Low Oil Warning Light: A severe enough leak will lower the oil level in the pan, which can trigger the low oil pressure or low oil level light on your dashboard. If you see this light, pull over and shut off the engine as soon as it is safe to do so to prevent engine damage.
Choosing the Right Aftermarket Gasket
Since replacing the oil pan gasket, especially on the V6 model, is a labor-intensive job, you don't want to have to do it twice. Choosing a quality gasket is important. While OEM Mopar gaskets are available, high-quality aftermarket brands are a reliable and cost-effective choice. Here’s a look at the brands available.
Brand Quality Tiers
- Top Tier (Recommended): Reinz / Victor Gaskets
Victor Reinz is a well-respected brand that is an original equipment manufacturer for many European car brands. They have a strong reputation for quality and engineering in the aftermarket. Forum users and mechanics often consider their gaskets to be on par with, or even better than, OEM parts. For a difficult job like this, spending a little more on a Victor Reinz gasket is a good investment for peace of mind. - Standard Tier: Apex

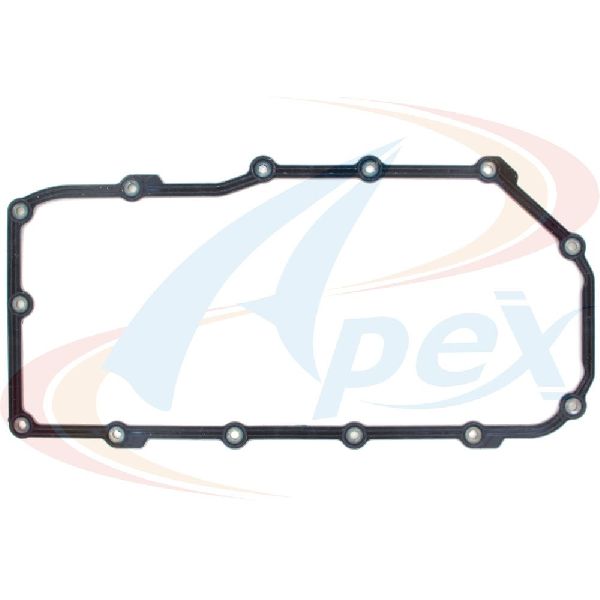

Apex is known as a more budget-friendly brand. While some users report success with Apex gaskets for less critical applications, for a leak-prone area that is difficult to access, it may be a riskier choice. Given the amount of labor involved in this repair, saving a few dollars on the gasket itself may not be worth it if it fails prematurely.
Cost to Replace a 1995-2000 Sebring Oil Pan Gasket
The cost is broken down into the part itself and the labor to install it. Labor is the biggest factor here, especially for the V6 engine which requires more work to access the pan.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $29.25 - $51.07 |
| New OEM (Mopar) Gasket | $47.00 - $70.00 |
| Shop Labor | $300 - $550 |
| Total Professional Replacement | $330 - $600 |
(Cost estimates are for reference and can vary based on location and the specific repair shop.)
Frequently Asked Questions (FAQ)
Is there a recall for the oil pan gasket on my Sebring?
No, there have been no recalls or common Technical Service Bulletins (TSBs) issued by Chrysler or the NHTSA for oil pan gasket failures on the 1995-2000 Chrysler Sebring.
How difficult is it to replace the oil pan gasket myself?
For the 2.5L V6 engine, this is a difficult DIY job. It requires safely lifting the vehicle, draining the oil, removing the starter, and partially lowering the engine subframe to get enough clearance to remove the pan. For the 4-cylinder models, access is generally easier but still requires significant work. This job is recommended for experienced DIY mechanics with the proper tools.
Should I use RTV sealant with the gasket?
Most modern gaskets are designed to be installed dry. However, it is standard practice to apply a small amount of oil-resistant RTV sealant at any point where three surfaces meet, such as where the timing cover and rear main seal cover meet the engine block. This helps prevent small leaks from these corner areas.
What is the torque spec for the oil pan bolts?
Oil pan bolts are small and do not require a lot of torque. The general specification for similar Chrysler engines of this era is around 105 in-lbs (about 9 ft-lbs). It is critical to tighten the bolts in a crisscross pattern to ensure the gasket is compressed evenly and to avoid overtightening, which can damage the gasket or the pan.
Technical Specifications
OEM Part Numbers: 4663739AB 4792608AA 4792608AB 4792608AC
Fits 1995-2000 Chrysler Sebring models with the 2.0L 4-Cylinder, 2.4L 4-Cylinder, or 2.5L V6 engines. Gasket material is typically a rubber and metal composite.
