Ford Contour Engine Oil Pressure Switch: A Guide for 1995-2000 Models
Seeing your oil light come on? It might be this simple switch, but don't ignore the warning.
- Never ignore an oil pressure warning light; always check your oil level immediately before assuming the switch is bad.
- On the 2.5L V6 engine, the switch is very difficult to access, which significantly increases repair time and cost.
- A common failure mode for this part is leaking oil directly from the switch body.
- For this part and vehicle age, a quality aftermarket brand is a cost-effective and reliable alternative to the more expensive OEM part.
Understanding the Oil Light in Your Contour
When you see the oil pressure light, your first thought should be to check the oil level. A faulty switch is a common issue on these cars, but you can't risk assuming it's just the switch. Always rule out a real low oil pressure problem first, as that can destroy your engine in minutes. A bad switch won't make your engine run rough or stall; it will only affect the warning light.
Common Failure Symptoms
A failing oil pressure switch on a Ford Contour can show several signs:
- Flickering Oil Light: The light may flicker, especially at idle when oil pressure is naturally lower.
- Oil Light Stays On: The light might stay on constantly, even if the oil level and pressure are fine.
- Leaking Oil: The switch itself can develop a leak. Owners have reported finding oil dripping from the switch, which is located behind the A/C compressor on the V6 engine. This is a very common failure point.
- No Oil Light at Startup: The oil light should briefly come on when you turn the key to 'On' as a bulb check. If it doesn't, the switch or the bulb might be bad.
Choosing the Right Aftermarket Switch
For a 1995-2000 Ford Contour, you have several options for a new oil pressure switch. The original part is from Motorcraft, Ford's own brand. However, given the age of the vehicle and the simple nature of the part, a quality aftermarket switch is a perfectly good choice and can save you money.
Here's a general breakdown of the brands available:
- OEM: Motorcraft is the original equipment. It's a guaranteed fit and quality, but it's also the most expensive option. The OEM part number for the 1999-2000 2.0L model is XS2Z-9278-AA.
- Premium Aftermarket: Brands like Standard Ignition (SMP), Hella, and Facet often have a strong reputation for quality that is close to or meets OEM standards. They are a solid choice for reliability without the full OEM price.
- Standard Aftermarket: Brands like Walker Products, True Tech, and Global Parts offer a cost-effective solution. For a simple switch like this, these parts are often sufficient and reliable for daily driving.
Pro Tip
A common failure for these switches is leaking oil from the body of the sensor. When replacing it, clean the area thoroughly so you can easily check for new leaks after the repair. On the 2.5L V6, the switch is notoriously hard to reach, so you want to use a quality part to avoid doing the job twice.
Cost of Replacing the Switch
The cost can vary significantly based on the part you choose and whether you do the work yourself. The biggest factor is which engine you have, as the labor for the V6 is much higher.
| Part/Service | Estimated Cost |
|---|---|
| OEM Motorcraft Switch | $40 - $90 |
| Aftermarket Switch | $6 - $45 |
| Shop Labor (2.0L I4) | $50 - $100 |
| Shop Labor (2.5L V6) | $120 - $250+ (due to difficult access) |
Known Issues & Recalls
Searches for official recalls and Technical Service Bulletins (TSBs) from the NHTSA did not find any specific issues related to the engine oil pressure switch for the 1995-2000 Ford Contour. While newer Ford models have had recalls for oil pressure problems, those do not apply to this vehicle. The most common known issue, based on owner forums, is the switch leaking oil, particularly on the 2.5L V6 engine.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on my Ford Contour?
On the 2.5L V6 Duratec engine, owner forums confirm the switch is located on the front of the engine block, behind and slightly above the A/C compressor. It is very difficult to see and access. On the 2.0L Zetec engine, it is typically located on the engine block, often near the oil filter housing.
Can I replace the oil pressure switch myself?
For the 2.0L engine, it is a relatively easy DIY job if you can locate the switch. For the 2.5L V6, it is a difficult job due to the location behind the A/C compressor. Many owners report that the compressor may need to be unbolted and moved to gain access, which makes it a much more involved repair. You will also likely need a special deep socket designed for oil pressure switches.
Is a flickering oil light always a bad switch?
No, and it's dangerous to assume so. A flickering light can mean your oil level is low, the oil is worn out, the idle speed is too low, or, in a worst-case scenario, the oil pump is failing or engine bearings are worn. Always verify your oil level immediately and have the pressure professionally tested if the level is correct.
Will a bad oil pressure switch trigger a Check Engine Light?
Usually, no. A bad oil pressure switch will trigger the dedicated red oil pressure warning light on the dashboard. While a modern car's computer might log a fault code like P0520 for the circuit, the primary warning for the driver is the oil light, not the Check Engine Light.
Technical Specifications
OEM Part Numbers: XS2Z-9278-AA

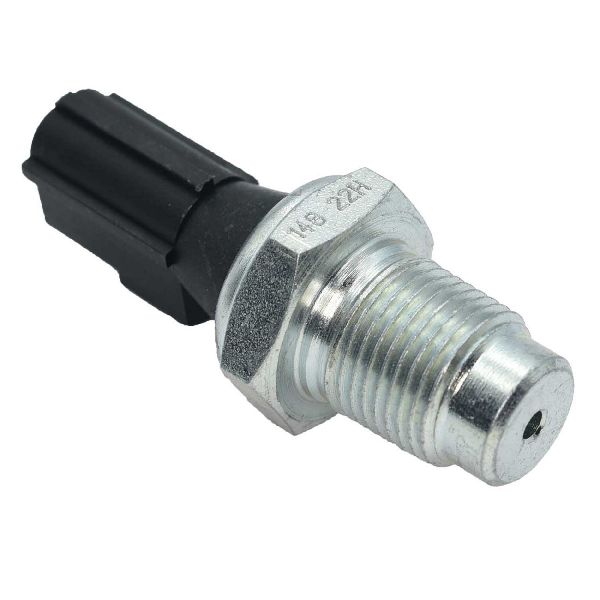

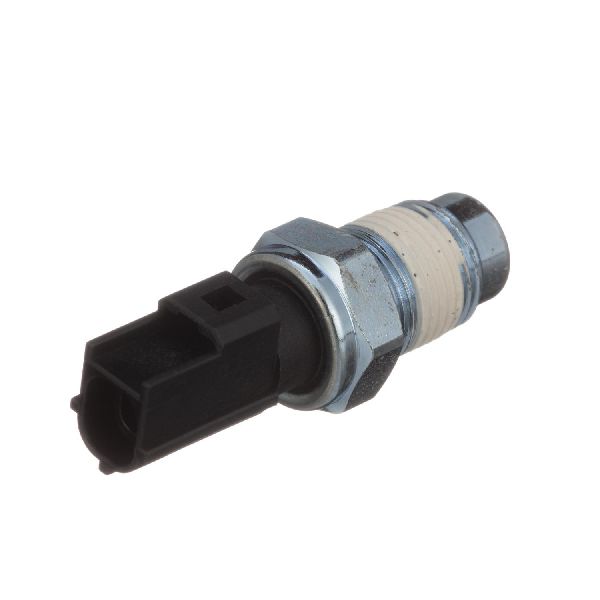

This is a simple pressure-activated switch, not a variable pressure sensor. It is designed to trigger the dashboard warning light at a low-pressure threshold.
