Ford F-150 A/C Clutch Cycle Switch Guide for 1995-2000 Models
Is your F-150's A/C blowing warm? This simple switch is a common culprit and an easy fix.
- A faulty A/C clutch cycle switch is a very common reason for A/C problems on a 1995-2000 F-150.
- Symptoms often mimic a system low on refrigerant, so check refrigerant levels first.
- Replacement is extremely easy and does not require discharging the A/C system due to the Schrader valve it mounts on.
- Aftermarket brands like Four Seasons and Global Parts offer a reliable, cost-effective alternative to the more expensive OEM part for this component.
Is Your F-150's A/C Acting Up? Check the Clutch Cycle Switch
If the air conditioning in your 1995-2000 Ford F-150 isn't blowing cold, has stopped working entirely, or cycles on and off rapidly, a faulty A/C clutch cycle switch is a likely suspect. This small, inexpensive sensor plays a huge role in your truck's A/C performance. Before you assume you have a major problem like a bad compressor 🎬 Watch: Full A/C system overhaul including compressor and accumulator replacement, it's worth testing and potentially replacing this switch.
Symptoms of a Failing A/C Clutch Cycle Switch
- A/C compressor won't turn on: If the switch fails in the 'open' position, it won't send the signal for the compressor clutch to engage, and the A/C system will not start. This is one of the most common symptoms.
- A/C blows warm or intermittently cold: A failing switch can give false pressure readings, causing the compressor to cycle on and off too frequently or not run long enough to properly cool the cabin.
- Noticeable clicking from the engine bay: While some clicking is normal as the compressor cycles, a faulty switch can cause rapid, constant clicking as it struggles to regulate the system.
Don't Mistake Low Refrigerant for a Bad Switch
Many symptoms of a bad clutch cycle switch are identical to those of a system low on refrigerant. The switch is designed to prevent the compressor from running if the refrigerant level is too low to protect it from damage. Always check your system's refrigerant level before replacing the switch.
Choosing the Right Aftermarket Part: OEM vs. Aftermarket
For a simple electrical switch like this, aftermarket parts offer excellent value. The original Motorcraft part is a reliable choice, but brands like Four Seasons and Global Parts produce quality replacements that function identically to the original. Given the age of the 1995-2000 F-150, a reputable aftermarket switch is a smart, cost-effective repair. There is little practical difference in performance or longevity for this specific component, making the significant cost savings of an aftermarket part very appealing.
| Part Type | Cost |
|---|---|
| New OEM (Motorcraft) | $35 - $55 |
| New Aftermarket | $14.90 - $28.86 |
| Shop Labor | $50 - $100 |
Installation Tips
DIY-Friendly Replacement
Replacing the A/C clutch cycle switch is a great job for a DIYer. It's located on the A/C accumulator and simply unscrews. On these F-150s, the switch is mounted on a Schrader valve, similar to a tire valve. This means you can replace it without losing refrigerant or needing to evacuate the A/C system. Simply unscrew the old switch and quickly screw on the new one. 🎬 See this quick walkthrough of the pressure switch swap A very small, brief hiss of refrigerant may escape, which is normal.
Frequently Asked Questions
Can I replace the A/C clutch cycle switch myself?
Yes, this is a very easy replacement. It requires no special tools beyond perhaps a wrench to loosen the old switch if it's tight. It's located on the A/C accumulator on the passenger side of the engine bay and can be swapped in minutes.
Do I need to recharge my A/C system after replacing this switch?
No. The switch is threaded onto a Schrader valve, which seals the system when the switch is removed. You can replace it without discharging and recharging the A/C system.
How do I test the A/C clutch cycle switch?
A simple test is to bypass the switch. Unplug the electrical connector and use a paperclip or jumper wire to connect the two terminals in the connector. If the A/C compressor clutch engages, the switch is likely bad (assuming the system has adequate refrigerant). Do not run the system like this for more than a few seconds, as it bypasses the safety function.
Are there any recalls for the A/C system on the 1995-2000 F-150?
No, there are no specific recalls for the A/C clutch cycle switch or the A/C system on the 1995-2000 Ford F-150 according to NHTSA data searches.

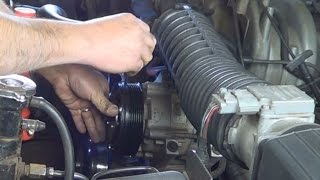

Helpful Videos
Technical Specifications
OEM Part Numbers: F5VY-19E561-A F3AZ-19E561-A
Type: Low-Pressure Cycling Switch. Connector: 2-pin rectangular. Thread: M12x1.5 Female. Pressure settings: On at ~44 psi, Off at ~25 psi.
We Have This Part in Stock
