GMC Jimmy Window Crank Handle Replacement Guide (1995-2000)
If your window crank is spinning, stripped, or broken, this guide is for you.
- Failure is almost always the plastic handle itself, not the more complex regulator inside the door.
- Replacement is a simple, 10-minute job that does not require removing the door panel.
- A special tool is helpful but not necessary; a rag can be used to pop off the retaining clip.
- If the window is hard to move, lubricate the regulator tracks to avoid breaking the new handle.
Is Your Window Crank Handle Failing?
The window crank handle on the 1995-2000 GMC Jimmy is a part that sees a lot of use. Over time, the original plastic handles can become brittle and fail. If you're having trouble with your manual windows, the handle is the first and most likely part to check.
Common Failure Symptoms
- Spinning Handle: The handle turns, but the window doesn't move. This usually means the plastic splines inside the handle have stripped out.
- Cracked or Broken Handle: The plastic handle itself may have visible cracks or have broken completely, making it impossible to turn.
- Handle Falls Off: The retaining clip that holds the handle to the regulator shaft may have failed or popped off, causing the handle to come loose.
- Stiff Operation: If the handle is very hard to turn, the problem might be a dry or failing window regulator mechanism inside the door. This stiffness puts extra stress on the handle and can cause it to break.
Pro Tip: Before installing a new handle, try moving the window regulator shaft with a pair of pliers. If it's extremely difficult to turn, the regulator mechanism inside the door panel likely needs to be lubricated with white lithium grease to prevent breaking your new handle.
Choosing the Right Aftermarket Handle
For the GMC Jimmy, you have a few good aftermarket options. The original OEM handles were plastic and not known for long-term durability. Aftermarket parts offer either a direct replacement or a significant upgrade in materials.
Brand Tiers
- Standard Replacement (Dorman, Motormite): These brands offer direct replacements that look and function like the original part. They are typically made of plastic and are very affordable. While some Dorman parts have a reputation for inconsistent quality, for a simple mechanical part like a window crank, they are a reliable and cost-effective solution.
- Premium/Custom (Lokar): Brands like Lokar specialize in high-end custom parts. Their window cranks are often made from billet aluminum, offering superior durability and a custom look. These are more expensive and are considered an upgrade rather than a standard replacement. They are a great choice if you want a more robust handle that will last longer and improve your interior's appearance.
Replacement Cost
Replacing a window crank handle is an inexpensive repair. The part itself is affordable, and if you choose to have a shop do it, the labor is minimal.
| Part Type | Cost Range |
|---|---|
| New Aftermarket (Plastic) | $19.78 - $25.00 |
| New Aftermarket (Billet/Custom) | $35.00 - $48.61+ |
| Shop Labor | $20 - $60 |
Common Mistake: Don't assume a broken handle means you need a new window regulator. In most cases, the handle is the only part that needs to be replaced. Check the splines on the regulator shaft; if they look intact, just replacing the handle should fix the problem.
Frequently Asked Questions
Do I need a special tool to replace the handle?
A special forked tool exists to remove the retaining clip, but it's not required. You can use a simple rag or cloth and slide it behind the handle to snag and pop the clip off. A small hook tool or two paper clips can also work. Many replacement handles come with a new clip.
Is the driver's side handle the same as the passenger's side?
Yes, for the 1995-2000 GMC Jimmy, the window crank handles are typically interchangeable between the driver, passenger, and rear doors. However, always confirm the part fitment before purchasing.
Why did my window crank handle break?
The most common reason is age. The plastic becomes brittle over 20+ years and cracks from repeated use. Another cause is a stiff or binding window regulator, which puts too much force on the handle when you try to roll the window up or down.
Can I upgrade from a plastic handle?
Yes. You can find aftermarket handles made from more durable materials like billet aluminum. These are a good investment if you want a permanent solution or a more custom interior look. Brands like Lokar offer these premium options.
Technical Specifications

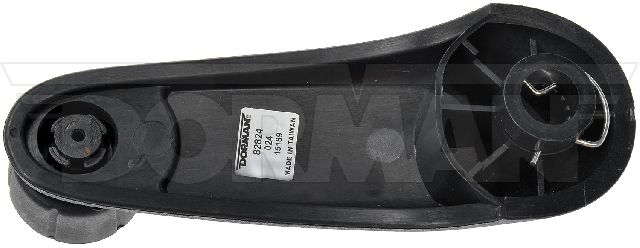

This part connects to the window regulator via a splined shaft and is held in place by a C-style retaining clip.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
