1995-2000 Mazda B3000 Hazard Warning and Turn Signal Flasher
Having trouble with your turn signals or hazard lights? A bad flasher relay is the most likely cause.
- The flasher relay on the 1995-2000 B3000 controls both turn signals and hazard lights.
- Common failure symptoms include no flashing, lights stuck on, or rapid flashing (hyperflash).
- The relay is located under the driver's side dash, left of the steering column, and is a simple part to replace for a DIYer.
- If hazards work but turn signals don't, the problem is likely the multi-function switch, not the flasher relay.
Is Your B3000's Flasher Failing? Common Symptoms
Because the flasher relay controls both the turn signals and hazard lights, any problem with it will affect both systems. If you notice any of these issues, your flasher relay is likely worn out and needs replacement:
- No Lights at All: Neither the turn signals nor the hazard lights work. You won't hear the usual clicking sound from under the dash.
- Lights Stay On (No Flash): When you activate the turn signals or hazards, the lights come on but don't blink. This can happen if the relay gets stuck in the 'on' position.
- Rapid Blinking (Hyperflash): The turn signals blink much faster than normal. This often happens when a regular flasher is used with LED bulbs, but it can also be a sign of a failing relay.

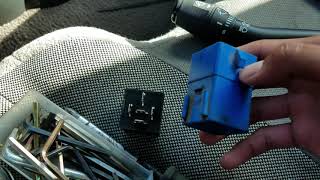

- Intermittent Operation: The signals work sometimes and not others, or they stop flashing after being on for a short time. 🎬 Watch: Diagnose and repair turn signal failure on your truck
Pro Tip: Check Fuses First
Before replacing the flasher, it's always a good idea to check the fuses. A blown fuse can cause the lights to stop working completely. On these trucks, also check the multi-function switch (the turn signal stalk), as it can also cause similar problems, though a bad flasher relay is more common.
Choosing a New Aftermarket Flasher
For a vehicle like the 1995-2000 Mazda B3000, finding a new OEM (Original Equipment Manufacturer) flasher from Mazda is unlikely. Aftermarket parts are the most practical and available option. The Mazda B3000 from this era is a rebadged Ford Ranger, so parts are widely available and often identical.
Standard Ignition (Standard Motor Products): This is a well-regarded aftermarket brand known for producing reliable electronic components that meet or exceed original specifications. For a critical safety part like a flasher, a quality aftermarket brand like Standard is a dependable choice and a significant step up from unbranded, generic parts. It is designed to provide a long service life under various conditions.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Ignition) | $30 - $45 |
| Shop Labor for Installation | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the hazard flasher located on my 1995-2000 B3000?
The flasher relay is located under the driver's side dashboard, usually to the left of the steering column. It is a small, square plastic box (often blue or yellow) that is clipped onto a metal bracket. You may need to remove the lower dash panel to access it easily.
Do the hazard lights and turn signals use the same flasher?
Yes, on the 1995-2000 Mazda B3000 and its Ford Ranger counterpart, a single combination flasher relay controls both the turn signals and the four-way emergency flashers.
Why are my turn signals blinking really fast (hyperflash)?
Hyperflash is most commonly caused by one of two things: a burnt-out turn signal bulb or a failing flasher relay. The flasher is designed to blink at a certain speed based on the electrical load from the bulbs. If a bulb burns out, the load changes, and the flasher blinks quickly to let you know there's a problem. If all your bulbs are good, the flasher itself is likely the cause.
If my hazard lights work but my turn signals don't, is it still the flasher?
This is a classic symptom of a bad multi-function switch (the lever on your steering column), not the flasher relay. Because the hazards and turn signals use the same flasher and bulbs, if one system works and the other doesn't, the problem is usually in the switch that controls the non-working system.

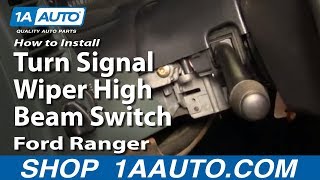

🎬 See how to replace the multi-function combination switchDo I need a special flasher for LED bulbs?
Yes. Standard flashers are not compatible with the low power draw of LED bulbs and will cause hyperflashing. If you have upgraded or plan to upgrade your B3000's turn signal bulbs to LEDs, you must install an electronic, LED-compatible flasher relay to ensure they blink at the correct speed.
🎬 Watch: How to fix LED hyperflash with a new relayHelpful Videos
Technical Specifications
OEM Part Numbers: F67B-13350-AA
5-Terminal Combination Electronic Flasher Relay
