Essential Guide to the 1995-2000 Mercedes-Benz E300 Disc Brake Hardware Kit
Stop brake noise and ensure even pad wear on your W210 E300 by replacing this critical, often-overlooked kit.
- Always replace the disc brake hardware kit when you replace the brake pads on your E300 to prevent noise.
- Thoroughly cleaning rust and debris from the caliper bracket before installing new hardware is critical for a quiet brake job.
- Quality aftermarket brands like Carlson, Dorman, Centric, and Dynamic Friction are reliable and cost-effective choices for this part.
- Brake noise after a brake job is most often caused by reusing old hardware or improper installation, not faulty pads.
Symptoms of Failing Disc Brake Hardware
When the clips and springs in your E300's brake hardware kit wear out, get corroded, or lose their tension, you'll notice problems. These issues are often mistaken for bad brake pads or rotors, but the hardware is a common culprit, especially on the W210 chassis.
- Brake Noise: Squealing, grinding, or rattling sounds, particularly during light braking or when releasing the pedal, are the most common signs. This happens because the pads are vibrating without the proper tension from the clips.
- Uneven Brake Pad Wear: If pads can't slide freely, one might wear down faster than the other. Corroded or bent hardware can cause a pad to stick.
- Brake Drag: A pad that is stuck can remain in contact with the rotor even when you're not braking. This leads to overheating, a burning smell, and premature wear on both the pad and rotor.
Choosing the Right Aftermarket Hardware Kit
For the W210 E300, you don't need to buy expensive OEM hardware to get a quality, quiet brake job. Aftermarket kits are widely available and perform well, provided you choose a reputable brand and install them correctly. The key is to replace the hardware every time you replace your brake pads. Many brake pad sets even include a new hardware kit.
Pro Tip: It's All About the Prep
The biggest cause of brake noise after a pad change is not cleaning the caliper bracket where the hardware clips sit. Use a wire brush to remove all rust and debris from the contact points before installing new hardware. Apply a thin layer of high-temperature brake grease to the points where the pads touch the hardware, but be careful not to get any grease on the pad friction material or the rotor surface.
Aftermarket Brand Tiers
The brands available for your E300 fall into a few categories, all of which are considered reliable for this application.
- Standard Economy/OE-Style (Good): Brands like Carlson, Centric, Dorman, and Raybestos are the workhorses of the aftermarket. They provide kits that meet or exceed original factory specifications and are a cost-effective way to ensure your brakes work as they should. Carlson is a major supplier of brake hardware components across the industry.
- Enhanced Aftermarket (Better): Brands like Dynamic Friction (DFC) sometimes offer an upgrade over standard kits. They may use stainless steel for their clips instead of zinc-plated steel, offering better corrosion resistance, which is a plus in areas with road salt.
Known Issues, Recalls, or TSBs
Searches of the National Highway Traffic Safety Administration (NHTSA) database and other technical resources did not find any specific recalls or Technical Service Bulletins (TSBs) related to the disc brake hardware for the 1995-2000 Mercedes-Benz E300. Recalls found for Mercedes-Benz vehicles were for newer models and different brake components, such as brake boosters or software issues.
Estimated Cost for Disc Brake Hardware Kit Replacement
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit | $5.96 - $21.67 |
| New OEM Kit | $30 - $60 |
| Shop Labor (as part of brake job) | $100 - $250 |
Note: Labor costs are estimated as part of a full brake pad and rotor replacement, as hardware is not typically replaced on its own.
Frequently Asked Questions
Do I really need to replace the hardware with every brake job?
Yes. It is highly recommended. The old clips and springs lose tension from thousands of heating and cooling cycles. They also become corroded and brittle. Reusing old hardware is a primary cause of brake noise and improper pad wear. Given the low cost of a new kit, it is cheap insurance for a quiet, effective brake job.
Why are my new brakes squeaking if I used new pads and rotors?
This is a very common issue. The top reasons are: not replacing the hardware, failing to clean the caliper bracket thoroughly before installing the new hardware, or not applying brake grease to the metal-to-metal contact points (back of pads, hardware clips). Sometimes, new pads also have a break-in period where some noise can occur.
Does this kit fit both the front and rear brakes?
No, front and rear brake hardware kits are different and sold separately. The calipers and pads are different sizes between the front and rear axles. Ensure you are purchasing the correct kit for the axle you are servicing.

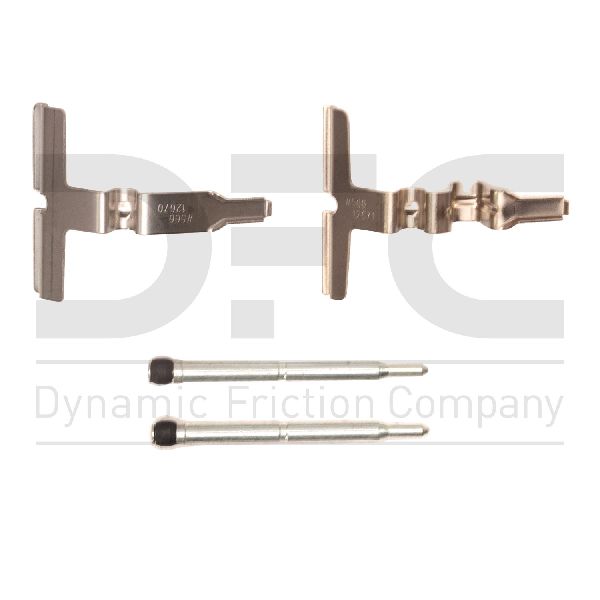

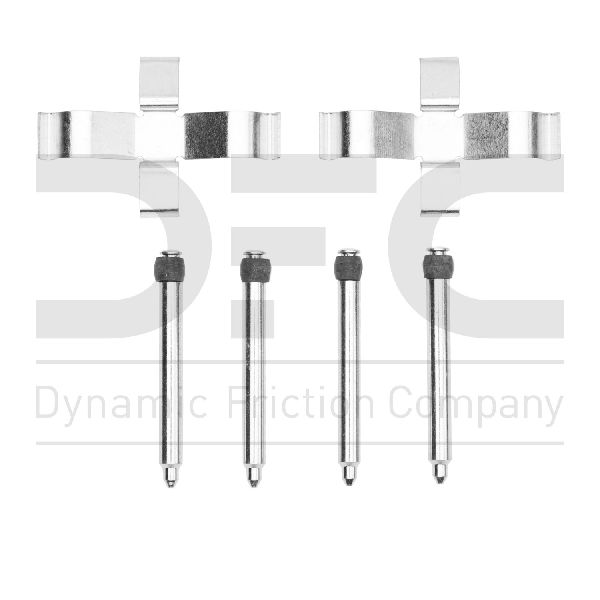

What is included in a typical disc brake hardware kit?
A kit for your E300 will typically include the anti-rattle clips (which fit into the caliper bracket) and pad retaining springs. Some kits may also include new guide pin boots. It's important to verify the contents of the kit before purchasing.
Technical Specifications
Kit typically contains anti-rattle clips and pad retaining springs. Materials may be zinc-plated steel or stainless steel. Separate kits are required for front and rear axles.
