Mitsubishi Eclipse Engine Oil Pressure Switch: A 1995-2000 Guide
Understanding the small but critical sensor that protects your Eclipse's engine from oil starvation.
- A flickering oil light is the most common sign of a failing switch on a 2G Eclipse, but always check the oil level first.
- The switch is a common source of oil leaks near the oil filter housing.
- Replacement is a simple DIY task, but using a special socket and thread sealant is recommended.
- Do not drive if the oil light is on and you suspect a real pressure problem; this can destroy your engine.
Is Your Oil Light Flickering? Don't Ignore It.
For 1995-2000 Mitsubishi Eclipse owners, particularly those with the 4G63T or 420A engine, the oil pressure system is the lifeblood of your motor. A flickering oil light at idle is a common complaint and often points to a problem with the oil pressure switch. While it can be a simple fix, ignoring it can lead to catastrophic engine failure. This guide will help you understand the symptoms, choose the right replacement part, and know what to expect during the repair.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can create confusing situations. It might leak oil, give false warnings, or fail to warn you of a real problem. Here are the most common signs:
- Oil Light Flickering at Idle: This is the most frequent symptom reported by Eclipse owners. The light may come on when you're stopped at a light and go away as soon as you rev the engine.
- Oil Leaks: The switch itself can fail and leak oil. The sensor is located near the oil filter housing, so a leak in this area is a strong indicator. A thin internal membrane can break down, causing oil to seep through the switch.
- Incorrect Gauge Readings: If your Eclipse has a factory oil pressure gauge, a bad sending unit (a more complex type of switch) can cause the needle to behave erratically, pegging at maximum or dropping to zero.
- Oil Light Stays On or Never Comes On: A switch can fail in two ways: either stuck "on" (light always illuminated) or stuck "off" (light never illuminates, even during the initial key-on check). The latter is particularly dangerous as it won't warn you of a real low-pressure event.
First, Check Your Oil Level!
Before assuming the switch is bad, always check your engine oil level and condition. A flickering light can also be a sign of genuinely low oil level or an actual mechanical problem like a failing oil pump. Never ignore an oil pressure warning light.
Choosing an Aftermarket Replacement Switch
For a vehicle of this age, aftermarket parts are a practical choice. The quality can vary, but several reputable brands offer reliable options. OEM parts are available but can be significantly more expensive. Based on general reputation and availability, here’s a breakdown of common aftermarket brands:
- Premium Tier (Good Reputation): Brands like Hella and Standard Ignition (SMP) are often considered reliable aftermarket choices. Hella is a known OEM supplier for many European brands, and their quality is generally respected. Standard Motor Products has a long history, and while they have different product lines, their main series is typically well-regarded.
- Standard Tier (Economical Options): Brands like Facet, Holstein, and Rostra offer cost-effective solutions. Facet emphasizes its manufacturing process and use of quality materials like Mylar membranes for oil resistance. Rostra is also a manufacturer of various automotive electronics. These are generally considered standard replacement grade.
Pro Tip: Get the Right Part
The 1995-2000 Eclipse could be equipped with just a simple switch for the warning light or both a switch and a separate sending unit for a dashboard gauge. Be sure to order the correct part for your car's specific configuration. Check if you have a factory gauge before ordering.

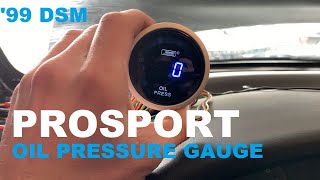

🎬 Watch: How to install an aftermarket oil pressure gauge.Cost of Replacing an Engine Oil Pressure Switch
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $7 - $120 |
| New OEM Switch | $30 - $55 |
| Shop Labor | $50 - $120 |
Frequently Asked Questions
Where is the oil pressure switch located on a 1995-2000 Eclipse?
The oil pressure switch is located on the engine block, typically near the oil filter housing. You will need to get under the car to access it. It's a small sensor with a single electrical connector.
Can I replace the oil pressure switch myself? 🎬 Watch: How to replace the switch using basic hand tools.
Yes, this is a DIY-friendly job for someone with basic tools. It involves jacking up the car safely, unplugging the electrical connector, and using a special socket or wrench to unscrew the old switch and install the new one. It's often easiest to do during an oil change when the oil filter is removed for better access.
Do I need a special tool to replace the oil pressure switch?
A special oil pressure switch socket is recommended. These sockets are designed to fit over the body of the sensor. In some cases, a deep well socket of the correct size (often 24mm or 1 1/16") may work. Using the wrong tool can damage the new switch.
Should I use thread sealant on the new switch?
Yes. It is recommended to apply a suitable, oil-resistant thread sealant to the threads of the new switch to prevent leaks. Some new switches come with sealant pre-applied. Do not get sealant in the small hole at the tip of the sensor.
Were there any recalls for the oil pressure switch on the 1995-2000 Eclipse?
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any specific recalls or technical service bulletins (TSBs) for the engine oil pressure switch on the 1995-2000 Mitsubishi Eclipse.
Helpful Videos
Technical Specifications
OEM Part Numbers: MD138993 1258A002
Location: Engine block, near oil filter housing. Socket Size: Typically 24mm or 1 1/16 inch deep socket/specialty socket.
