Power Steering Pump Guide for 1995-2001 AM General Hummer H1
Your Hummer H1's power steering pump does more than just steer—it also powers your brakes.
- The pump powers both steering and Hydro-Boost brakes; failure affects both systems.
- Standard aftermarket pumps may lack the required pressure; use a part specified for the H1.
- Check for the open safety recall (05V-043) on the Hydro-Boost accumulator, as it can cause similar symptoms.
- Properly bleeding all air from the system after installation is critical for function and longevity.
Understanding Power Steering Pump Failure in Your Hummer H1
Critical System: Powers Steering and Brakes
The Hummer H1 uses a Hydro-Boost system, where the power steering pump provides hydraulic assistance for both steering and braking. Using a standard, low-pressure aftermarket pump can result in poor steering and dangerously stiff brake pedal feel. It is essential to use a pump that meets the original factory pressure specifications.
A failing power steering pump will give you several warning signs. Because this part is so important for controlling your vehicle, you should address these symptoms as soon as they appear. Ignoring them can lead to a complete loss of power assist for both steering and braking.
Symptoms of a Failing Power Steering Pump
- Whining or Groaning Noises: A common first sign is a whining sound that gets louder when you turn the steering wheel or as engine RPMs increase. This is often caused by low fluid or air in the system.
- Stiff or Heavy Steering: If turning the wheel, especially at low speeds, suddenly requires much more effort, the pump is likely not producing enough pressure.
- Slow Steering Response: A noticeable delay between turning the wheel and the vehicle responding is a clear sign of a failing pump.
- Fluid Leaks: Puddles of red or brownish fluid under the front of your Hummer indicate a leak from the pump, hoses, or seals. Low fluid levels can quickly damage the pump.
- Hard Brake Pedal: Since the pump powers the Hydro-Boost, a failing pump can lead to a brake pedal that is very hard to press.
Choosing the Right Aftermarket Power Steering Pump
Not all aftermarket pumps are created equal, especially for a heavy-duty vehicle like the Hummer H1. The market consists of new and remanufactured parts, and quality can vary significantly.
Tier 1: New Production Pumps
These pumps are built from 100% new components and are designed to meet or exceed original equipment (OE) specifications. Given the critical nature of the H1's hydraulic system, a new pump is the most reliable choice.

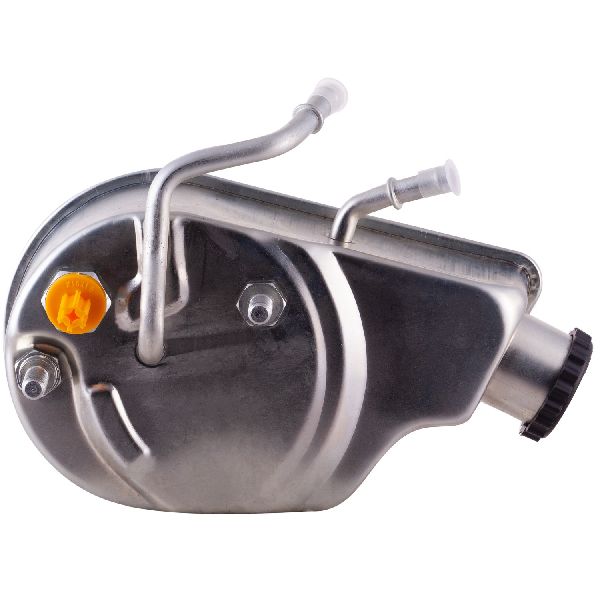

- PWR (Power Steering Wholesalers): This brand offers 100% new pumps engineered in North America. They are designed to meet OE performance requirements and often come with a new reservoir, which is recommended for a complete and clean installation.
Tier 2: Remanufactured Pumps (Buyer Beware)
Remanufactured pumps are original units that have been rebuilt with new seals and tested. However, quality control can be inconsistent. Widespread forum discussions from vehicle owners report issues with these brands, including receiving defective parts or experiencing premature failure.
- Cardone: A very common aftermarket brand, but reviews are mixed. Many users report issues with leaks, noise, or complete failure shortly after installation. While some have success, the risk of getting a bad part is a common complaint.
- BBB Industries: Similar to Cardone, this brand has a mixed reputation. Some users have reported receiving poorly rebuilt components that fail quickly.
Pro Tip: When replacing your pump, it's the perfect time to flush the entire power steering system and replace the fluid. Also, inspect all power steering hoses for cracks, swelling, or leaks and replace them as needed to prevent contamination of your new pump.
Known Issues: Recalls and Service Bulletins
While there are no direct recalls for the power steering pump on the 1995-2001 Hummer, there was a significant safety recall for the related Hydro-Boost system. Recall 05V-043 (GM Recall 05006) was issued because the brake booster accumulator could crack and detach, causing a sudden loss of hydraulic fluid. This failure results in the loss of power braking and steering assist, increasing the risk of a crash. It is crucial to ensure this recall has been addressed on your vehicle.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $79.89 - $329.07 |
| New OEM Pump | $395.00 - $650.00+ |
| Shop Labor | $200 - $550 |
| Total Estimated Cost | $280 - $980+ |
Frequently Asked Questions
Why is the Hummer H1 power steering pump so special?
It's a high-pressure unit designed to power both the heavy-duty steering system and the Hydro-Boost brake assist. A standard pump from a passenger car lacks the pressure and durability required, which can lead to system failure.
Can I install the pump myself?
Yes, if you are an experienced DIY mechanic. The job requires a special power steering pulley puller/installer tool, which can be rented from auto parts stores. The most critical part of the process is properly bleeding the system of all air after installation.
What happens if I don't bleed the system correctly?
Air trapped in the hydraulic lines will cause the pump to whine loudly, and you will experience jerky, inconsistent steering and braking. Air in the fluid can also cause the pump to overheat and fail prematurely.
Should I buy a new or remanufactured pump?
For the Hummer H1, a new pump is strongly recommended due to the inconsistent quality of many remanufactured units and the critical safety function of the pump. While more expensive, a new pump provides greater reliability.
Technical Specifications
OEM Part Numbers: 6003042 6006781
High-pressure hydraulic vane pump with integrated or remote reservoir, designed to supply pressure to both the steering gear and the Hydro-Boost brake system.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
