A Mechanic's Guide to the 1995-2001 Dodge Avenger Engine Cylinder Head Bolt Set
Everything you need to know before replacing the head bolts on your 2.0L or 2.5L V6 Avenger engine.
- Head bolts on the 1995-2001 Avenger are Torque-to-Yield (TTY) and MUST be replaced whenever the cylinder head is removed.
- Head bolt replacement is part of a head gasket job; symptoms are related to head gasket failure like overheating and milky oil.
- This is an advanced, labor-intensive repair requiring special tools like a torque angle gauge. It is not recommended for DIY beginners.
- Verify you are buying the correct bolt set for your engine, as the 2.0L I4 and 2.5L V6 sets are different.
Is Your Avenger Showing Signs of Head Gasket Failure?
Cylinder head bolts are almost never replaced on their own. They are replaced as a required part of a head gasket job. If you're shopping for head bolts, you are likely dealing with a blown head gasket. Symptoms are serious and should not be ignored.
- Engine Overheating: This is the most common sign. A failed gasket can let hot combustion gases into the cooling system, overwhelming it.
- White Smoke from Exhaust: Sweet-smelling white smoke indicates coolant is burning in the combustion chambers.
- Milky Engine Oil: If you check your dipstick or oil cap and see a milky, frothy substance that looks like a milkshake, coolant is mixing with your oil. This is catastrophic for engine bearings.
- Coolant Loss with No Visible Leak: The engine might be consuming coolant internally. You might also see bubbles in the radiator or coolant overflow tank.
- Loss of Power: If the gasket has failed between two cylinders, compression will be lost, causing rough running and a noticeable drop in power.
Do Not Drive Your Vehicle
If you have symptoms of a blown head gasket, do not drive the car. Continuing to run the engine can lead to warped cylinder heads, damaged bearings, and complete engine failure, turning an expensive repair into a terminal one.
Choosing the Right Aftermarket Head Bolts
For the 1995-2001 Avenger, you have a few aftermarket choices. Since these are one-time-use bolts, quality and proper installation are everything. OEM bolts may be difficult to source or discontinued for a vehicle of this age.
Tier 1: Established OE-Equivalent Brands
- Victor Gaskets (Victor Reinz): This is a well-known and respected brand in the automotive world for gaskets and sealing components. They are generally considered a reliable, high-quality choice for replacement parts that meet or exceed original equipment specifications. No widespread issues were found regarding their head bolts.
Tier 2: Economy Brands

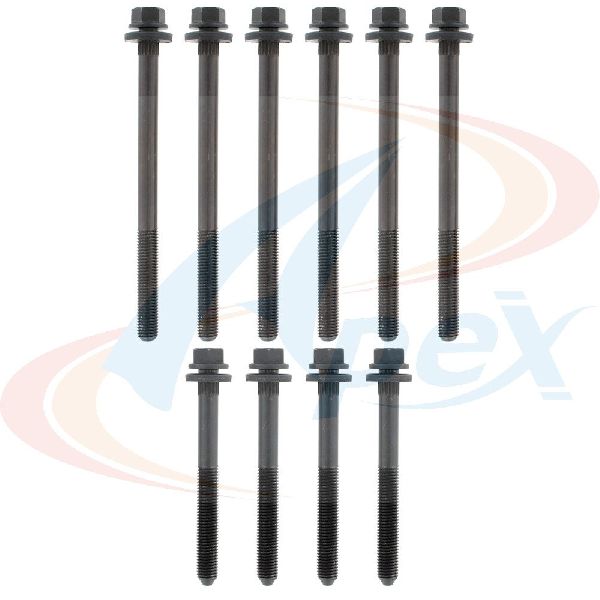

- Apex: Apex is marketed as an OE replacement brand and is often available at a lower price point. However, owner experiences in forums for other high-stress engine applications have reported instances of Apex head studs loosening over time, leading to failure. While not specific to the Dodge Avenger, this is a data point to consider when weighing cost against potential risk.
Always Replace, Never Reuse
The head bolts on your Avenger are Torque-to-Yield (TTY) and are designed for single use only. Reusing them will result in improper clamping force, almost guaranteeing a repeat head gasket failure. The cost of a new bolt set is tiny compared to the labor for the job, so this is not a corner you should ever cut.
New Aftermarket Head Bolt Set Cost for 1995-2001 Dodge Avenger
| Part | Price Range |
|---|---|
| Engine Cylinder Head Bolt Set | $29.32 - $73.62 |
Pricing is for the part set only and does not include labor or other necessary parts like the head gasket set.
Frequently Asked Questions
Do I really have to replace the head bolts when changing the head gasket?
Yes, absolutely. The 1995-2001 Dodge Avenger uses Torque-to-Yield (TTY) bolts. They are permanently stretched during their first installation. Reusing them will lead to incorrect clamping force and another blown head gasket.
What is a Torque-to-Yield (TTY) bolt?
It's a special type of bolt designed to be tightened to a specific torque setting, and then turned an additional number of degrees. This process stretches the bolt into its 'yield' or elastic zone, ensuring a very consistent clamping force, which is critical for sealing a head gasket properly.
Can I install these bolts myself?
This is an advanced repair. Besides the complexity of disassembling the engine, TTY bolts require a specific multi-step tightening sequence using a torque wrench and a torque angle gauge to measure the degrees of rotation. Incorrect tightening will cause the repair to fail. This job is best left to experienced mechanics.
Are the head bolts for the 2.0L 4-cylinder and 2.5L V6 the same?
No, they are different. The 2.0L (engine code 420A) uses a set of 10 bolts. The 2.5L V6 has two cylinder heads and will require a different quantity and likely different length bolts. Ensure you are buying the correct set for your specific engine.
Technical Specifications
Bolt Type: Torque-to-Yield (TTY). 2.0L 420A Engine Quantity: 10. 2.5L V6 Engine Quantity: Varies (two heads). Cross Reference (2.0L Kits): ES72166, HB5020.
