A Practical Guide to Universal Joints for the 1995-2001 Dodge Dakota
Address driveshaft clunks and vibrations by choosing the right replacement U-joint for your truck.
- Address U-joint symptoms like clunking or vibrations immediately to prevent a dangerous driveshaft failure.
- Your Dakota may have 2, 3, or 4 U-joints; inspect your specific truck to confirm the quantity and sizes needed before ordering.
- Choose between sealed (OEM-style, low-maintenance) and greaseable (require regular service) U-joints based on your maintenance preference.
- For durability, especially on 4x4 or hardworking trucks, investing in premium brands like Dana Spicer or Moog is highly recommended.
Is Your Dakota's U-Joint Failing?
A worn-out U-joint is more than just an annoyance; it's a serious safety issue. If a U-joint fails completely while you're driving, the driveshaft can detach from the vehicle. This can cause a loss of control, significant damage to the undercarriage, and leave you stranded. Listen for the common warning signs and address them before they become a critical failure.
Common Failure Symptoms
- Clunking Noise: A distinct "clunk" or ringing sound when you shift from Park into Drive or Reverse is a classic sign of a worn U-joint with excessive play.
- Vibration at Speed: A vibration that you can feel throughout the truck, which often gets worse as your speed increases, points to a U-joint that is binding or has lost its balance.
- Squeaking Sound: A rhythmic squeaking that matches your wheel speed, especially at low speeds (5-10 mph), often means the U-joint has lost its internal lubrication and the metal bearings are grinding against each other. 🎬 Watch: How to diagnose and replace a failing U-joint
Recall Information
While there are no specific recalls for universal joints on the 1995-2001 Dodge Dakota, there was a significant recall (NHTSA Campaign #04V-596) for upper ball joints on 2000-2003 4x4 models. Additionally, a later recall for 2009-2010 Dakotas involved a loose axle pinion nut that could cause driveshaft separation. Always check for any open recalls on your specific vehicle.
Choosing the Right Aftermarket U-Joint
For a vehicle of this age, aftermarket U-joints are the most common and practical choice. Original factory parts were high quality, but finding new OEM stock can be difficult and expensive. High-quality aftermarket parts from reputable brands often meet or exceed original specifications. The main choice you'll face is between a sealed, non-greaseable joint (like the original) and a greaseable one.
Sealed vs. Greaseable U-Joints
- Sealed (Non-Greaseable): These are lubricated for life from the factory. Many experts and OEMs prefer them because they have stronger seals and a solid-body cross, which makes them stronger and less prone to contamination. Brands like Dana Spicer are known for their high-quality sealed joints.
- Greaseable: These have a zerk fitting that allows you to add new grease periodically. This can be beneficial for trucks used in harsh conditions (off-road, towing) as it allows you to flush out water and contaminants. However, they require regular maintenance, and the seals are designed to purge old grease, which can make them more susceptible to drying out if neglected. Moog is a popular brand for greaseable U-joints.
Pro Tip: If you choose greaseable U-joints, be diligent about greasing them at every oil change. If you prefer a low-maintenance option, a high-quality sealed joint from a brand like Spicer is an excellent choice that often lasts longer without intervention.
🎬 See this step-by-step U-joint replacement walkthrough for DakotasAftermarket Brand Tiers for Your Dakota
Navigating aftermarket brands can be confusing. Here’s a breakdown based on general reputation among mechanics and truck owners:
- Premium / OEM-Grade (Best): Dana Spicer is widely considered the gold standard, as they are an original equipment manufacturer for many trucks. Their non-greaseable joints are often recommended for their strength and longevity. Yukon Gear & Axle is known for heavy-duty drivetrain components and is another top-tier choice.
- Quality Aftermarket (Better): Moog and SKF are well-respected brands. Moog is famous for its "Problem Solver" parts, often featuring greaseable fittings and strong construction. SKF is a leader in bearing technology, and their U-joints are also considered reliable.
- Standard / Value (Good): GMB and Crown Automotive offer solid, budget-friendly replacements that are a good fit for a stock daily driver. They provide a reliable alternative to more expensive brands for standard use.
Understanding Replacement Costs
The cost to replace your U-joints will depend on the parts you choose and whether you do the work yourself. The job is possible for a skilled DIYer, but it often requires a bench vise and a press or specialized tool to remove the old joints and install the new ones without damaging the driveshaft.
🎬 Watch: The easy way to change universal joints yourself| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Single) | $17 - $95 |
| Shop Labor (Per Joint) | $100 - $200 |
| Total Professional Replacement (Per Joint) | $120 - $250+ |
Frequently Asked Questions (FAQ)
How many U-joints does my 1995-2001 Dakota have?
It depends on your truck's configuration. A 2WD model typically has two on the rear driveshaft. A 4WD model will have those two, plus one or two more on the front driveshaft. Some long-bed models may have a two-piece rear driveshaft with a third U-joint and a center support bearing. The only way to be certain is to inspect your vehicle.
Can I replace just one bad U-joint?
Yes, but it's often recommended to replace them in pairs (e.g., both on the rear driveshaft). If one has failed due to age and mileage, the other is likely not far behind. Replacing them all at once saves you from doing the same job again in the near future.
Do I need to balance my driveshaft after replacing the U-joints?
If the job is done correctly and you haven't damaged or bent the driveshaft, balancing is not usually required. However, if you still have a vibration after the replacement, the driveshaft balance may be off and should be checked by a professional driveline shop.
What is the most common mistake when ordering?
The most common mistake is ordering the wrong size. Different positions (front axle, rear axle, transmission side) and different driveshafts (front vs. rear) can use different size U-joints. It is highly recommended to remove the old U-joint and measure it or take it to the parts store to match it up precisely before purchasing a replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5016382AA GR016382AB GR015694AB 4720822

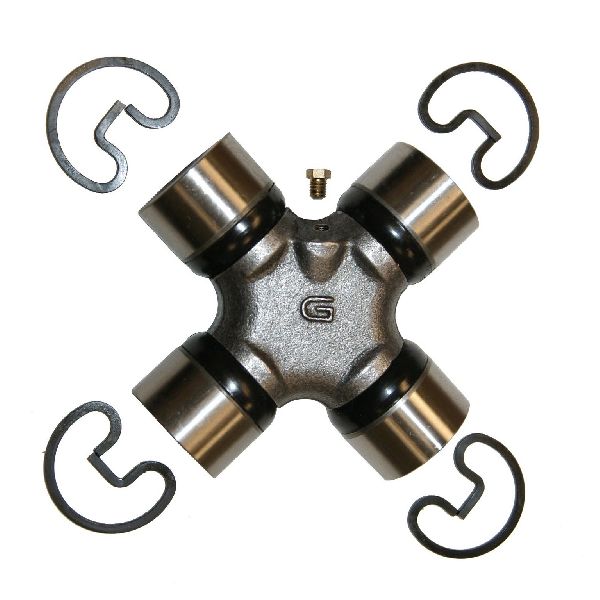

Common U-joint series for this application are 1310 and 1330. Bearing cap diameters are typically 1.062" or 1-1/16". It is critical to measure your old parts, as different drivetrain combinations used different sizes.
