A Mechanic's Guide to the 1995-2001 Nissan Maxima Intake Manifold Gasket Set
Address rough idles, vacuum leaks, and poor performance by understanding and replacing your Maxima's intake manifold gaskets.
- A failing intake gasket on a 1995-2001 Maxima typically causes vacuum leaks, leading to a rough idle, hissing noises, and a P0171 check engine code.
- While replacing the gaskets, it is highly recommended to also replace the valve cover gaskets and clean the throttle body and EGR passages.
- Use a quality aftermarket brand like Fel-Pro or Beck Arnley for a durable repair; the small extra cost is worth it given the labor involved.
- Always use a torque wrench and follow the factory-specified tightening sequence to ensure a proper, leak-free seal.
Is Your Maxima Running Rough? It Could Be the Intake Gasket.
If your 1995-2001 Nissan Maxima is experiencing a rough idle, hesitation, or a mysterious Check Engine Light, a failing intake manifold gasket could be the culprit. These gaskets are made of durable materials, but after decades of heat cycles, they can become hard, brittle, and cracked. This allows unmetered air to leak into the engine, a condition known as a vacuum leak, which can cause a variety of performance issues.
Symptoms of a Failing Intake Manifold Gasket
A bad intake manifold gasket can manifest in several ways. The most common signs point to a vacuum leak:
- Rough or High Idle: The engine may vibrate or idle at higher-than-normal RPMs as the computer tries to compensate for the extra air.
- Hissing Noise: You might hear a distinct hissing or whistling sound coming from the engine bay, which is the sound of air being sucked through a crack in the gasket.
- Check Engine Light: A vacuum leak will often trigger a Check Engine Light with codes like P0171 (System Too Lean) or P0300 (Random Misfire).
- Poor Engine Performance: The car may hesitate during acceleration, lose power, or have reduced fuel economy.
- Coolant Leaks: Since coolant passes through the intake manifold on the VQ30DE engine, you might notice coolant dripping onto the engine block or the ground. In severe cases, this can lead to overheating.
Known Issues & Recalls
There are no specific recalls or Technical Service Bulletins (TSBs) from Nissan or the NHTSA related to widespread failure of the intake manifold gaskets on the 1995-2001 Maxima. Failures are typically due to the age and mileage of the vehicle rather than a specific design flaw.
Choosing the Right Aftermarket Gasket Set
When shopping for a replacement, you'll find several aftermarket brands. For a critical seal like this, quality matters more than saving a few dollars. Here’s a breakdown of common brand tiers:
- Premium Aftermarket (Fel-Pro, Beck Arnley, Reinz): These brands are highly regarded by professional mechanics and DIYers. Fel-Pro is often the go-to choice, known for high-quality materials and designs that are specifically engineered for the repair environment, often improving on the original factory design. Beck Arnley frequently sources its parts from the original equipment manufacturers in Japan, so you may get an OEM-quality part in their box. Victor Reinz is another OEM supplier with a strong reputation for quality sealing products.
- Standard/Economy Aftermarket (Apex): Brands like Apex offer a more budget-friendly option. While functional, they may not have the same longevity or advanced material technology as premium brands. For a labor-intensive job like this, investing in a premium gasket is often recommended to avoid having to do the job twice.
Pro Tip: What Else to Replace

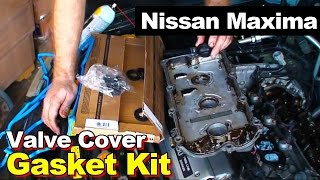

Since replacing the intake manifold gaskets requires significant disassembly, it's the perfect time to address other common maintenance items in the same area. Consider replacing the valve cover gaskets, especially the rear one, which is difficult to access otherwise and is a common source of oil leaks. 🎬 See how to replace the rear valve cover gasket while disassembled. It is also an excellent opportunity to clean the throttle body, Idle Air Control (IAC) valve, and EGR passages, which can get clogged with carbon over time.
Cost to Replace 1995-2001 Nissan Maxima Intake Manifold Gaskets
The total cost will depend on whether you do the work yourself or hire a professional. The parts themselves are not expensive, but the labor can be several hours.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $20 - $60 |
| New OEM Gasket Set | $45 - $70 |
| Shop Labor | $300 - $500 |
| Total Professional Replacement | $320 - $560 |
Frequently Asked Questions (FAQ)
Is replacing the intake manifold gasket a DIY job?
For an experienced DIY mechanic, this job is very feasible. It requires basic hand tools, a torque wrench, and patience. The process involves removing the air intake, throttle body, and various electrical connectors and vacuum hoses. If you are not comfortable with this level of disassembly, it is best to leave it to a professional.
🎬 Watch this step-by-step guide on removing the intake manifold.Do I need to use sealant on the new gaskets?
Generally, modern rubber or silicone gaskets are designed to be installed dry. However, the factory service manual may specify applying a small amount of RTV sealant at specific points, such as where the timing cover meets the cylinder head. Always follow the instructions included with your gasket set or consult a service manual.
Can I reuse my old intake manifold gaskets?
No. Never reuse intake manifold gaskets. They are single-use parts that crush and conform to the sealing surfaces. Once removed, they will not provide a reliable seal again.
What are the torque specs for the intake manifold bolts?
Proper torque and tightening sequence are critical to ensure the gasket seals correctly and to avoid damaging the manifold. These specifications can be found in a Nissan factory service manual for your specific year. It is essential to use a torque wrench and follow the specified pattern, which is typically a spiral sequence starting from the center and working outwards.

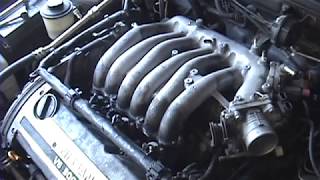

🎬 Watch a full walkthrough of the upper intake manifold replacement.Helpful Videos
Technical Specifications

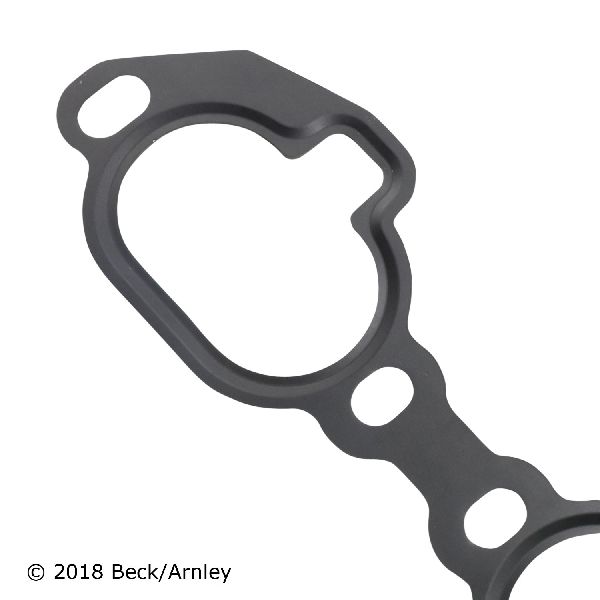

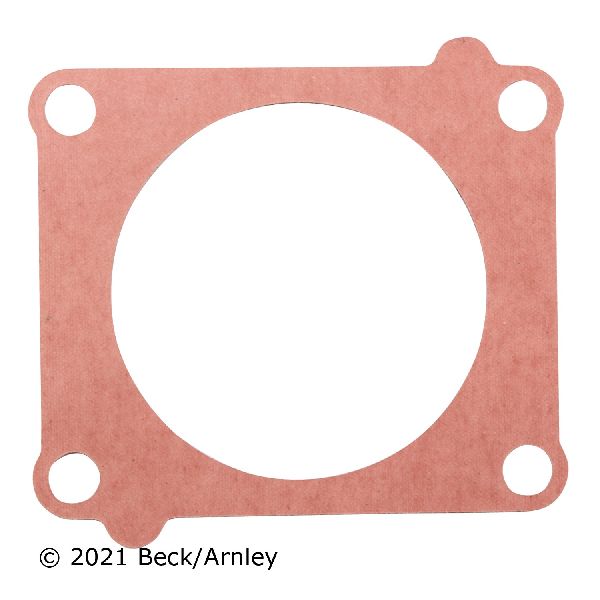

OEM Part Numbers: 14035-38U01 14035-31U01
Set includes upper (plenum) and lower intake manifold gaskets for the Nissan VQ30DE 3.0L V6 engine.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
