A Practical Guide to the 1995-2001 Nissan Sentra Distributor Cap
If your Sentra is running rough, misfiring, or hard to start, your distributor cap could be the culprit.
- A bad distributor cap is a very common cause of rough running, misfires, and starting problems on the 1995-2001 Sentra.
- Always replace the distributor rotor at the same time as the cap for a complete and lasting repair.
- This is an easy DIY job; just be sure to transfer spark plug wires one-by-one to maintain the correct firing order.
- Quality aftermarket brands like Standard Ignition are a reliable and cost-effective alternative to OEM parts for this vehicle.
Is Your Sentra's Distributor Cap Failing?
A distributor cap won't last forever. The plastic housing can develop tiny cracks from heat and vibration, and the metal terminals inside can corrode or get coated with carbon. When this happens, the spark can't get to the plugs reliably, leading to several common engine problems. Paying attention to these signs can help you diagnose a bad cap before it leaves you stranded.
Symptoms of a Bad Distributor Cap
A failing distributor cap on a Sentra will make itself known through poor engine performance. Here’s what to look and listen for:
- Rough Idle and Misfiring: The engine may shake, stutter, or run unevenly, especially when you're stopped. This is often the most common symptom.
- Trouble Starting: Your Sentra might crank for a long time before it starts, or in severe cases, it may not start at all.
- Engine Stalling: The engine can shut off unexpectedly, sometimes with a backfire from the exhaust.
- Hesitation or Lack of Power: You might feel a stutter or a lack of power when you accelerate.

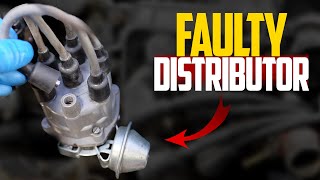

- Check Engine Light: A consistent misfire will trigger the check engine light. A common code associated with this is P0300 (Random/Multiple Cylinder Misfire). 🎬 Watch: 6 signs of a bad distributor and diagnosis tips
A Note on Diagnosis
While the cap and rotor are common failure points, the entire distributor assembly on these Sentras can cause issues. The internal ignition coil and camshaft position sensor (sometimes called a crank angle sensor) can also fail, producing similar symptoms. If a new cap and rotor don't solve your misfire, the problem may be with the distributor itself.
🎬 Watch: How to perform a full distributor replacementChoosing the Right Aftermarket Distributor Cap
You don't need to buy a part from the Nissan dealer to get your Sentra running right. Quality aftermarket brands offer excellent performance, often at a much lower price. The key is choosing a part made with quality materials.
Look for caps made from high-dielectric strength polyester resin, which resists cracking and carbon tracking. Terminals made from solid brass are superior to aluminum because they offer better conductivity and resist corrosion.
Aftermarket Brand Tiers
- Better (Good Quality): Brands like Standard Ignition (SMP) are well-respected and a trusted choice for professional technicians. They often use high-quality materials like glass-reinforced polyester and brass terminals.
- Good (Standard Quality): Walker Products is known for producing reliable parts that meet OE specifications for fit and function, offering a good balance of quality and price.
- Economy (Standard Quality): Facet is a European brand that offers a functional replacement part. While they market their parts as OEM quality, user reviews are generally average.
Always Replace the Rotor
Whenever you replace the distributor cap, you must also replace the distributor rotor. The rotor is the spinning part inside that directs the spark. It wears at the same rate as the cap and is very inexpensive. Replacing both at the same time ensures a complete repair.
🎬 See this walkthrough on installing a new rotor and capDistributor Cap Replacement Cost
Replacing the distributor cap and rotor is one of the more affordable repairs you can make. The parts are inexpensive, and labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Cap & Rotor | $18 - $38 |
| New OEM (Hitachi) Cap & Rotor | $50 - $90 |
| Shop Labor | $40 - $70 |
| Total DIY Cost | $18 - $38 |
| Total Shop Cost | $60 - $160 |
Frequently Asked Questions (FAQ)
Can I replace the distributor cap myself?
Yes, this is a very DIY-friendly job. It usually only requires a Phillips head screwdriver and about 15-30 minutes. The most important part is to transfer the spark plug wires from the old cap to the new one, one at a time, to keep the correct firing order. Mixing them up will cause the engine to run poorly or not at all.
Are there any recalls on the Sentra distributor cap?
No, there are no recalls or major Technical Service Bulletins (TSBs) from Nissan or the NHTSA specifically for the distributor cap on the 1995-2001 Sentra. However, a recall was issued for the crank position sensor on some 2001 models with the 1.8L engine, which can cause similar stalling symptoms.
How often should the distributor cap and rotor be replaced?
There is no strict replacement interval, but they are considered a maintenance item. It's a good practice to inspect them every 30,000 to 50,000 miles. A great time to replace the cap and rotor is when you are already replacing your spark plugs and wires.
What's the difference between caps with aluminum and brass terminals?
Brass terminals are better because they are more conductive and far more resistant to corrosion and electrical pitting than aluminum terminals. Over time, aluminum terminals can build up white corrosion that weakens the spark. Given the small price difference, a cap with brass terminals is always the better choice for longevity and performance.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22162-78A00 22162-0M300 22162-53J00 22162-G5710
The distributor cap for the GA16DE (1.6L) and SR20DE (2.0L) engines are different. Ensure you order the correct part for your engine. The OEM manufacturer was typically Hitachi.
