A/C Compressor Guide for the 1995-2002 Cadillac Eldorado
Everything you need to know before replacing the A/C compressor on your Northstar-powered Eldorado.
- A failed compressor is a common reason for no A/C in the 1995-2002 Eldorado, with symptoms like noise, leaks, or no cold air.
- You MUST replace the accumulator/drier and orifice tube with the compressor to prevent premature failure and to keep the warranty valid.
- If the old compressor failed internally (made grinding noises), the entire A/C system must be professionally flushed to remove metal debris.
- This is not a beginner DIY job; it requires specialized tools and professional evacuation/recharging of the refrigerant.
Is Your Eldorado's A/C Blowing Hot Air?
When the air conditioning in your 1995-2002 Cadillac Eldorado stops working, a failed A/C compressor is a common cause. This part lives a hard life under the hood and eventually wears out. Recognizing the signs of failure can help you diagnose the problem correctly.
Common Failure Symptoms
- No Cold Air: The most obvious symptom. The compressor clutch may not engage, or the compressor itself has failed internally and isn't building pressure.
- Loud Noises: A grinding or rattling sound from the front passenger side of the engine bay when you turn on the A/C points to failing internal bearings. 🎬 Listen to what a failing Cadillac compressor sounds like here. A high-pitched squeal could mean the compressor is seized, causing the belt to slip over a stuck pulley.
- Visible Leaks: The compressor has seals that can fail over time. You might see a greasy, dirty film on the compressor body, which is refrigerant oil leaking out.
- Clutch Issues: The compressor's outer pulley spins with the engine, but the compressor only turns on when the electromagnetic clutch engages. If this clutch is broken or the compressor cycles on and off too quickly, you won't get consistent cooling.
Critical Failure Warning: "Black Death"
If your compressor fails internally, it can send tiny metal shavings throughout the entire A/C system. This is known as "black death." If this happens, you MUST flush the entire system and replace more than just the compressor to prevent the new compressor from failing immediately.
Choosing the Right Aftermarket Compressor
For a vehicle of this age, a new aftermarket compressor is the most common and cost-effective choice. OEM parts can be expensive and hard to find. Here’s an honest look at the available brands.
Brand Quality Tiers

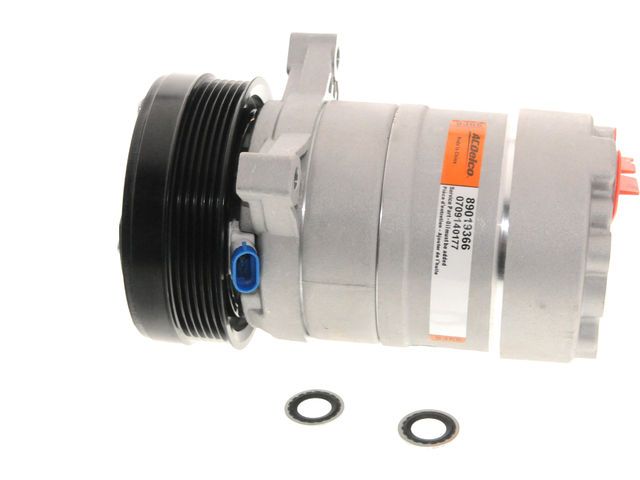

- Tier 1 (OEM-Equivalent Quality): ACDelco
ACDelco is GM's own parts brand. While not always made by the original manufacturer for the aftermarket, they generally adhere to OEM specifications. They are widely considered the most reliable choice for a GM vehicle, but you pay a bit more for the name and quality assurance. - Tier 2 (Reputable Aftermarket): Four Seasons

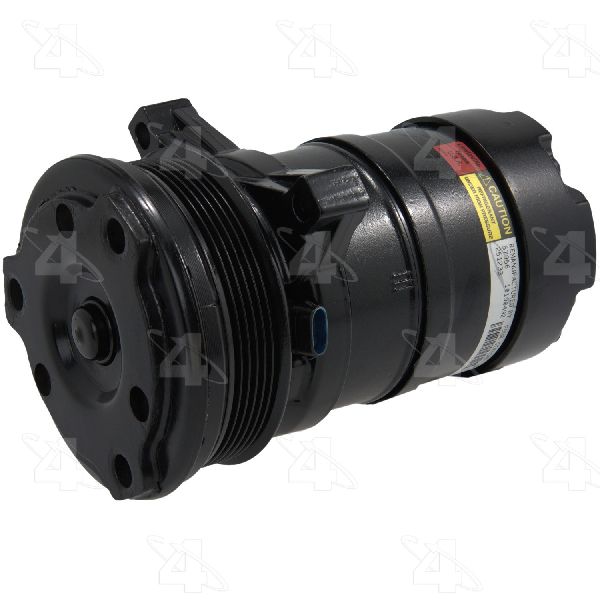

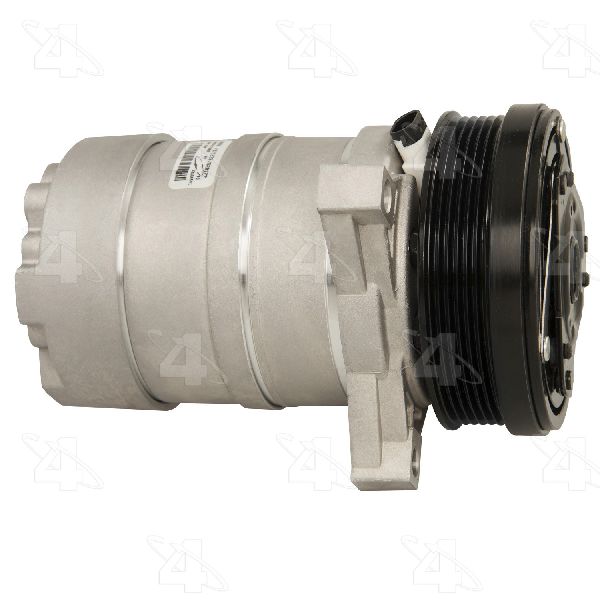

Four Seasons is one of the biggest names in aftermarket A/C parts. Quality can be hit-or-miss according to some mechanics and forum users, with some calling them 'Four Seizings'. However, many have used them with success. Proper installation, including a full system flush and replacing related parts, is key to longevity with any brand, but especially here. - Tier 3 (Value-Oriented): Global Parts (GPD)
GPD is often seen as a budget-friendly option. They frequently come in kits that include the necessary accumulator and orifice tube, which is a great value. While they may not have the long-standing reputation of the other two, they can be a good choice if budget is your main concern, provided the system is prepped correctly before installation.
Pro Tip: Always Replace These Parts with the Compressor
To ensure your new compressor lasts and to validate its warranty, you must also replace the A/C Accumulator/Drier and the Orifice Tube. The accumulator removes moisture, and the orifice tube meters refrigerant. Failing to replace them will contaminate your new compressor and cause it to fail quickly.
Cost of Replacing Your A/C Compressor
Here is a general breakdown of what you can expect to pay. Prices vary based on brand, your location, and the repair shop's labor rates.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New Aftermarket Compressor | $260 - $382 | This is the typical cost for a new part from brands like Four Seasons or GPD. |
| New OEM Compressor (ACDelco) | $400 - $750+ | Higher quality and price, sometimes sourced from a dealer. |
| Shop Labor | $250 - $600 | Includes system evacuation, installation, vacuum test, and recharge. |
| Total Professional Job | $510 - $1,350+ | Total estimated cost for parts and professional installation. |
Frequently Asked Questions
Can I replace just the compressor clutch?
While technically possible, it's often not worth it. The labor to remove the compressor to service the clutch is the same as replacing the whole unit. Furthermore, if the clutch failed, the compressor's internal parts are likely old and worn as well. A complete new compressor assembly is usually the better, more reliable repair.
Is this a good DIY job?
This is an advanced DIY project. While unbolting the compressor is straightforward for a skilled mechanic, access is tight through the passenger wheel well. 🎬 Watch this video to see the compressor replacement process. More importantly, you legally cannot vent refrigerant into the air. The job requires a professional evacuation of the system before you start and a vacuum pump and manifold gauges for the installation and recharge. For most owners, it's best to let a shop handle this.
Are there any recalls on the A/C compressor for my Eldorado?
There were no major recalls found specifically for the A/C compressor on the 1995-2002 models. However, a recall for the 1993 model year noted that the A/C clutch could rub against an oil cooler line, creating a fire risk. While this doesn't officially cover your year range, it's wise to check for proper clearance between the compressor and any nearby hoses after installation.
How do I check for A/C trouble codes on my Eldorado?
Your Eldorado has a powerful onboard diagnostic system. With the key on, you can press the 'OFF' and 'WARM' buttons on the climate control panel simultaneously. The system will enter a diagnostic mode and display any trouble codes on the screen. Codes related to the A/C system will typically start with a 'B'. 🎬 See how to retrieve and clear your Cadillac's diagnostic codes. This can help you pinpoint sensor or electrical issues before assuming the compressor is bad.
Helpful Videos
Technical Specifications
Compressor Type: HR6/HD6; Refrigerant Type: R134a; Oil Type: PAG Oil
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
