Essential Guide to the 1995-2002 Chrysler Neon Timing Belt and Water Pump
Everything you need to know before replacing the timing belt kit on your Neon's 2.0L engine.
- The 2.0L Neon engine is an interference engine; a broken timing belt will destroy the engine.
- Always replace the timing belt, tensioner, idler pulleys, and water pump together as a complete kit.
- High-quality aftermarket kits from Gates, Continental, or Dayco are trusted, reliable choices for this vehicle.
- This is not a beginner DIY job. Mistakes can be catastrophic, so professional installation is recommended for most owners.
A Critical Part for Your Neon's Health
The 2.0L SOHC and DOHC engines used in the 1995-2002 Chrysler Neon are known as interference engines. This is the most important thing to know about this job. In an interference engine, the valves and pistons occupy the same space in the cylinder, but at different times. If the timing belt breaks or slips, the camshaft stops spinning, leaving some valves open. The crankshaft, however, continues to turn, causing the pistons to slam into the open valves. This results in catastrophic, and very expensive, engine damage. For this reason, you must not wait for the belt to fail. It should be replaced as preventative maintenance, typically every 60,000 to 100,000 miles.
Symptoms of a Failing Timing Belt or Water Pump
A failing timing belt system often gives little to no warning before a complete failure. However, there are a few signs you might notice:
- Ticking or Rattling Noise: A faint ticking or rattling sound from the engine's timing cover area can indicate a loose or worn belt, or a failing tensioner or idler pulley.
- Coolant Leaks: Puddles of coolant under the front-center of the engine can point to a failing water pump seal. You might see drips or stains around the pump itself.
- Engine Overheating: If the water pump fails, it can no longer circulate coolant effectively, leading to the engine overheating.
- Rough Idle or Misfires: If the belt has stretched and slipped a tooth, the engine timing will be off, causing poor performance, a rough idle, or a check engine light.
Do Not Ignore Symptoms
Because your Neon has an interference engine, any symptom related to the timing belt system should be addressed immediately. Driving with a failing timing belt or water pump risks complete engine failure.

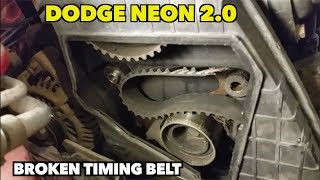

🎬 See what happens when a Neon timing belt actually breaks.Choosing the Right Aftermarket Kit

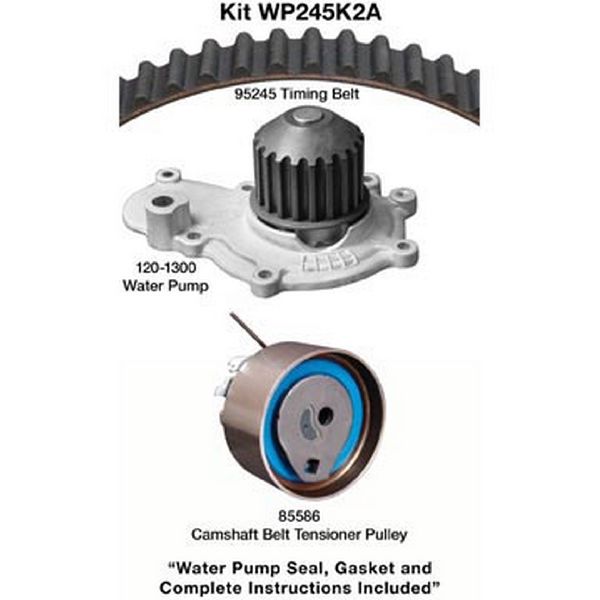

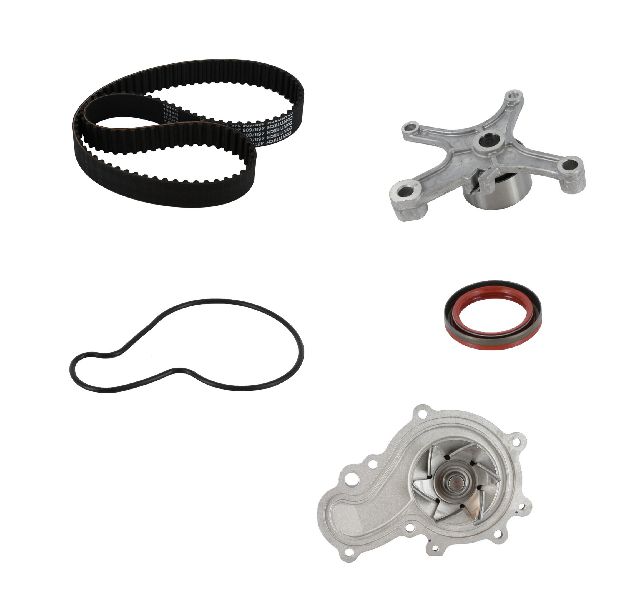

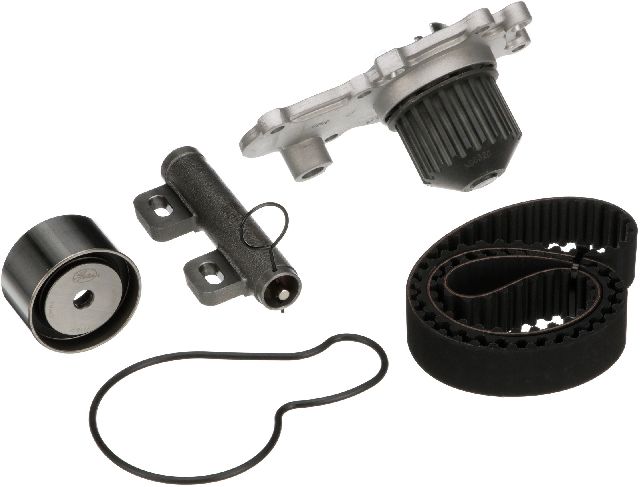

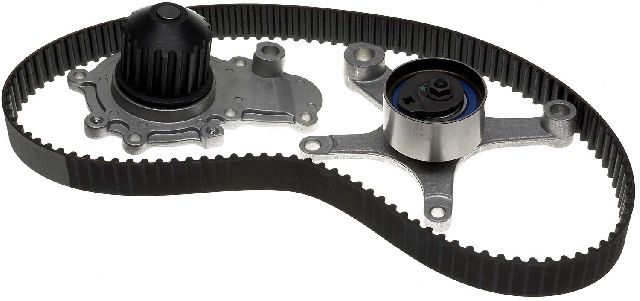

For a vehicle like the first-generation Neon, aftermarket timing belt kits from reputable brands offer excellent quality, often meeting or exceeding the original factory specifications. The key is to choose a complete kit from a trusted manufacturer. The three main brands you'll encounter are Gates, Dayco, and Continental.
- Gates: Often considered the gold standard by professional mechanics, Gates has a long history of supplying parts to automakers. Their PowerGrip™ kits are known for their durability and are a top-tier choice for reliability.
- Continental (ContiTech): As a major OE supplier, Continental is another excellent choice. Their belts use advanced rubber compounds designed to resist heat and stretching, ensuring a long service life.
- Dayco: Dayco provides a great balance of quality and cost, making them a dependable mid-tier option. They are also a major OE supplier and have been in the business for over a century.
Pro Tip: Hydraulic vs. Mechanical Tensioner
Early Neons used a hydraulic timing belt tensioner. Some aftermarket kits provide a mechanical tensioner as a conversion. These mechanical tensioner kits are often more affordable and are considered a reliable alternative by many in the Neon community. When ordering, make sure your kit matches the type of tensioner you plan to use.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Kit (Continental, Dayco, Gates) | $172 - $621 |
| Shop Labor | $400 - $800 |
| Total Professional Installation | $572 - $1,421 |
Frequently Asked Questions (FAQ)
Is the 1995-2002 Chrysler Neon engine an interference engine?
Yes, both the SOHC and DOHC 2.0L engines in this generation of Neon are interference engines. This means if the timing belt breaks, the pistons will hit the valves, causing severe engine damage. This is why on-time replacement is not optional.
Can I just replace the belt and not the water pump?
You should not. The water pump is driven by the timing belt, meaning the entire job has to be done to access it. Since the water pump has a similar service life to the belt, replacing only the belt means you will likely have to pay for the same expensive labor all over again when the old pump fails. Always replace the complete kit.

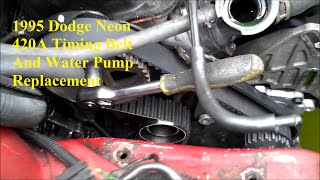

🎬 Watch this step-by-step timing belt and water pump replacement guide.How hard is it to replace the Neon timing belt myself?
This is an advanced DIY job. It requires specific tools, like a harmonic balancer puller, and a precise understanding of how to set and verify engine timing marks. Mistakes can lead to poor running or catastrophic engine damage. If you are not a very experienced home mechanic, this job is best left to a professional.
🎬 Learn how to check for bent valves after a failure.Were there any recalls on the Neon timing belt?
No. Searches of the NHTSA database show recalls for the 1995-2002 Neon for issues like seat belts, control arms, and fuel tanks, but none related to the timing belt, tensioner, or water pump.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4621844 TBK10245 4667606
Engine design: Interference. Belt drives: Camshaft(s) and water pump. Engine variants: 2.0L SOHC, 2.0L DOHC.
